E3X-DA-N

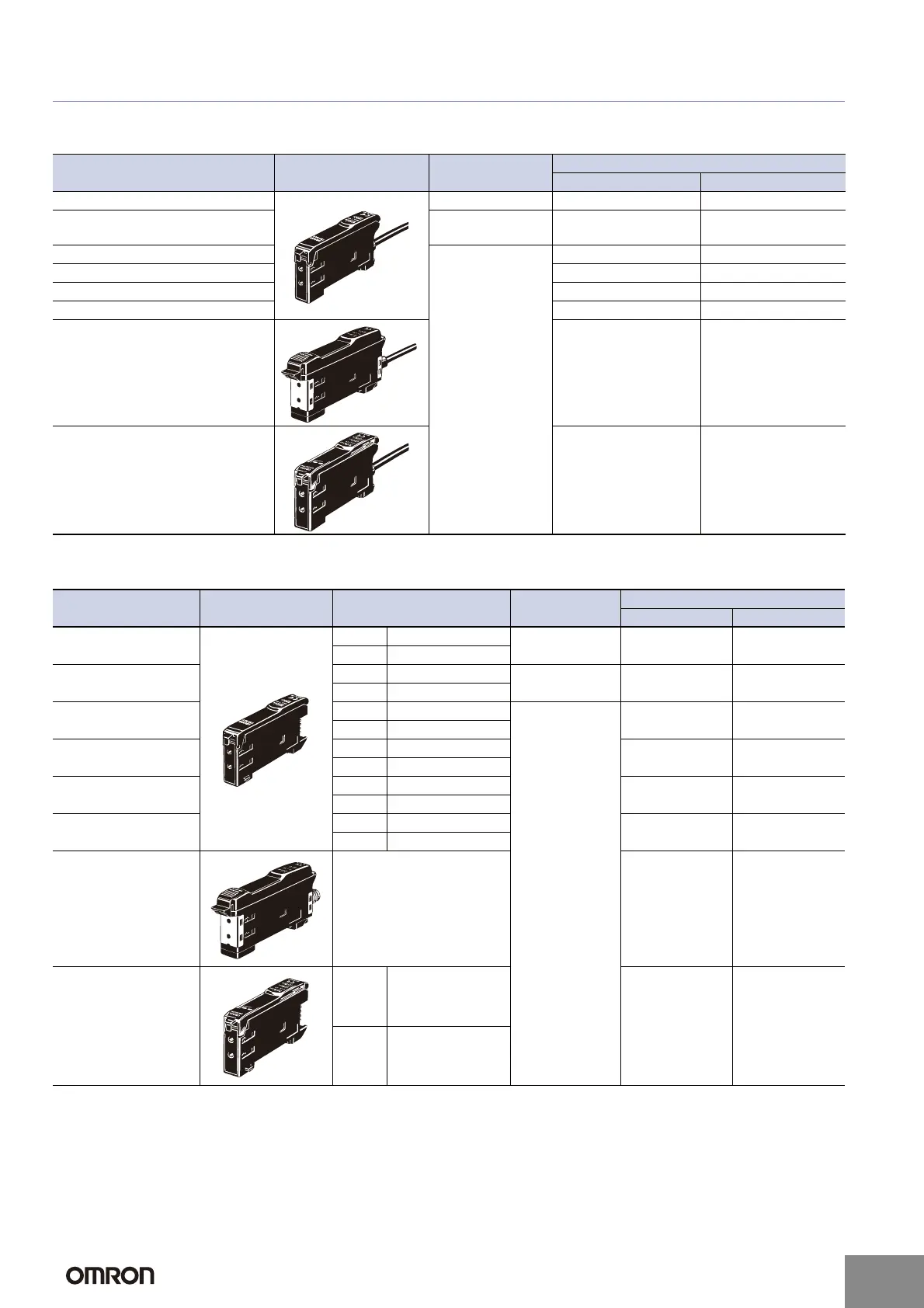

Ordering Information
Amplifiers
Pre-wired Amplifiers
* For details, refer to page 6.
Amplifiers with Standard Connectors
* For details, refer to page 6.
Type Appearance Control output
Model
NPN output PNP output
Standard models ON/OFF output E3X-DA11-N E3X-DA41-N
Monitor-output models
• ON/OFF output
• Monitor output
E3X-DA21-N E3X-DA51-N
Mark-detecting models (blue LED)
ON/OFF output
E3X-DAB11-N E3X-DAB41-N
Mark-detecting models (green LED) E3X-DAG11-N E3X-DAG41-N
Infrared models E3X-DAH11-N E3X-DAH41-N
Differential-output model* E3X-DA11D ---
Water-resistant models E3X-DA11V E3X-DA41V
Twin-output models E3X-DA11TW E3X-DA41TW
Type Appearance
Applicable Connector
(order separately)
Control output
Model
NPN output PNP output
Standard models
Master E3X-CN11
ON/OFF output E3X-DA6 E3X-DA8
Slave E3X-CN12
Monitor-output models
Master E3X-CN21
• ON/OFF output
• Monitor output
E3X-DA7 E3X-DA9
Slave E3X-CN22
Mark-detecting models
(Blue LED)
Master E3X-CN11
ON/OFF output
E3X-DAB6 E3X-DAB8
Slave E3X-CN12
Mark-detecting models
(Green LED)
Master E3X-CN11
E3X-DAG6 E3X-DAG8
Slave E3X-CN12
Infrared models
Master E3X-CN11
E3X-DAH6 E3X-DAH8
Slave E3X-CN12
Differential-output
model*
Master E3X-CN11
E3X-DA6D ---
Slave E3X-CN12
Water-resistant models
(M8 connector)
XS3F-M421-40@-A
XS3F-M422-40@-A
E3X-DA14V E3X-DA44V
Twin-output models
Master E3X-CN21
E3X-DA6TW E3X-DA8TW
Slave E3X-CN22
http://www.ia.omron.com/
3
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
