Omron E3X-DA-N series User Manual

E3X-DA-N

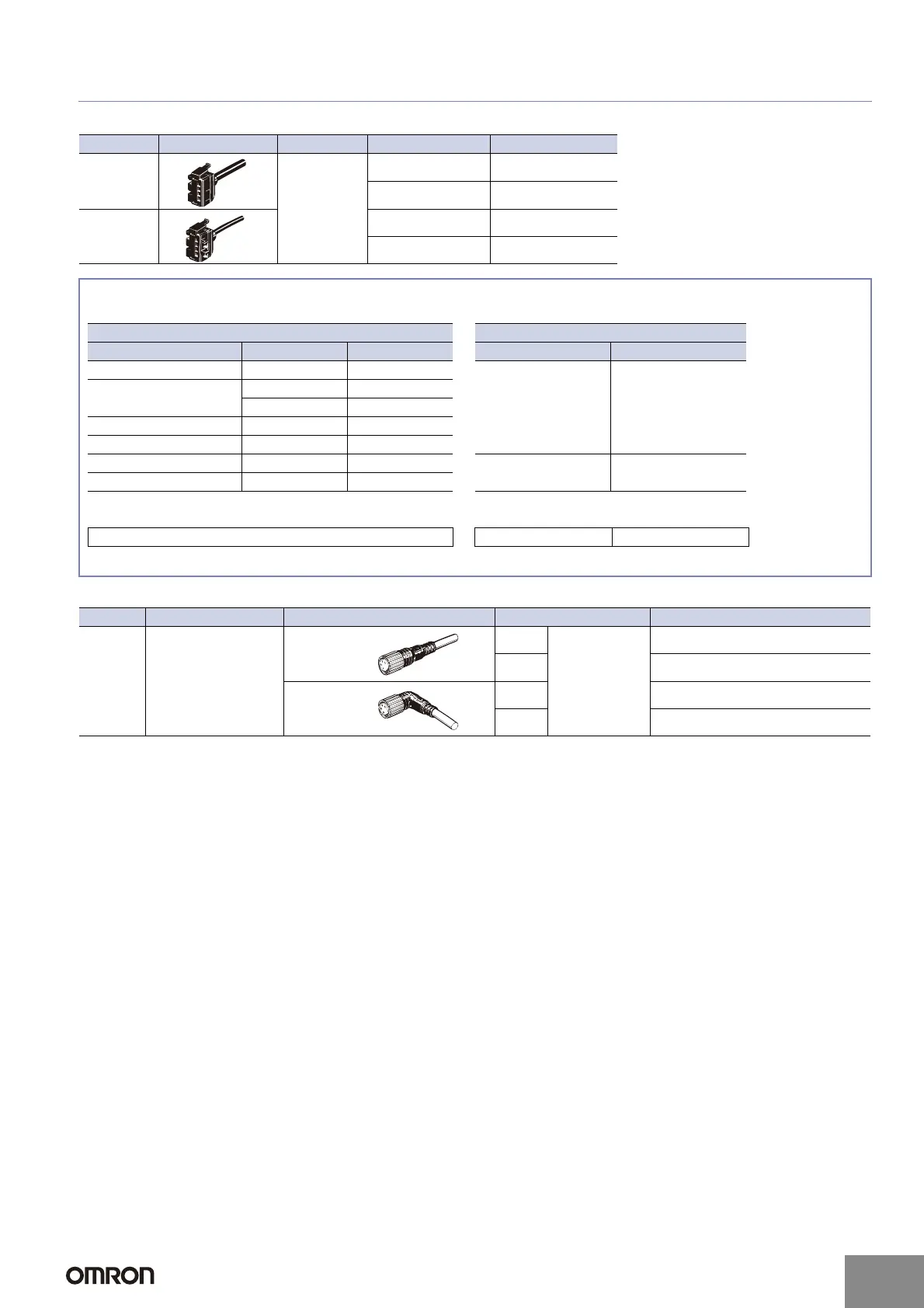

Amplifier Connectors (Order Separately) Note: Seal provided as accessory.
Sensor I/O Connectors (Order Separately)
Type Appearance Cable length No. of conductors Model
Master
Connector
2 m
3 E3X-CN11
4 E3X-CN21
Slave
Connector
1 E3X-CN12
2 E3X-CN22
Size Cable specifications Appearance Cable type Model
M8 Standard cable
2 m
4-wire
connection
XS3F-M421-402-A
5 m
XS3F-M421-405-A
2 m
XS3F-M422-402-A
5 m
XS3F-M422-405-A
Combining Amplifiers and Connectors (Basically Amplifiers and Connectors are sold separately.)
Refer to the following tables when placing an order.
When Using 5 Amplifiers
Amplifiers Applicable Connectors (Order Separately)
Type
NPN PNP
Master Connector Slave Connector
Standard models E3X-DA6 E3X-DA8
+
E3X-CN11 E3X-CN12
Mark-detecting models
E3X-DAB6 E3X-DAB8
E3X-DAG6 E3X-DAG8
Infrared models E3X-DAH6 E3X-DAH8
Differential-output model E3X-DA6D ---
Monitor-output models E3X-DA7 E3X-DA9
E3X-CN21 E3X-CN22
Twin-output models E3X-DA6TW E3X-DA8TW
Amplifiers (5 Units) + 1 Master Connector 4 Slave Connectors
Straight
connector
L-shaped
connector
http://www.ia.omron.com/
4
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
