E3X-DA-NE3X-DA-N
2

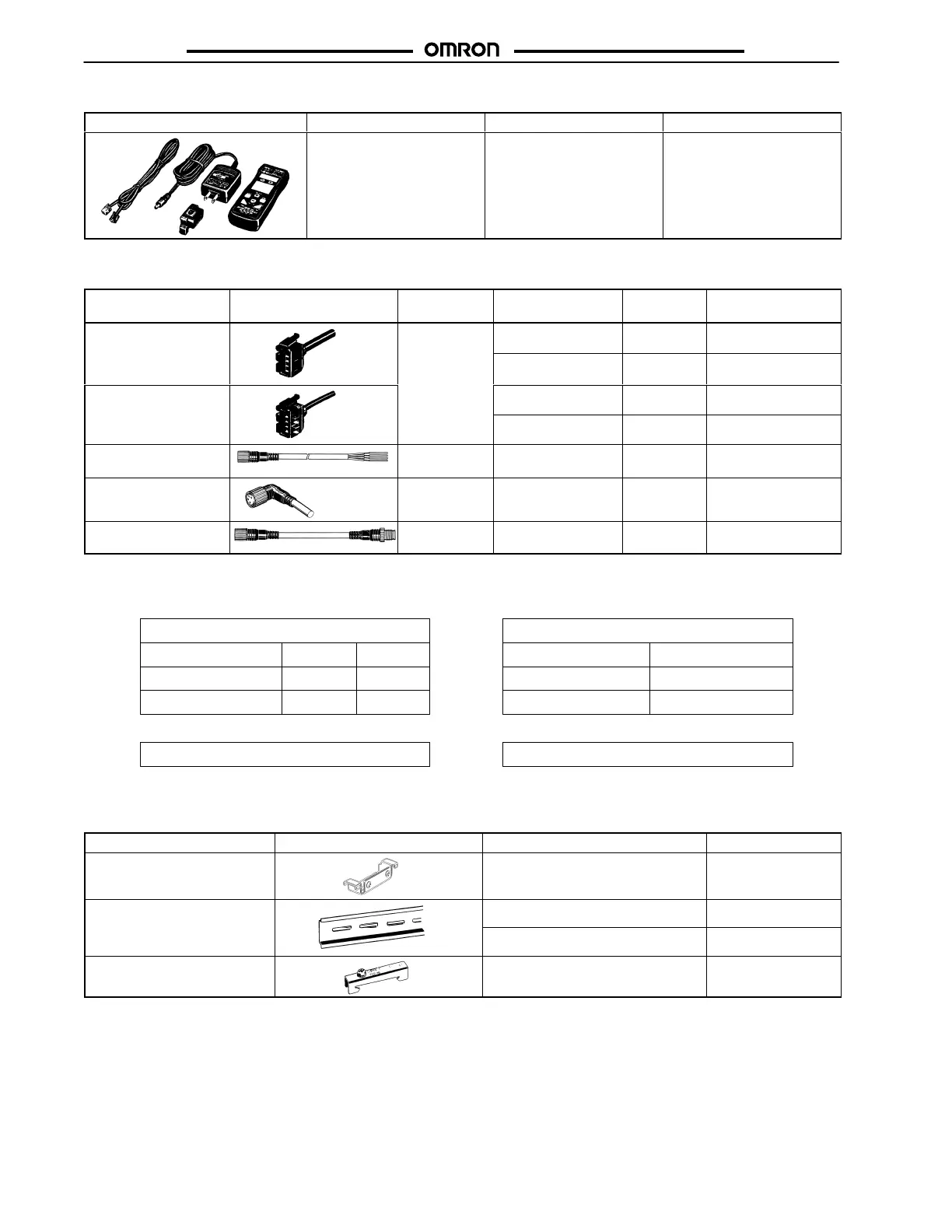

J REMOTE CONTROL PROGRAMMER
Appearance Power supply method Remarks Part number
Chargeable battery Head, cable, and AC adapter
are provided as accessories.
E3X-MC11
J CONNECTOR CABLES
Type Appearance Cable length Amplifier No. of
conductors
Part number
Master connector
(See Notes 1, 2)
2 m (6.56 ft)
E3X-DA6, E3X-DA8 3 E3X-CN11
(See Notes 1, 2)
E3X-DA7, E3X-DA9 4 E3X-CN21
Slave connector
(See Notes 1, 2)
E3X-DA6, E3X-DA8 1 E3X-CN12
(See Notes 1, 2)
E3X-DA7, E3X-DA9 2 E3X-CN22
Straight M8 connector,
single ended
2 m (6.56 ft) E3X-DA14V,
E3X-DA44V
4 XS3F-M421-402-A
Right angle M8
connector, single ended
2 m (6.56 ft) E3X-DA14V,
E3X-DA44V
4 XS3F-M422-402-A
Straight M8 connector,
double ended
2 m (6.56 ft) E3X-DA14V,
E3X-DA44V
4 XS3W-M421-402-R
Note: 1. When using five E3X-DA6/DA7/DA8/DA9 amplifiers ganged together, order one master and four slave connector cables. The
master connector cable distributes a power signal to all the ganged amplifiers; slave connector cables handle output signal
transmission only.
Amplifier Units
Type NPN PNP
Digital output models
Analog/digital output
E3X-DA6
E3X-DA7
E3X-DA9
E3X-DA8
+
Applicable Connector Cables
Master Connector Slave Connector
E3X-CN11 (3-wire)
E3X-CN21 (4-wire)
E3X-CN22 (2-wire)
E3X-CN12 (1-wire)
Amplifier Units (5 Units)
+
Master Connector (1), Slave Connector (4)
When Using 5 Sets
2. Stickers for Connectors are included as accessories.
J ACCESSORIES
Type Appearance Remarks Part number
Mounting bracket For surface mounting the sensor E39-L143
DIN rail track
50 cm (1.64 ft) length PFP-50N
1 m (3.28 ft) length PFP-100N
End plate For DIN track mounting of amplifiers PFP-M
J FIBER-OPTIC CABLES
The E3X-DA-N amplifiers use Omron’s E32-series fiber-optic cables. With a choice of over 80 sensing heads, you are sure to find one
that matches your application requirements. A selection of E32 cables and their respective sensing distances are at the end of this data
sheet. Order fiber-optic cables separately.
