Omron E3X-DA-N - Accessories (Order Separately); Mounting Bracket E39-L143; End Plate PFP-M; Installation

E3X-DA-N
E3X-DA-N
19

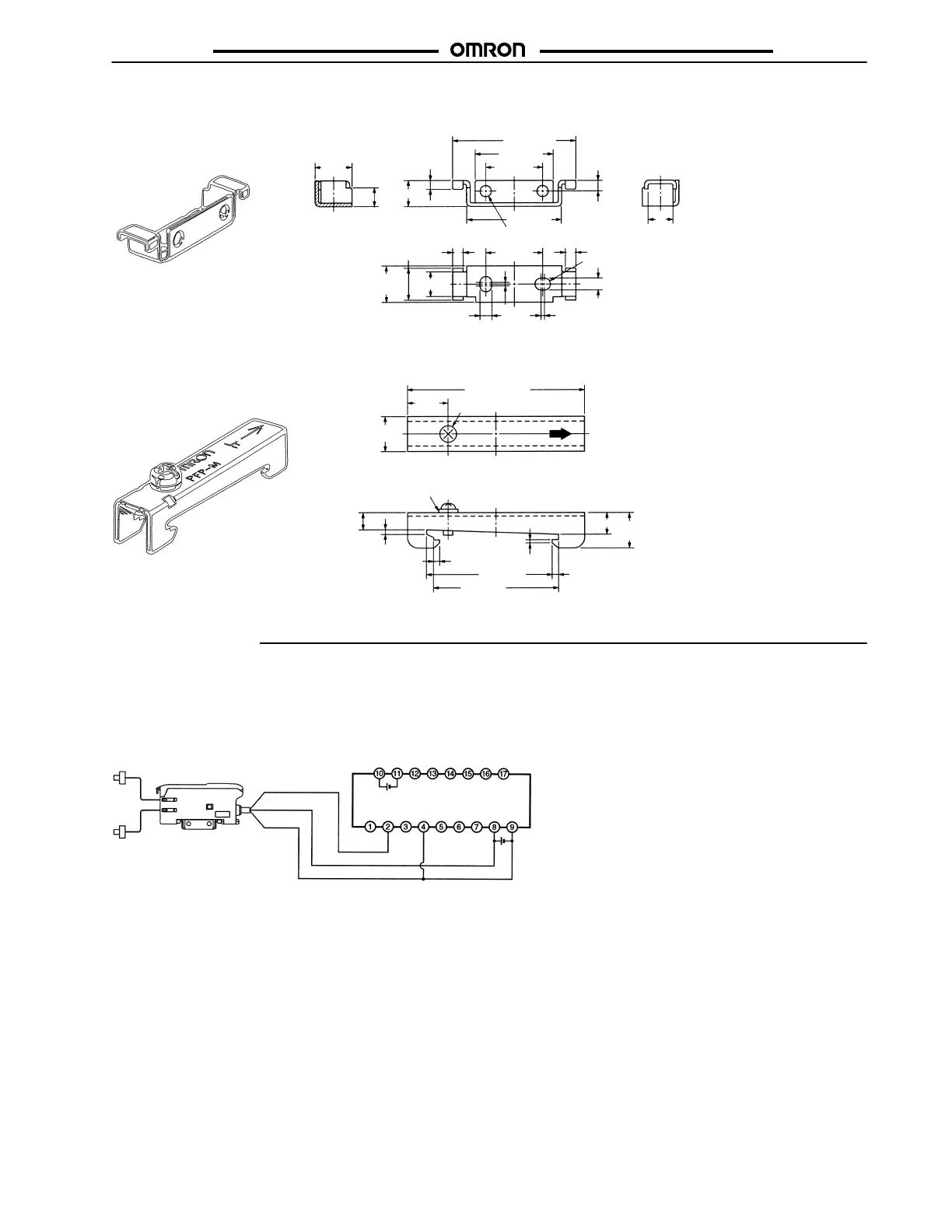

J ACCESSORIES (ORDER SEPARATELY)
Mounting Bracket E39-L143
10 (0.39) min.
Two, 3.2 dia.
Four, R1.7
10.3
(0.41)
5.3
(0.21)
7.3 (0.29)
2.5
(0.10)
7
(0.28)
3 (0.12)
34.8 (1.37)
22 (0.87)
16 (0.63)
26.8 (1.06)
16 (0.63)
3 (0.12)
3 (0.12)
3.4
(0.13)
3.4 (0.13)
1
(0.04)
10.3
(0.41)
7 (0.28)
End Plate PFP-M
M4 spring washer
M4×8, pan-head screw
10
(0.39)
50 (1.97)
11.5
(0.45)
4.8 (0.19)
1.3
(0.05)
1.8 (0.07)
35.5 (1.40)
1 (0.04)
35.3 (1.39)
6.2 (0.24)
10 (0.39)
1.8 (0.07)
Installation
J CONNECTION
Connection with K3NX-VD2j Process Meter
E3X-DA-N
Analog
output
Orange
+V
0 V Blue
Brown
12 VDC 80 mA*
12 to 24 VDC
K3NX-VD2j
*Use this service power supply for the Sensor with
reference to the power consumption of each
Sensor.
Note: 1. Various output boards are available for
the K3NX. Select an appropriate output
type per application requirements.
2. For details about the K3NX, refer to the
K3NX Data Sheet in Omron’s Digital
Panel Meters catalog or the K3NX
Operation Manual (N090).
3. This wiring is for the K3NX with DC power
supply specifications and the Analog/
Digital Sensor with DC power supply
specifications. Check respective power
supply specifications before wiring.
