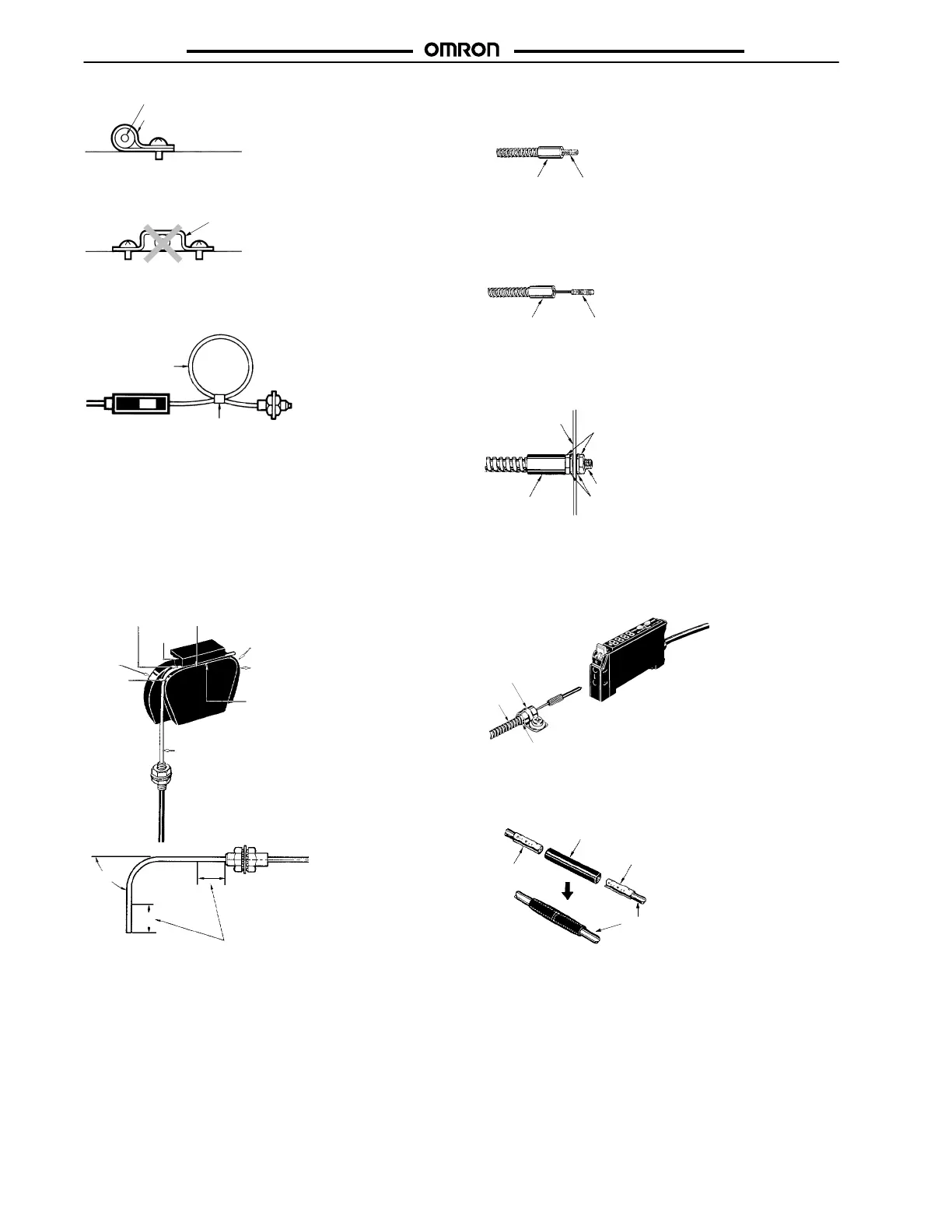

Fiber Unit
Nylon wireholder
Correct
Incorrect
Metal holder
Excessive vibration can break the fiber head. Use the following
method to prevent fiber head breakage.
A one-turn loop can
absorb vibrations.
Tape
Bending Radius
E39-F11 Sleeve Bender
The bending radius of the stainless steel tube should be as large
as possible. The smaller the bending radius becomes, the shorter
the sensing distance will be.
Insert the tip of the stainless steel tube to the Sleeve Bender and
bend the stainless steel tube slowly along the curve of the Sleeve
Bender (refer to the figure).
Fiber tip position mark
Do not bend here.
1.2-mm
dia. max.
1.3-mm
dia. min.
1.2-mm
dia. max.
R 12.5
R 7.5
R 10
R 5
Stainless
steel tube
90
o
max.
10 mm
10 mm
E39-F32j Protective Spiral Tubes
Insert a fiber to the protective spiral tube from the head connector
side (screwed) of the tube.
Fiber
Protective spiral
tube
Push the fiber into the protective spiral tube. The tube should be
straight so that the fiber is not twisted when inserted. Then turn
the end cap of the spiral tube.
Protective spiral
tube
Fiber
Secure the protective spiral tube on a suitable place with the
attached nut.
Mounting panel
Hexagon clamping nut
Fiber
Toothed washerProtective spiral
tube
Use the attached saddle to secure the end cap of the protective
spiral tube. To secure the protective spiral tube at a position
other than the end cap, apply tape to the tube so that the portion
becomes thicker in diameter.
Saddle
End cap
Tube
E39-F10 Fiber Connector
Mount the fiber connector as shown in the following illustrations
Splice
Retention clip
Retention clip
Fiber
Each fiber unit should be as close as possible before they are
connected.
Sensing distance will be reduced by approximately 25% when
fibers are connected.
Only 2.2-mm-dia. fibers can be connected.
