Using the Transfer Output Section 4-14

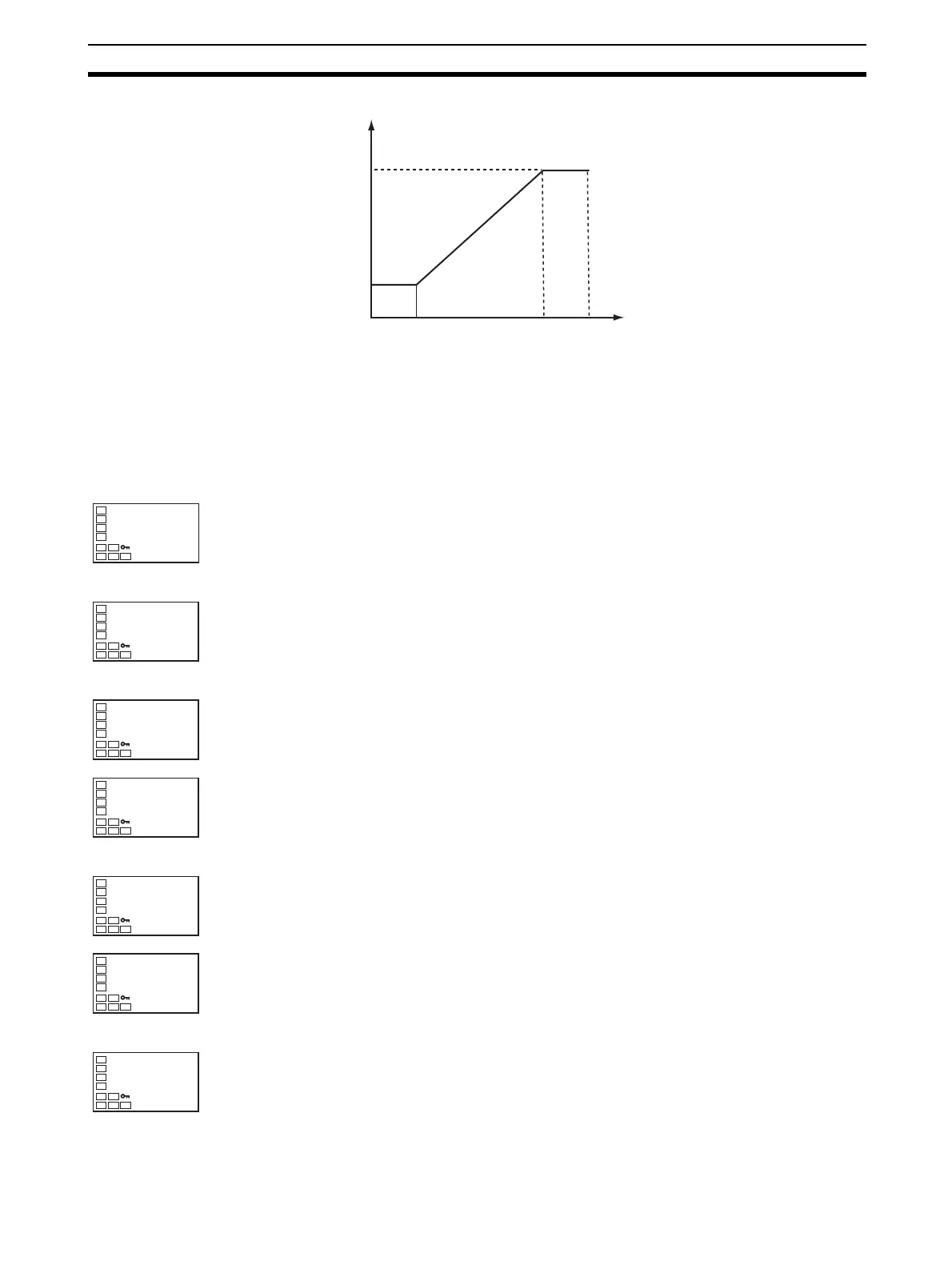

Operating Procedure The following procedure sets the transfer output for an SP range of −50 to
200.
100
90
100
20
4
Output current (mA)
MV (%)
Transfer output
lower limit
Transfer output
upper limit
(The above graph is for when the linear current output is set to 4 to 20 mA.)
Operation Level
Initial Setting Level
1. Press the O Key for at least three seconds to move from the operation
level to the initial setting level.
Initial Setting Level
2. Select the Transfer Output Type parameter by pressing the M Key.
3. Press the U Key to select sp (set point).
Initial Setting Level
4. Select the Transfer Output Upper Limit parameter by pressing the M Key.
5. Use the D Key to set the parameter to 200.0. The default is 1300.0.
Initial Setting Level
6. Select the Transfer Output Lower Limit parameter by pressing the M Key.
C
25.0
100.0
PV/SP
in-t
5
Input Type
tr-t
off
Transfer Output
Type
tr-t
sp
C
tr-h
1300.0
Transfer Output
Upper Limit
C
tr-h
200.0
C
tr-l
-200.0
Transfer Output
Lower Limit
