139
Using the Simple Program Function Section 4-16
• SP Mode
STRT and RSET can be executed for the simple program without re-
gard to the SP mode. SP mode changes are enabled while the simple
program is being executed. Timing will continue in the SP mode after
the change.
• RSP Input Errors
Timing will be continued even if an RSP input error occurs while the
simple program is being executed.
Note Timing will be performed according to the PV and remote SP at the
time of the RSP error.
• Switching RUN and STOP
Timing will continue if RUN and STOP are switched while the simple
program is being executed.
• Changing Banks
If the bank is changed while the simple program is being executed, the
time up to that point will be cleared and timing will start for the new
bank's set value.

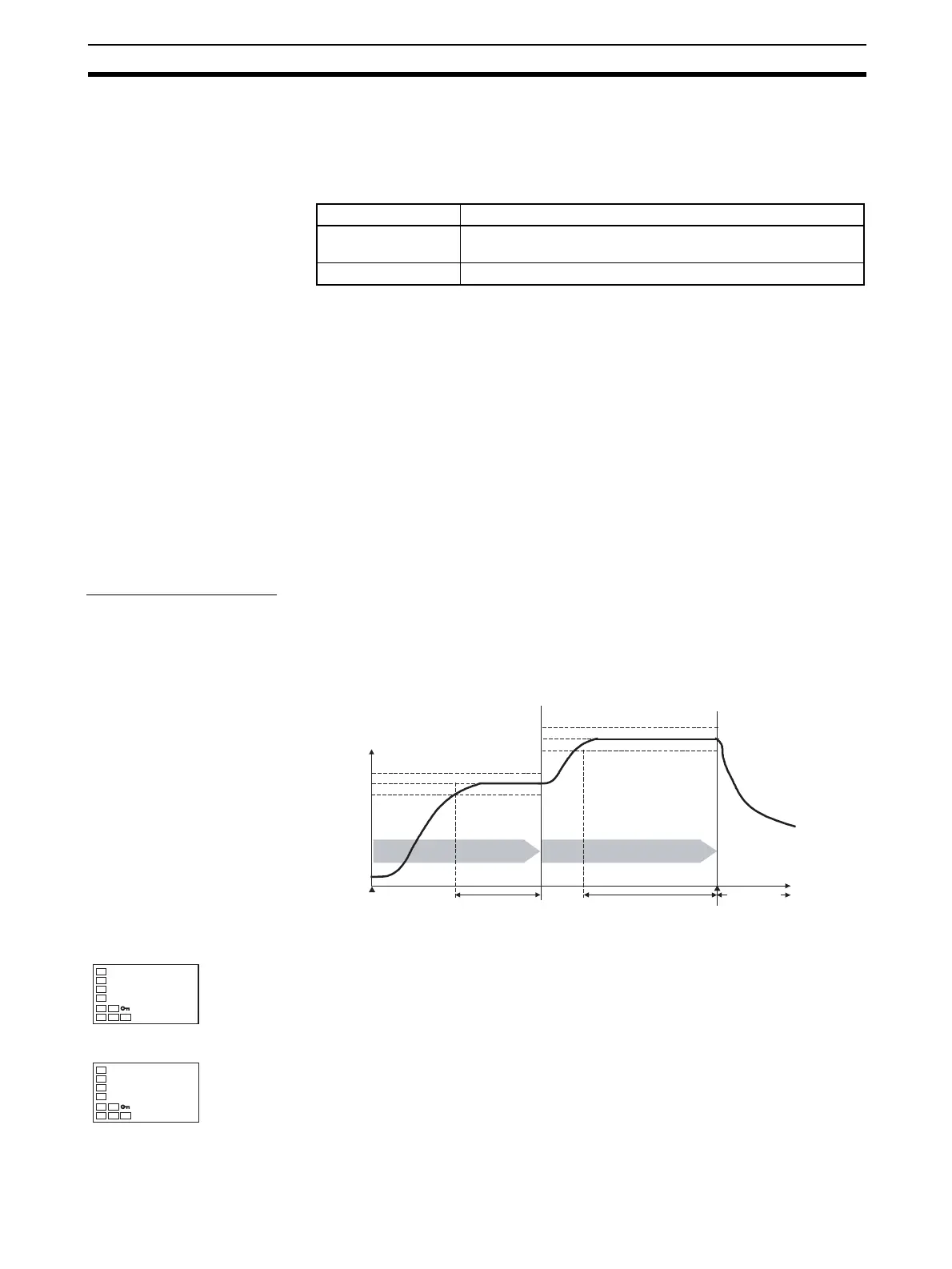

Operating Procedure Perform the following procedure to use the simple program function.
Program pattern: STOP
Valid program bank: 1
Bank 0 set point: 150°C, Soak time: 5 min, Wait band: 3°C
Bank 0 set point: 200°C, Soak time: 10 min, Wait band: 5°C
SP mode Description
LSP Timing is performed according to the SP of the bank being
executed.
RSP Timing is performed according to the remote SP.
Bank 0
SP0=150.0
RSET → STRT
PV
End display
End output
Wait band = 3
STOP
Soak time = 5 min
Soak time = 10 min
Wait band = 5
SP0=200.0
Bank 1
Operation Level
1. Press the O Key for at least three seconds to move from the operation
level to the initial setting level.
Initial Setting Level
2. Select the Program Pattern parameter by pressing the M Key.
C
25.0
100.0
PV/SP
in-t
5
Input Type
To Next Page
