Omron E5AN-H User Manual

273

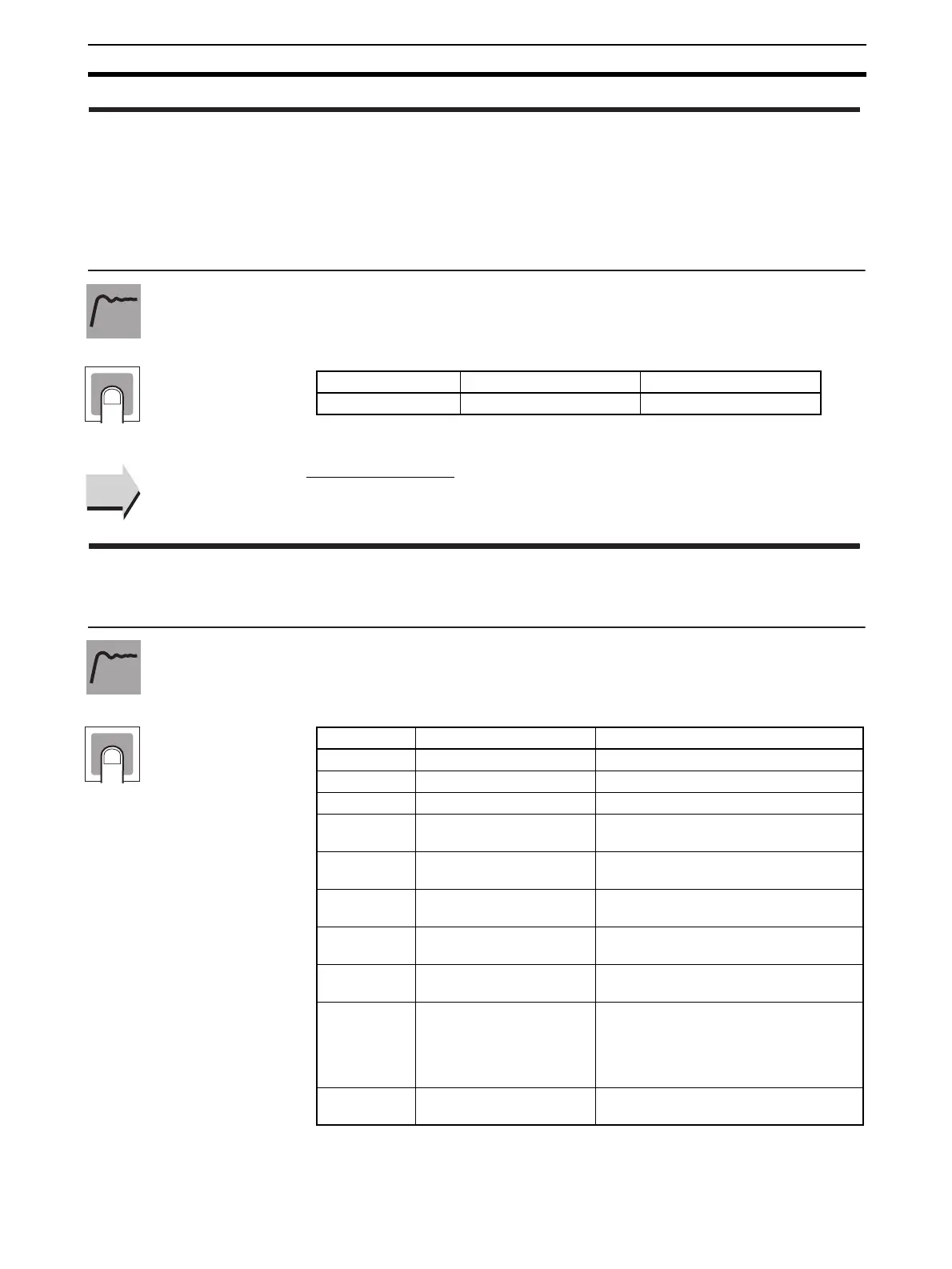

Advanced Function Setting Level Section 5-10
• This parameter sets the hysteresis for heater overcurrent detection.
■ Related Parameters
Heater overcurrent use (advanced function setting level): Page 272
• This parameter sets the function of the PF Key.
The default setting is A-M (Auto/Manual).
Note (1) When AT cancel is specified, it means that AT is cancelled regardless of
whether the AT currently being executed is 100% AT or 40% AT.
och Heater Overcurrent Hysteresis
Heater burnout, HS alarms, and
heater overcurrent detection must be
supported, and alarm 1 must be
assigned. The Heater Overcurrent
Use parameter must be set to ON,
and the Heater Overcurrent Latch
parameter must be set to OFF.
Setting range Unit Default
0.1 to 50.0 A 0.1
Function
Setting
See
See
pf PF Setting
The PF Key must be supported
(E5AN/EN-H).
Set value Setting Function
OFF: off Disabled Does not operate as a function key.
RUN: run RUN Specifies RUN status.
STOP: stop STOP Specifies STOP status.
R-S: r-s Reversing RUN/STOP
operation
Specifies reversing RUN/STOP opera-
tion status.
AT-2 : at-2 100%AT
Execute/Cancel
Specifies reversing 100% AT Execute/
Cancel status. (See note 1.)
AT-1 : at-1 40%AT
Execute/Cancel
Specifies reversing 40% AT Execute/
Cancel status. (See notes 1 and 2.)
LAT: lat Alarm Latch Cancel Specifies canceling alarm latches. (See
note 3.)
A-M: a-m Auto/Manual Specifies reversing Auto/Manual status
(See note 4.)
PFDP: pfdp Monitor/Setting Item Specifies the monitor/setting item dis-
play. Select the monitor/setting item
using the Monitor/Setting Item 1 to 5
parameters (advanced function setting
level).
BANK: bank Bank No. Specifies switching to the bank number
+ 1.
Function
Setting
