Omron E5AN-H User Manual

288

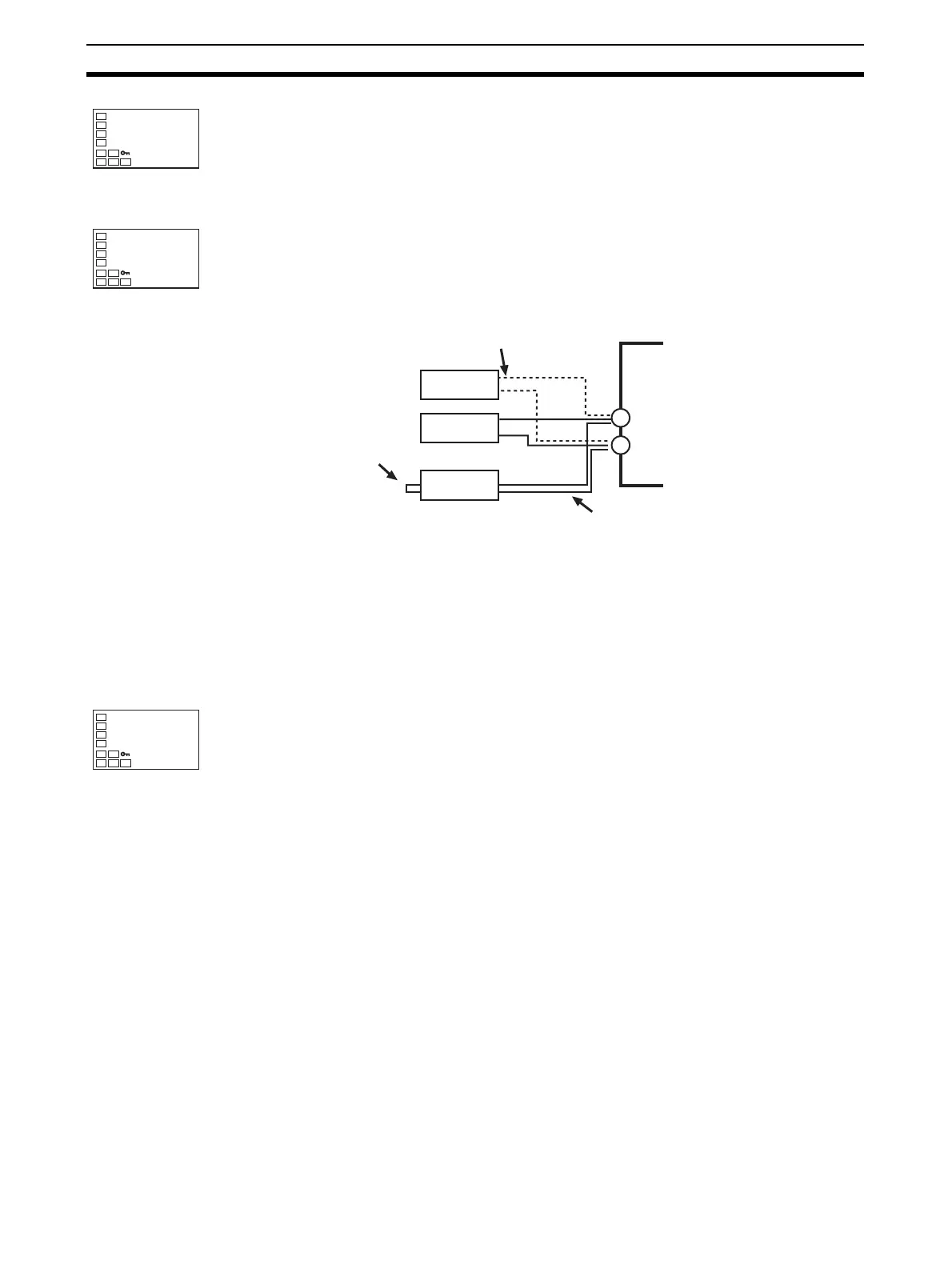

Thermocouple Calibration (Thermocouple/Resistance Thermometer Input)
Section 6-3
8. Press the M Key. The display changes as shown on the left.
Set the STV to 400 mV.
Allow the count value on the No. 2 display to fully stabilize, then press the
D Key to temporarily register the calibration settings.
If this count value is outside of the specified range, the No. 2 display will
flash and the count value will not be temporarily registered.
9. When the M Key is pressed, the status changes as shown to the left.
10. Change the wiring as follows:
Disconnect the STV to enable the thermocouple of the cold junction com-
pensator. When doing this, be sure to disconnect the wiring on the STV
side.
11. Allow the count value on the No. 2 display to fully stabilize, then press the
D Key to temporarily register the calibration settings.
12. When the M Key is pressed, the status changes as shown to the left.
The data to be temporarily registered is not displayed if it is not complete.
Press the U Key. The No. 2 display changes to yes. Release the key and
wait two seconds or press the M Key. This stores the temporarily regis-
tered calibration data to EEPROM. To cancel the saving of temporarily
registered calibration data to EEPROM, press the M Key (while no is dis-
played in the No. 2 display) without pressing the U Key.
13. The calibration mode is ended by turning the power OFF.
For Controllers that have a transfer output (E5AN/EN-H@@F), transfer
output calibration continues to be performed. For details on the settings,
refer to 6-6 Calibrating the Transfer Output on page 292.
c4004
29be
bias
35b8
STV
DMM
OUTPUT INPUT
−
+
Open in non-connected state
Short-circuit
Compensating conductor of currently
selected thermocouple
Use K thermocouple compensating
conductor for E, R, S, B, W and PLII
thermocouple.
Zero
controller
str
no
