20
Installation Section 2-1
E5EN-H
Note Group mounting is not possible when an SSR output is used for
control output 1 or 2 and an E53-C3N or E53-C3DN Output Unit is

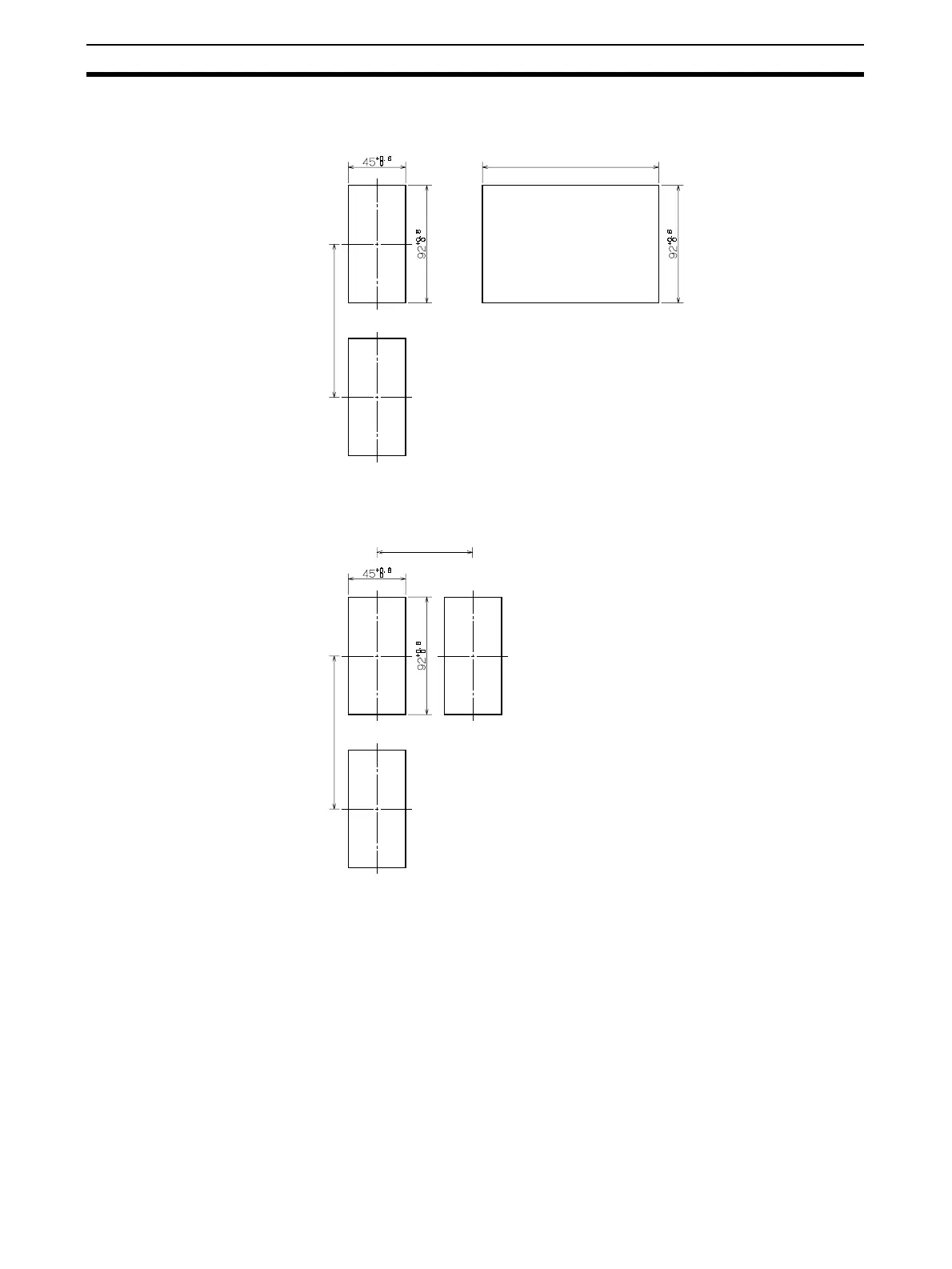

used. Mount at the intervals shown in the following diagram.
• Waterproofing is not possible when group mounting several Controllers.
• The recommended panel thickness is 1 to 5 mm for E5CN-H, and 1 to 8
mm for E5AN/E5EN-H.
• Units must not be group mounted vertically. In addition, group mounting is
not possible when an SSR output is used for control output 1 or 2 and an
E53-C3N or E53-C3DN Output Unit is used. (Observe the recommended
mounting intervals.)
• When group mounting several Controllers, ensure that the surrounding
temperature does not exceed the ambient operating temperature listed in
the specifications.
120 min.
+1.0
0
Individual Mounting Group Mounting (See note.
(48 × number of Units − 2.5)
120 min.
60 min.
