22
Installation
Section 2-1

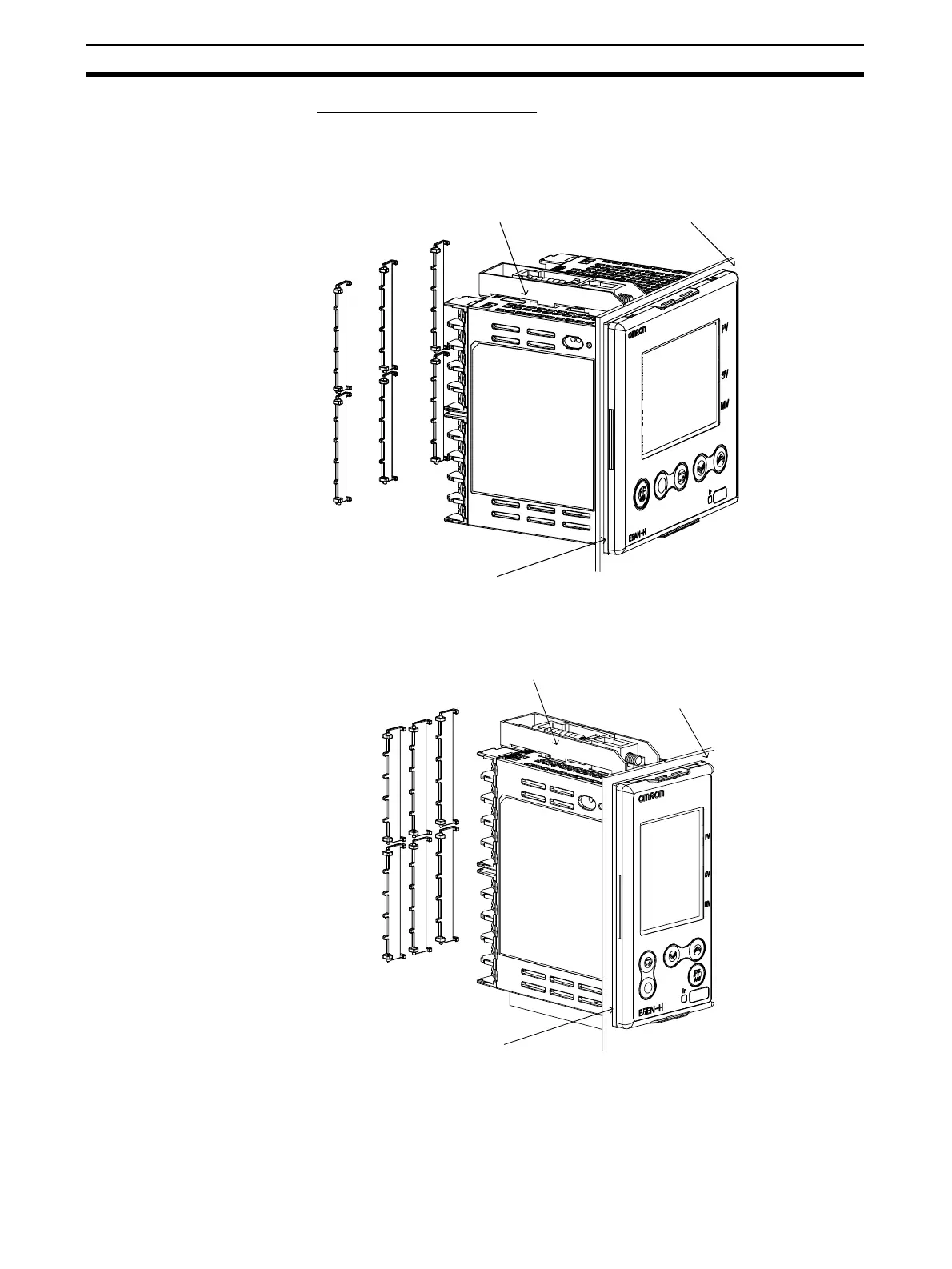

Mounting the T
erminal Cover
Mak
e sure that the "UP" mark is f
acing up
, and then attach t
he E53-CO
V17
T
erminal Cove
r to the holes on the top and bo
ttom of the Digital Controller
.
E5AN/EN-H
E5AN-H
Waterproof packing
Panel
Terminal Cover
(E53-COV16)
Mounting
Bracket
E5EN-H
Terminal Cover
(E53-COV16)
Waterproof packing
Mounting
Bracket
Panel
42
44
Table of Contents
Table of Contents
18
Default Chapter
7
Safety Precautions
7
Precautions for Operation
13
Conventions Used in this Manual
16
About this Manual
20
Introduction
22
Names of Parts
23
Front Panel
23
Explanation of Indicators
24
Using the Keys
25
I/O Configuration and Main Functions
26
Main Functions
29
Setting Level Configuration and Key Operations
32
Communications Function
35
Selecting Parameters
35
Saving Settings
35
Preparations
38
Installation
39
Panel Cutout
40
Wiring Terminals
49
Precautions When Wiring
51
Using the Support Software Port
61
Using Infrared Communications
63
Section 3 Basic Operation
66
Basic Operation
66
Initial Setting Examples
67
Setting the Input Type
70
Input Type
70
Selecting the Temperature Unit
72
Selecting PID Control or ON/OFF Control
72
Temperature Unit
72
Setting Output Specifications
73
Control Periods
73
Direct and Reverse Operation
73
Assigned Output Functions
74
Setting the Set Point (SP)
77
Changing the SP
77
Using ON/OFF Control
78
ON/OFF Control
78
Settings
79
Determining PID Constants (AT, ST, Manual Setup)
81
AT (Auto-Tuning)
81
ST (Self-Tuning)
83
RT (Robust Tuning)
85
Manual Setup
87
Alarm Outputs
88
Alarm Types
88
Alarm Values
90
Using Heater Burnout, Heater Short, and Heater Overcurrent Alarms
92
Heater Burnout, Heater Short
92
And Heater Overcurrent Alarm Operations
92
Installing Current Transformers (CT)
93
Calculating Detection Current Values
94
Application Examples
95
Settings: HB Alarm
99
Settings: Heater Short Alarm
100
Settings: Heater Overcurrent Alarm
101
Setting the No. 3 Display
103
PV/SP Display Selection
103
Section 4 Applications Operations
106
Applications Operations
106
Shifting Input Values
108
Shifting Inputs
108
How to Calculate Input Shift Values for a 2-Point Shift
109
Alarm Hysteresis
111
Standby Sequence
111
Alarm Latch
112
Setting Scaling Upper and Lower Limits for Analog Inputs
113
Analog Input
113
Executing Heating/Cooling Control
114
Heating/Cooling Control
114
Settings
116
Using Event Inputs
117
Event Input Settings
117
Operation Commands Other than Bank Selection
119
Setting the SP Upper and Lower Limit Values
121
Set Point Limiter
121
Setting
122
Using the SP Ramp Function to Limit the SP Change Rate
123
SP Ramp
123
Moving to the Advanced Function Setting Level
125
Using the Key Protect Level
127
Protection
127
Entering the Password to Move to the Protect Level
128
PV Change Color
130
PV Color Change Function
130
Setting
131
Alarm Delays
133
Loop Burnout Alarm
135
Loop Burnout Alarm (LBA)
135
Performing Manual Control
140
Manual Operation
140
Manual Control Level
142
Using the Transfer Output
145
Transfer Output Function
145
Using Banks and PID Sets
150
Using the Simple Program Function
153
Simple Program Function
153
Operation at the Program End
157
Combining a Simple Program with an SP Ramp
158
Relationships between Simple Programs and Other Functions
159
Output Adjustment Functions
162
Output Limits
162
MV at Stop
163
MV at PV Error
164
Using the Extraction of Square Root Parameter
165
Setting the Width of MV Variation
167
Setting the PF Key
169
PF Setting (Function Key)
169
Counting Control Output ON/OFF Operations
171
Control Output ON/OFF Count Function
171
Displaying PV/SV Status
173
PV and SV Status Display Functions
173
Using a Remote SP
176
Position-Proportional Control
178
Logic Operations
180
The Logic Operation Function (CX-Thermo)
180
Using Logic Operations
180
Section 5 Parameters
190
Parameters
190
Conventions Used in this Section
191
Meanings of Icons Used in this Section
191
About Related Parameter Displays
191
The Order of Parameters in this Section
191
Alarms
191
Protect Level
192
Operation Level
196
Process Value
198
Adjustment Level
211
Bank Setting Level
230
PID Setting Level
237
Monitor/Setting Item Level
241
Manual Control Level
242
Initial Setting Level
244
Advanced Function Setting Level
263
Communications Setting Level
302
Section 6 Calibration
304
Calibration
304
Parameter Structure
305
User Calibration
306
Thermocouple Calibration (Thermocouple/Resistance Thermometer Input)
306
Calibrating Inputs
306
Registering Calibration Data
306
Preparations
307
Platinum Resistance Thermometer Calibration (Thermocouple/Resistance Thermometer Input)
310
Calibrating Analog Input (Analog Input)
311
Calibrating a Current Input
311
Calibrating a Voltage Input
312
Calibrating the Transfer Output
313
Checking Indication Accuracy
315
Thermocouple
315
Platinum Resistance Thermometer
315
Analog Input
316
Appendix
318
Specifications
323
Error Displays
325
Troubleshooting
328
Parameter Operation Lists
332
Bank Setting Level
336
Setting Levels Diagram
357
Parameter Flow
359
Index
364
Revision History
372
