Installation Section 2-1
E5AN/EN-H

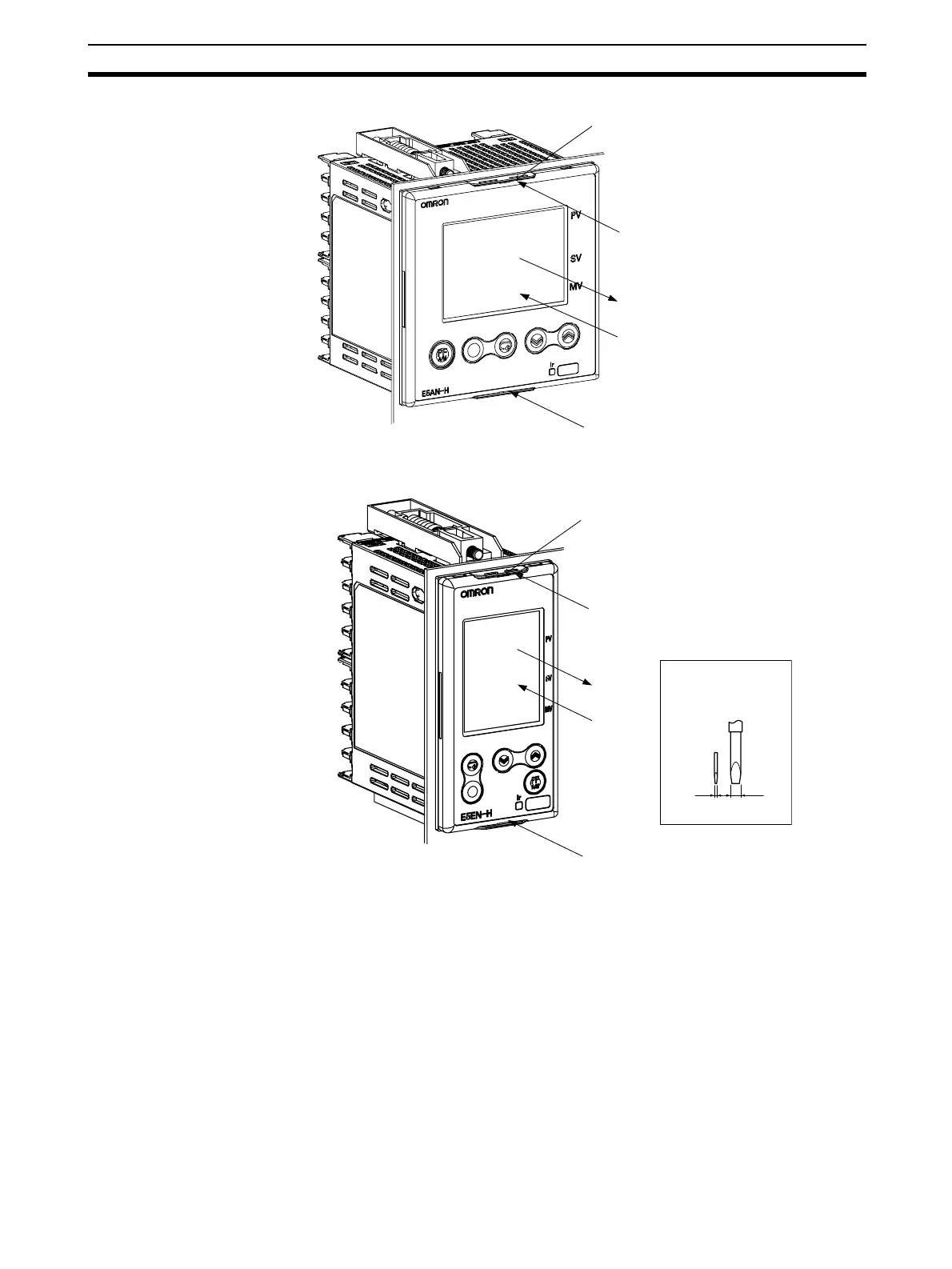

1,2,3... 1. Insert a flat-blade screwdriver into the two tool insertion holes (one on the
top and one on the bottom) to release the hooks.
2. Insert a flat-blade screwdriver in the gap between the front panel and rear
case (two on the top and two on the bottom), and use it to pry and pull out
the front panel slightly. Then, pull out on the front panel gripping both sides.
Be sure not to impose excessive force on the panel.
(1)
(2)
(3)
(1)
Tool insertion hole
(1)
(2)
(3)
(1)
Tool insertion hole
2.0
0.4 5.0
Flat-blade screwdriver
(Unit: mm)
