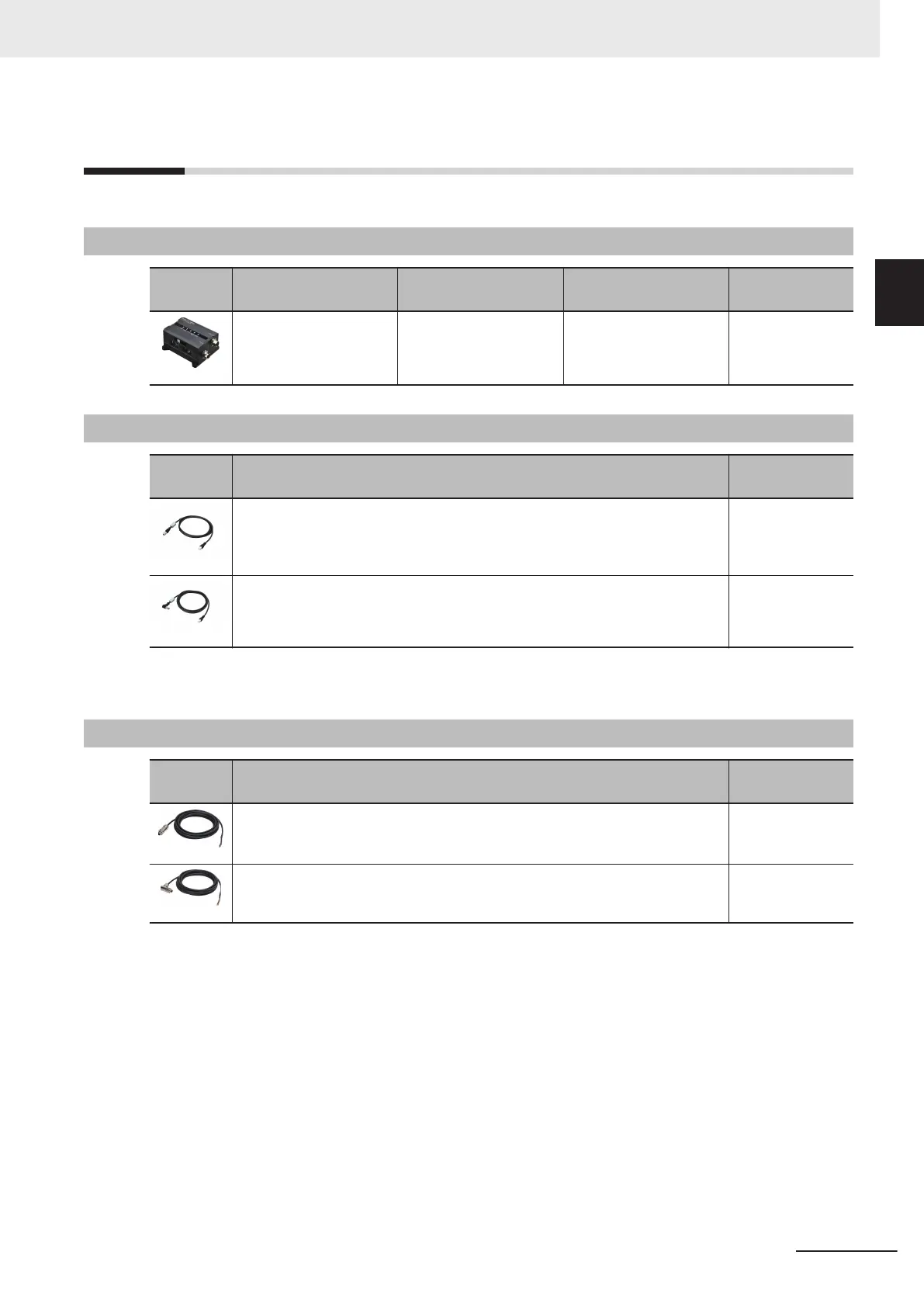

Omron fh series Hardware Setup Manual

1-2
3D Cameras and Related
1-2-1
Camera
Appear-
ance
Type Field of vision Imaging area Model
3D vision sensor 400 x 300 mm 400 to 600 mm FH-SMDA-
GS050B
1-2-2
Camera Cable
Appear-
ance
Description Model
Ethernet cable super bending resistance straight
Cable length: 3 m, 5 m, 10 m
FHV-VNBX £M
*1
Ethernet cable super bending resistance right-angle
*2
Cable length: 3 m, 5 m, 10 m
FHV-VNLBX
£M
*1
*1.
Insert the cables length into £ in the model number as follows. 3 m = 3, 5 m = 5, 10 m = 10
*2. This Cable has an L-shaped connector on the Camera end.
1-2-3
Camera I/O Cable
Appear-
ance
Description Model
I/O cable super bending resistance straight
Cable length: 3 m, 5 m, 10 m
FH-VSDX-BX
£M
*1
I/O cable super bending resistance right-angle
*2
Cable length: 3 m, 5 m, 10 m
FH-VSDX-LBX
£M
*1
*1.
Insert the cables length into £ in the model number as follows. 3 m = 3, 5 m = 5, 10 m = 10
*2. This Cable has an L-shaped connector on the Camera end.
1 Confirm the Package
1-3
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)
1-2 3D Cameras and Related
1
1-2-1 Camera

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
