Omron fh series Hardware Setup Manual

1-5-3

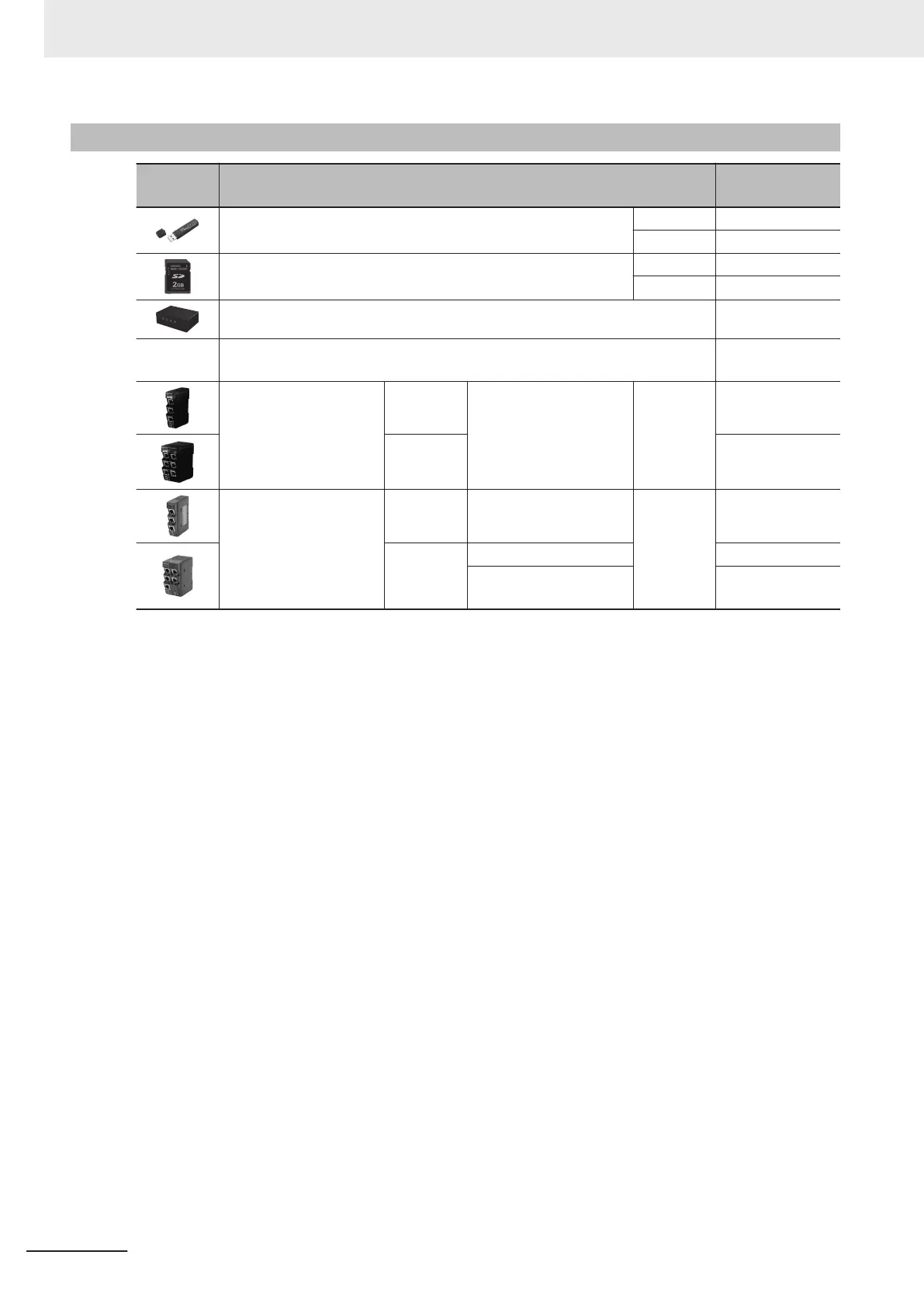

Accessories
Appear-
ance
Description Model
USB Memory 2 GB FZ-MEM2G
8 GB FZ-MEM8G
SD card 2 GB HMC-SD291
4 GB HMC-SD491
USB/Monitor Switcher FZ-DU
-
Mouse - Driverless wired mouse
(A mouse that requires the mouse driver to be installed is not supported.)
-
EtherCAT junction
slaves
3 ports Power supply voltage:
20.4 VDC to 28.8 VDC
(24 VDC -15 % to +20
%)
Current
consump-
tion: 0.22
A
GX-JC03
6 ports GX-JC06
Industrial Switching
Hubs for EtherNet/IP
and Ethernet
3 ports Failure detection: None Current
consump-
tion: 0.22
A
W4S1-03B
5 ports Failure detection: None W4S1-05B
Failure detection: Sup-
ported
W4S1-05C
1 Confirm the Package
1-8
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
