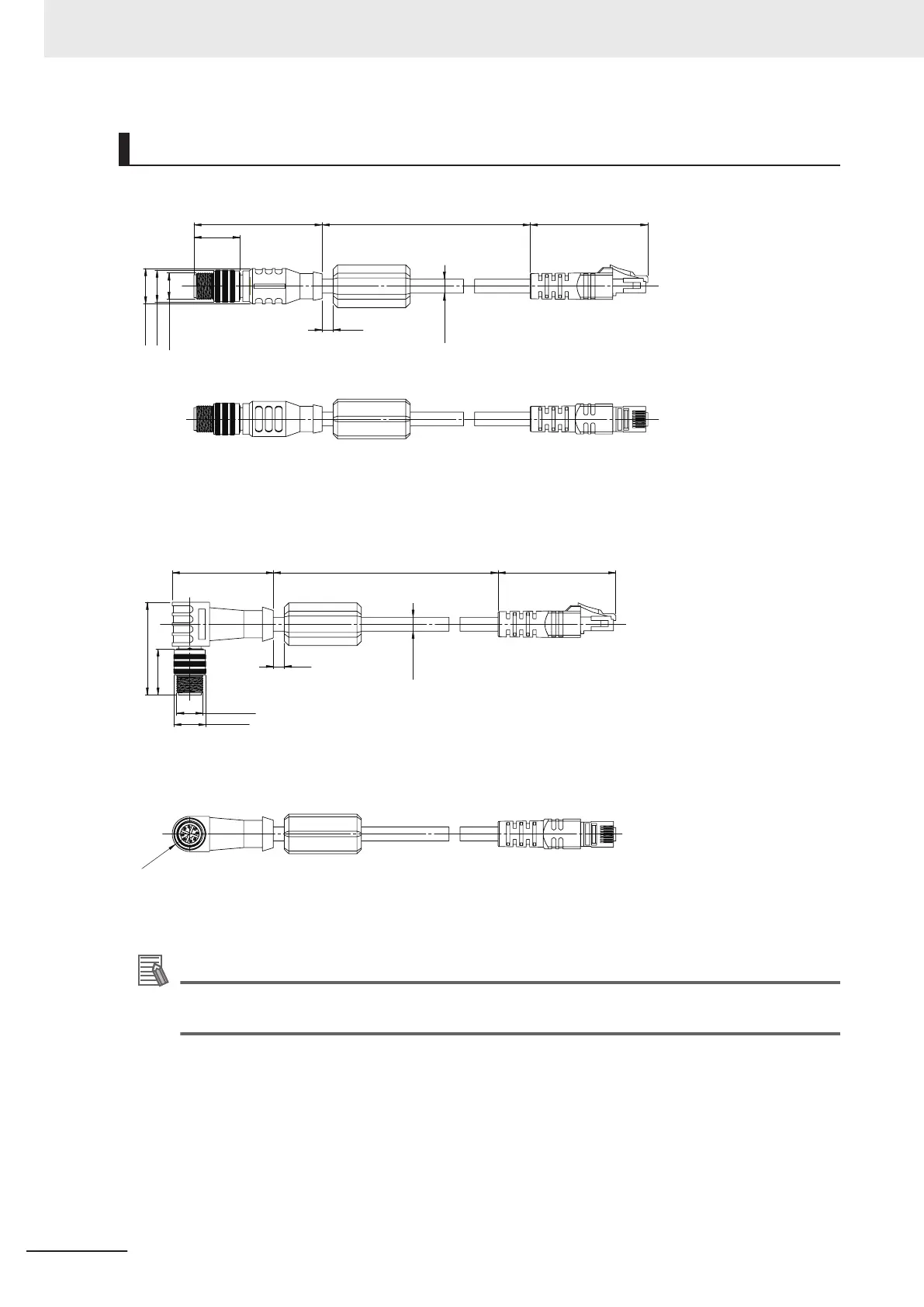

Dimensions
• Ethernet cable (straight)
16.1 dia.
M12 x 1
21
58.3
6.3 dia.
53.5
5
14.6 dia.
L*1
(Unit: mm)
*1. Cable lengths (L) are 3 m/5 m/10 m.
•
Ethernet cable (right angle)
R8
53.5 46
5
6.3 dia.
M12 x 1
21
42.2
15 dia.
L*1
(Unit: mm)
*1. Cable lengths (L) are 3 m/5 m/10 m.
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
3 Configuration
3-14
FH Series Vision System Hardware Setup Manual for 3D Robot Vision (Z436-E1)
