Dimensions

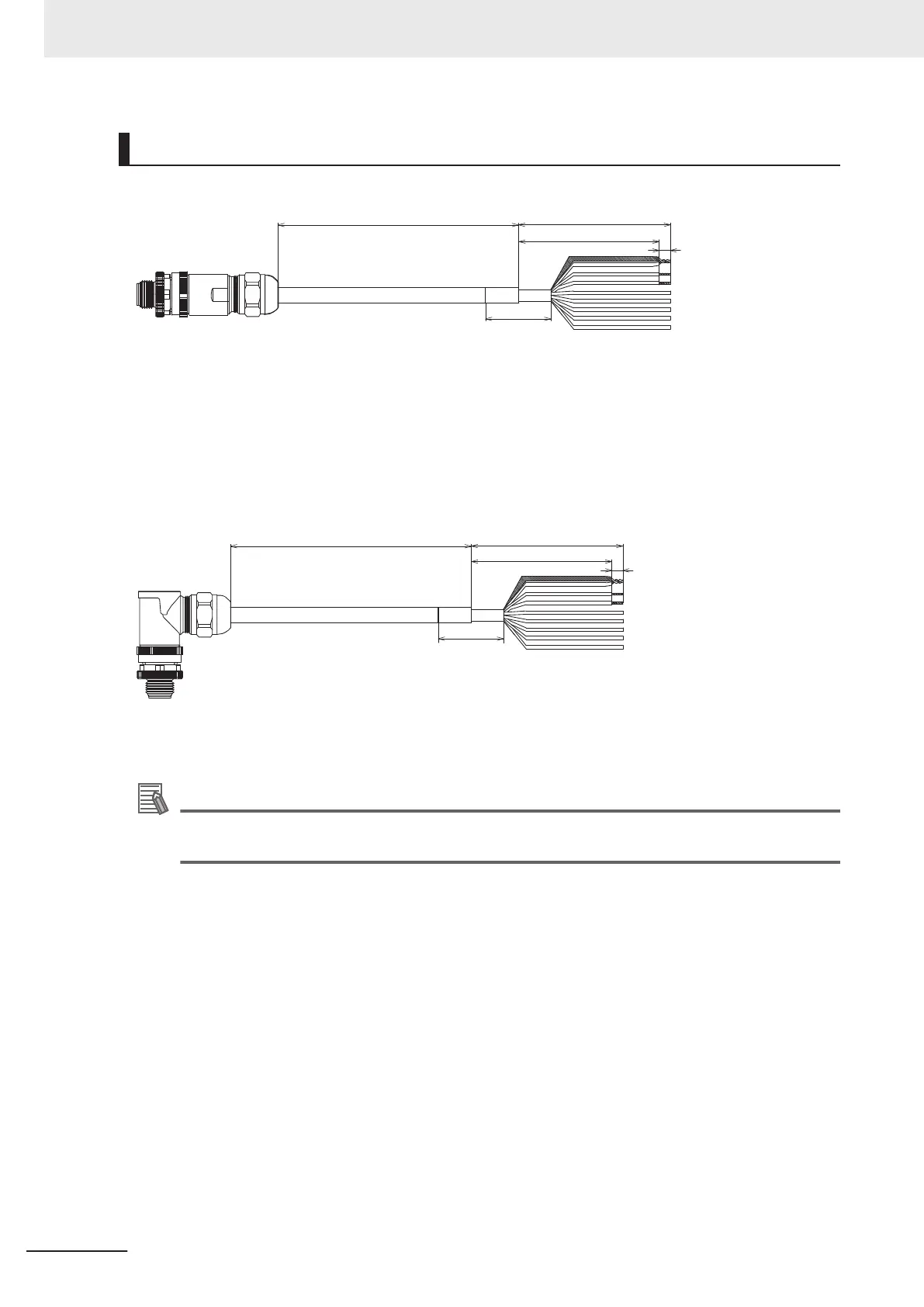

• Camera I/O cable (straight)
55±5
L
30
(5)
(Brown)
(Blue)
(Green)
(Shield)
(50)
(Unit: mm)
*1. Cable lengths (L) are 3 m/5 m/10 m.
• Camera I/O cable (right angle)
55±5
L
30
(5)
(Brown)
(Black)
(Green)
(Shield)
(50)
(Unit: mm)
*1. Cable lengths (L) are 3 m/5 m/10 m.
Additional Information
We have the 2D CAD data or 3D CAD data.
Y
ou can download CAD data from www.fa.omron.co.jp.
