Omron FQ2-S Series User Manual

Command Control
FQ2-S/CH User’s Manual
for Communications Settings
299
5
Appendices
POSITIONDATA or PD
Get Image Adjustment Data
This command acquires parameters from a position compensation item or filter item.

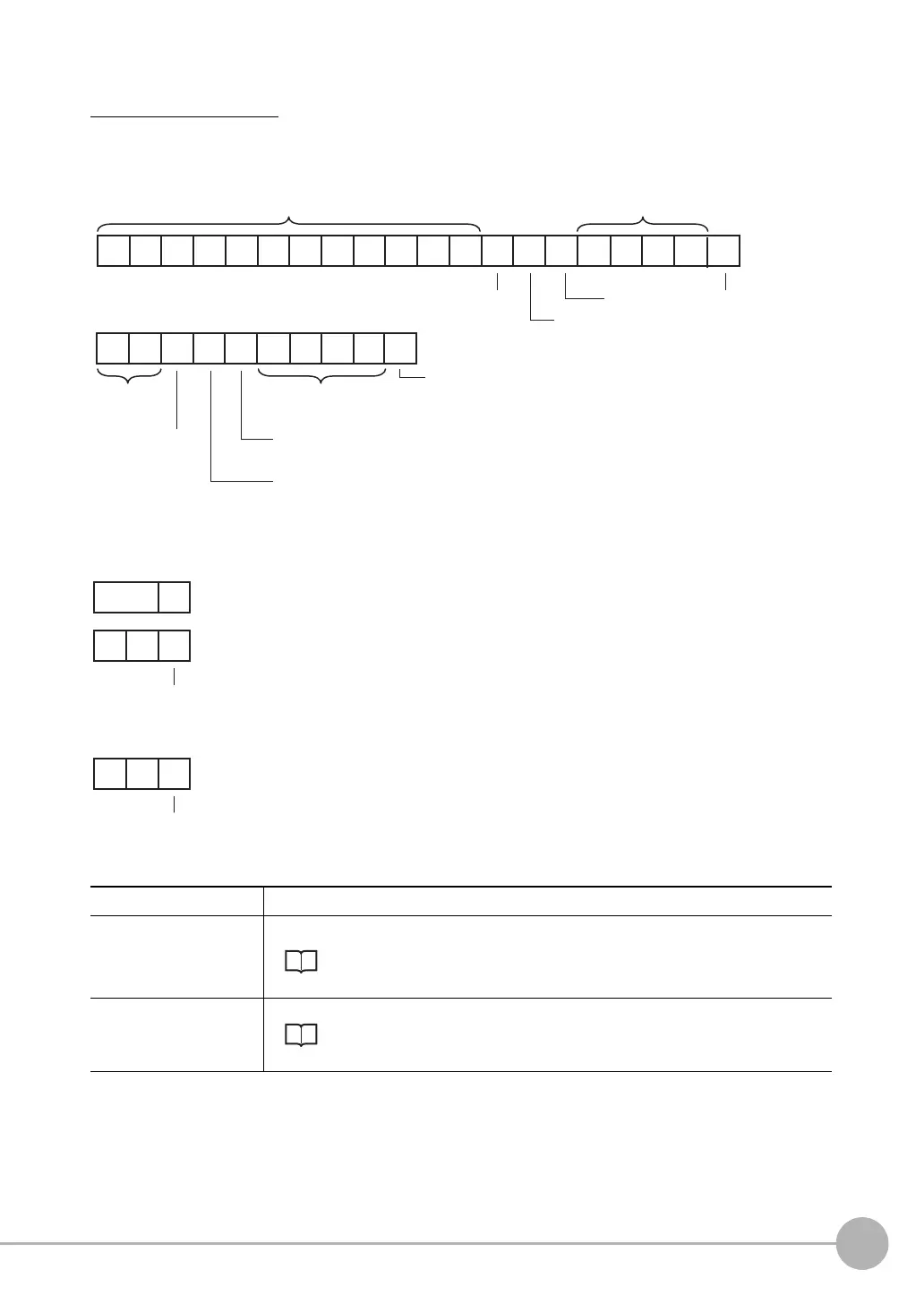

<Command Format>
<Response Format>
When the Command Is Processed Normally
When the Command Is Not Processed Normally
<Parameter Descriptions>
Item number Specifies the item number of the position compensation item or of the filter item.
External reference data
number
Specifies the external reference data number.
Section 9-2 External Reference Parameters
in Vision Sensor FQ2-S/CH Series User's Manual (Cat. No. Z337)
Acquired value Returns the image adjustment data or threshold value.
Section 9-2 External Reference Parameters
in Vision Sensor FQ2-S/CH Series User's Manual (Cat. No. Z337)
PO ON DAT A CR SI IT
External reference data (4 digits max.)Command
Command
Space
(0x20)
Delimiter
or
DP CR
External reference data
(4 digits max.)
Delimiter
Space
(0x20)
Item
number
Space
(0x20)
Space
(0x20)
Item
number
CR
Acquired
value
Delimiter
CR OK
CR ER
Delimiter
