Omron G5 Series Startup Guide

22
PDO Map Settings 6.4.3.
PDO entries without axis settings are subjected to PDO communications as
indefinite values. For this reason, unexpected operations of the motion control
devices may occur, resulting in a personal injury to the user.
Only objects to be configured in Section 6.5.2. Motor Setup must be mapped to
PDO entries.

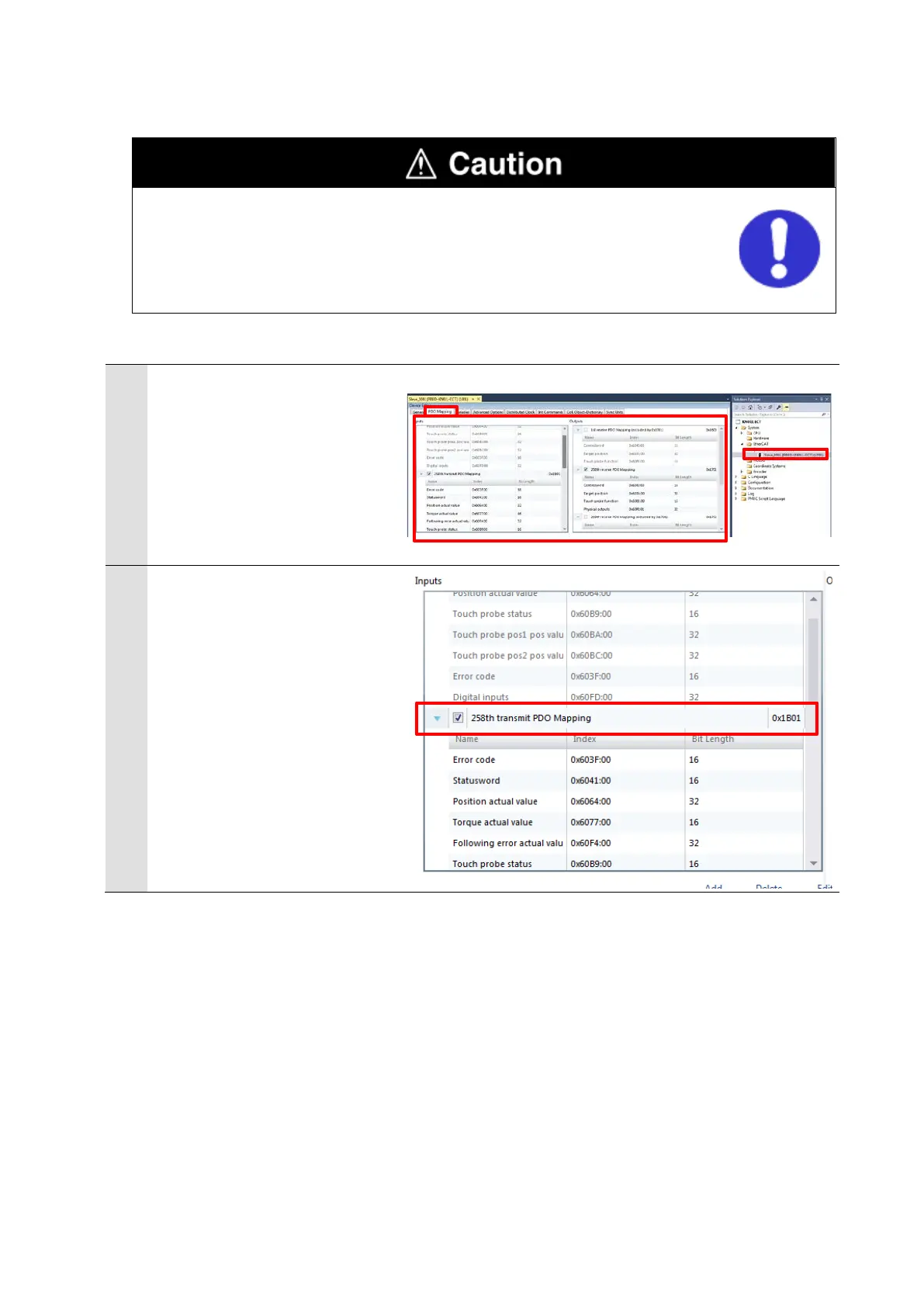

1
In the Solution Explorer, select
the target slave and display the
PDO Mapping tab page.
2
Setting PDO mapping (Inputs)
Make sure that the 258th
transmit PDO Mapping
0x1B01 check box is selected in
the Inputs field.

Omron G5 Series Specifications

General

Feedback	Incremental Encoder, Absolute Encoder
Communication	EtherCAT
Safety Function	STO (Safe Torque Off)
Protection Functions	Overvoltage, Undervoltage, Overcurrent
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
