94 LD Cart Transporter User's Manual 14766-000 Rev H
6.3 Standard Platform Connections
Table 6-1. Digital Output Specifications
Parameter Value
Power supply voltage range 5-30 VDC
Operational current range, per channel I
out
≤ 500 mA
ON state resistance (I
out
= 0.5 A) R
on
≤ 0.14 Ω @ 85°C
Output leakage current I
out
≤ 5 μA
DC short circuit current limit 0.7 A ≤ I
LIM
≤ 1.7 A

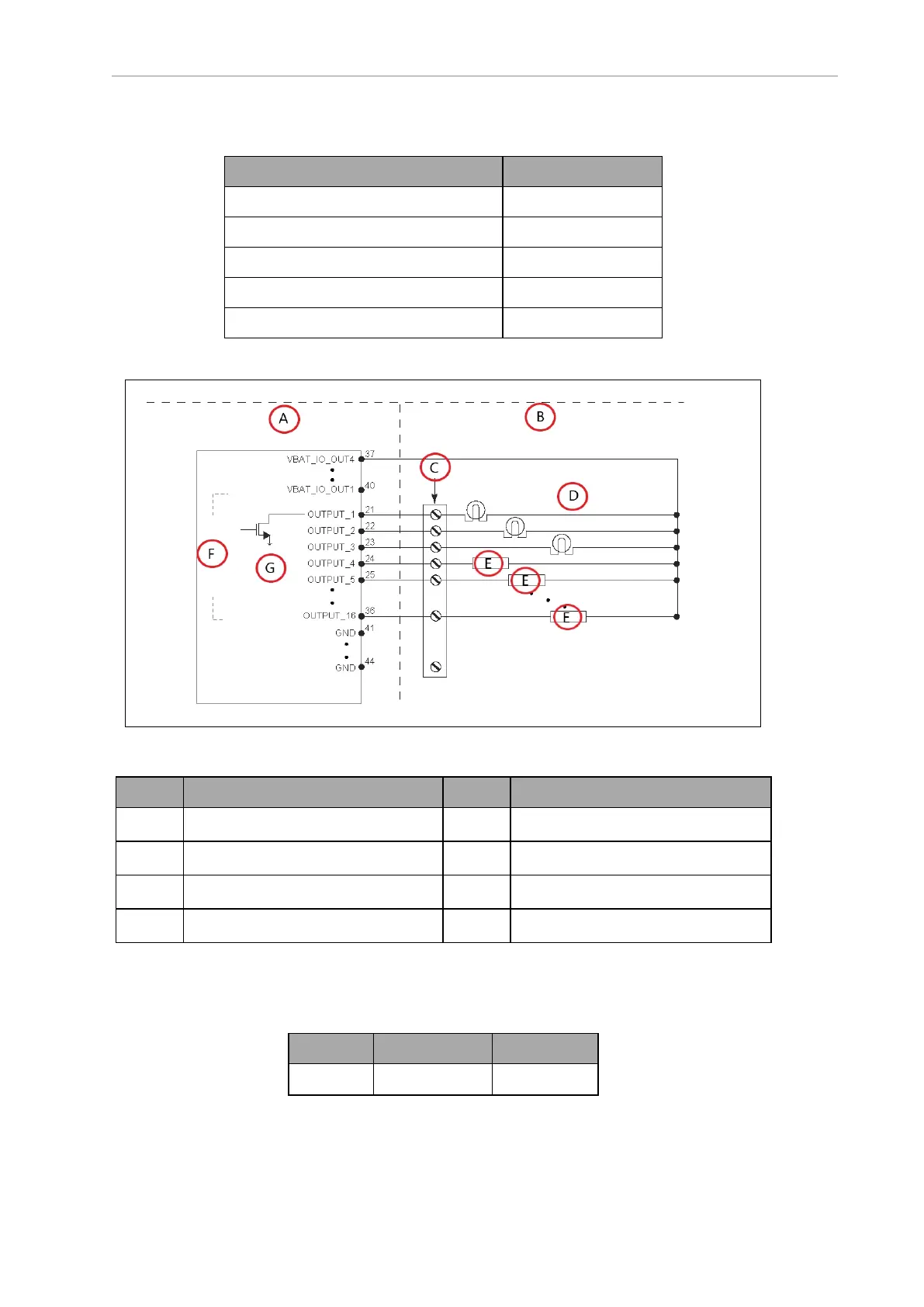

Figure 6-7. Typical Digital Output Wiring Example
Callout Description Callout Description
A Standard Equipment E Load
B User-Supplied Equipment F Outputs 1-16
C Wiring Terminal Block G Equivalent Circuit
D Typical User Loads
Analog I/O
Connector type HDB15M
Pin No. Designation Notes
1 ANALOG_IN1 0-10 V Range
