Omron NJ Series Startup Guide

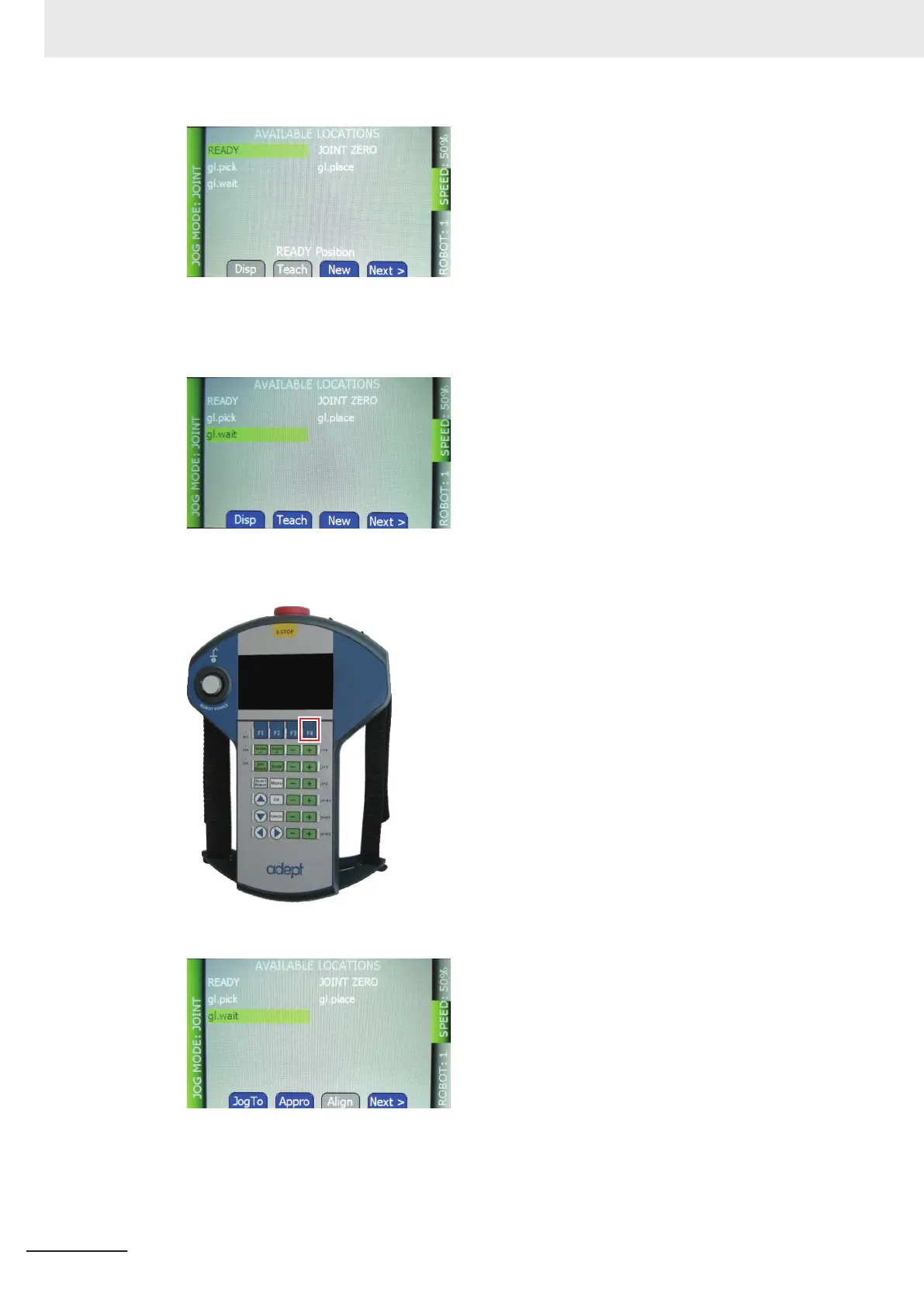

10 On the AVAILABLE LOCATIONS screen, use the arrow buttons to select the teaching position
from the list of locations.
11 Press the F4 button (Next>).
The display for the soft keys changes on the bottom of the screen.
12 If the variable selected in step 10 is gl.pick or gl.place, press and hold the F2 button (Appro).
3 Implementation Example of Static Pick-and-place Equipment
3-86
NJ-series Robot Integrated System Startup Guide (O049)

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
