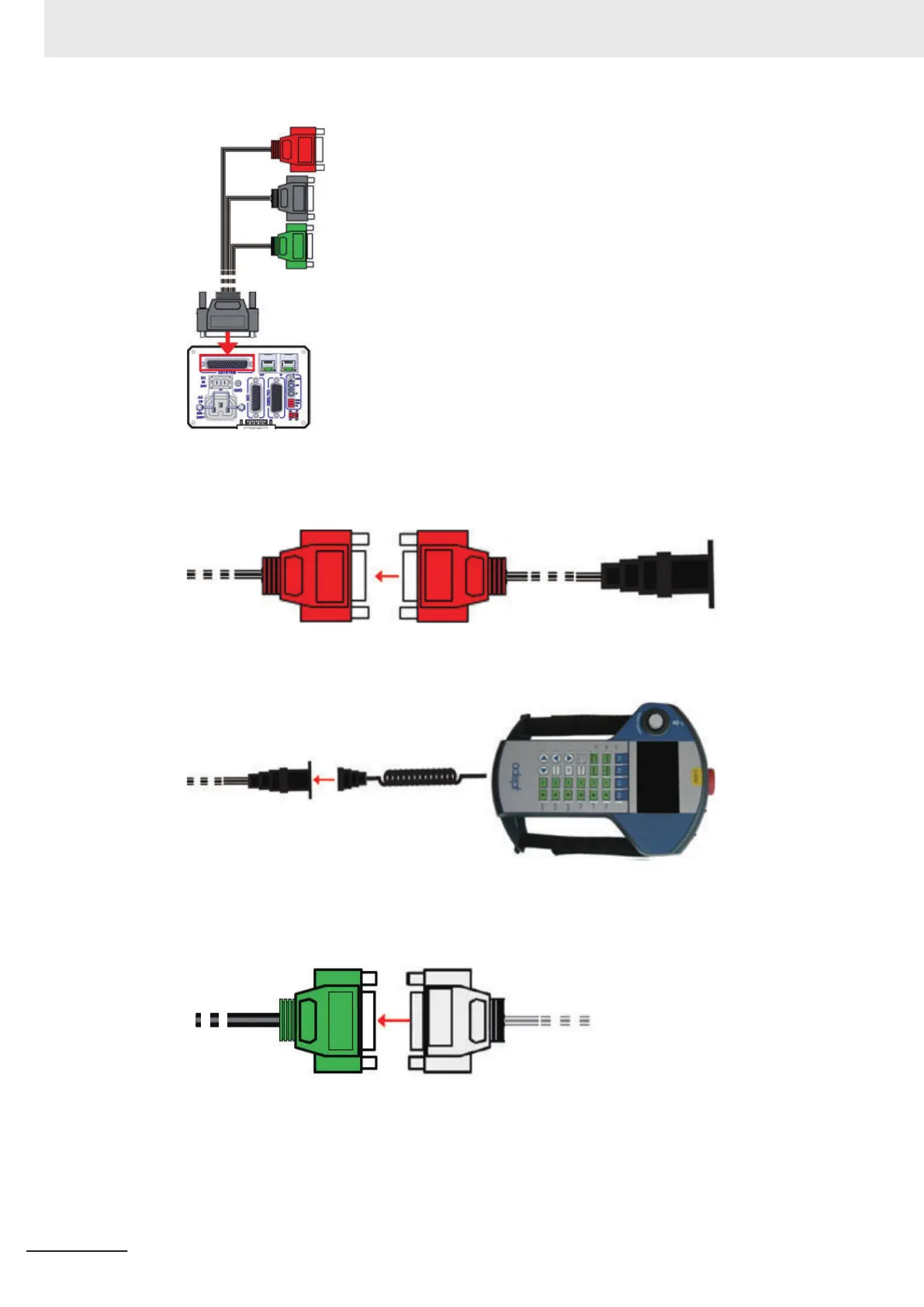

2 Connect the XMCP connector (Red) of the XSYSTEM cable assembly and the T20 adapter ca-
ble.
3 Connect the T20 adapter cable to the T20 pendant.
4 Connect the XFP connector (Green) of the XSYSTEM cable assembly and the front panel ca-
ble.
5 Connect the front panel cable and the front panel.
