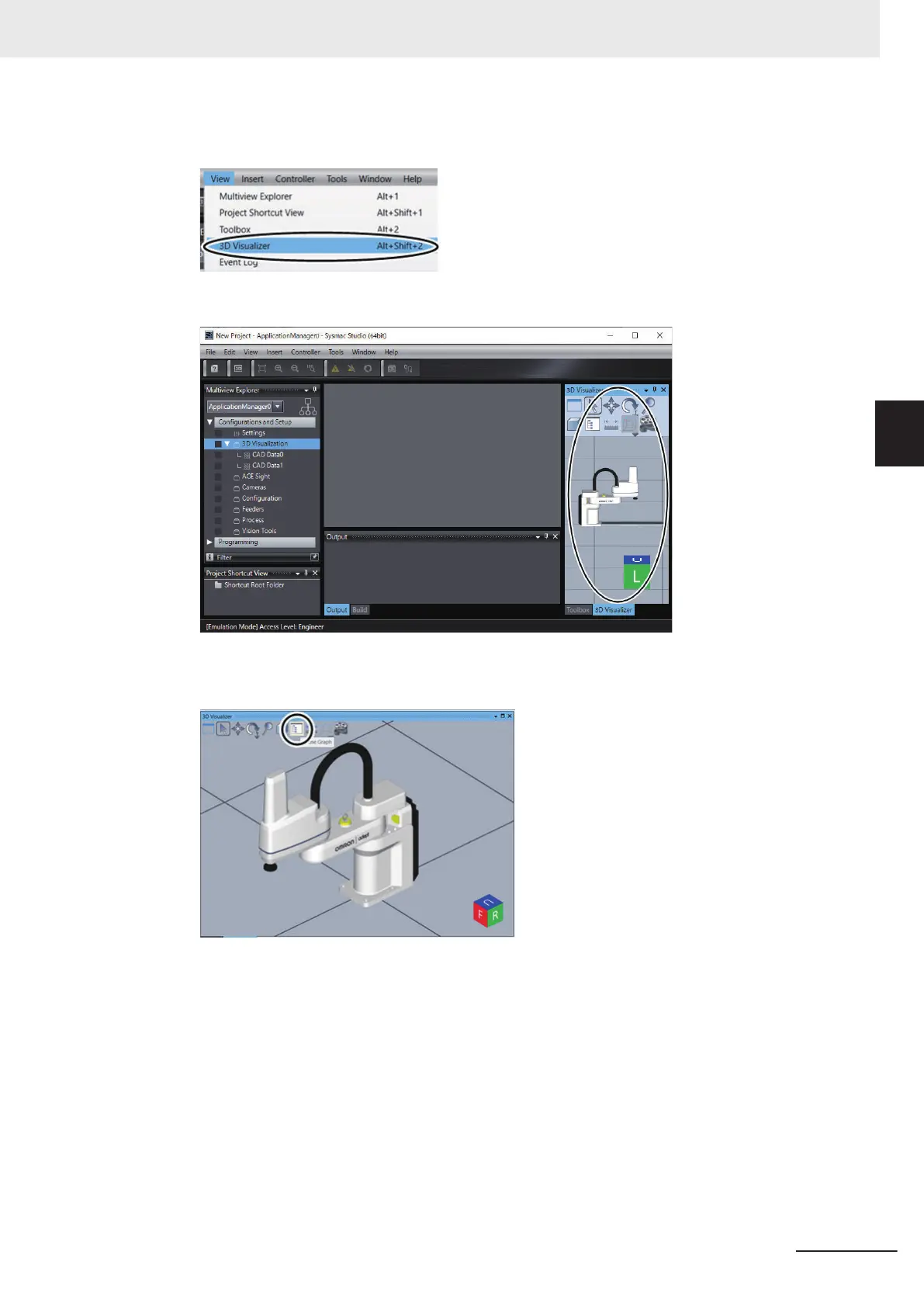

1 Select 3D Visualizer
from the View menu on the main window of the Sysmac Studio.
The 3D Visualizer is displayed on the right side of the main window.
2 In the 3D Visualizer, click the Scene Graph icon.
The Scene Graph dialog box is displayed.
3 Implementation Example of Static Pick-and-place Equipment
3-49
NJ-series Robot Integrated System Startup Guide (O049)
3-3 Programming and Simulation Procedures
3
3-3-5 Placing 3D Shape Data
