117

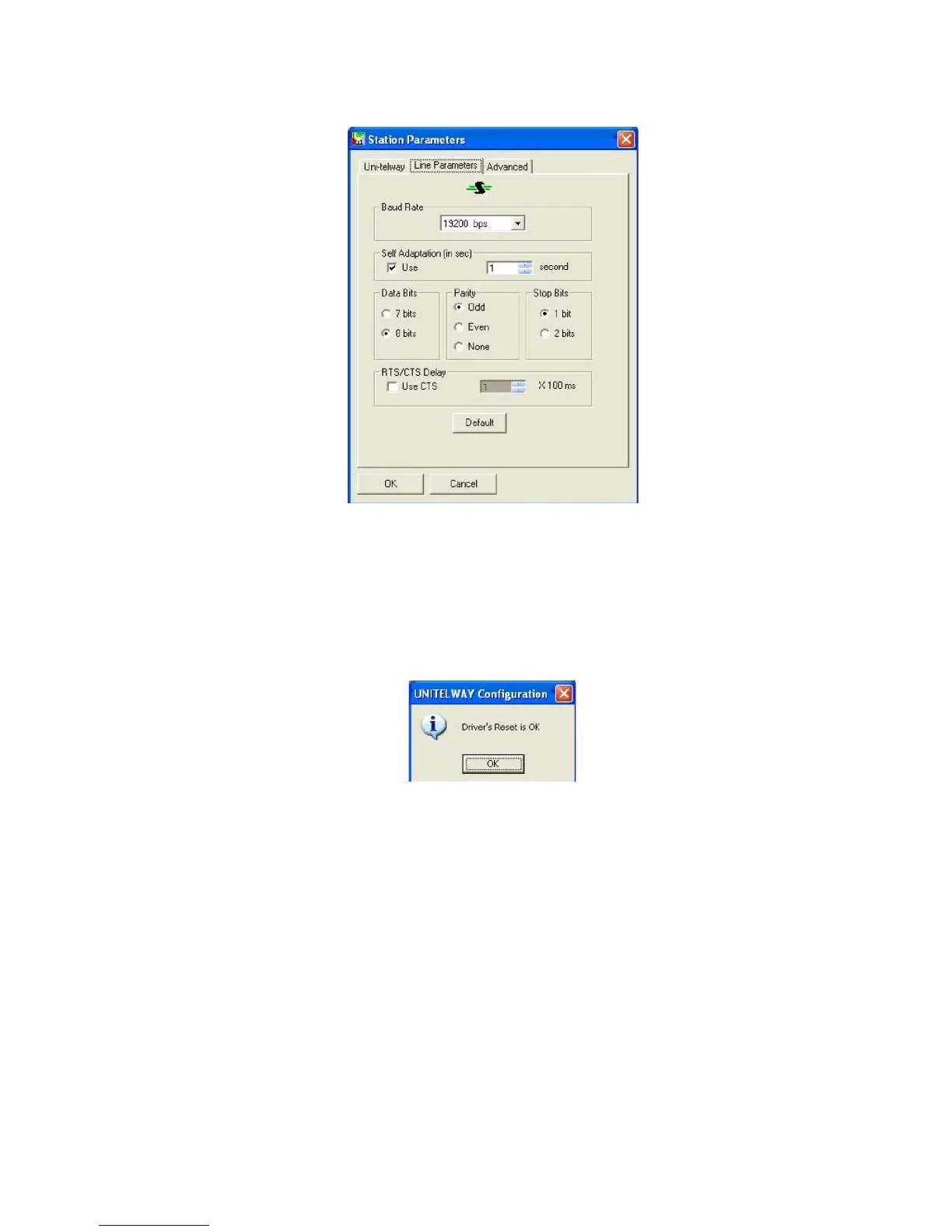

Set the baud rate, data bits, parity and number of stop bits. Click on OK and return to Station List window
11 Now add the stations that will be in your network.
Here we want the node 04,so we added that. Enter the Line parameters and Unitelway parameters keep
base as 1 and numbers as 4.
Keep the pointer on default station.
Click Apply. This will apply the settings by resetting the Unitelway driver.
The following message will appear
