122

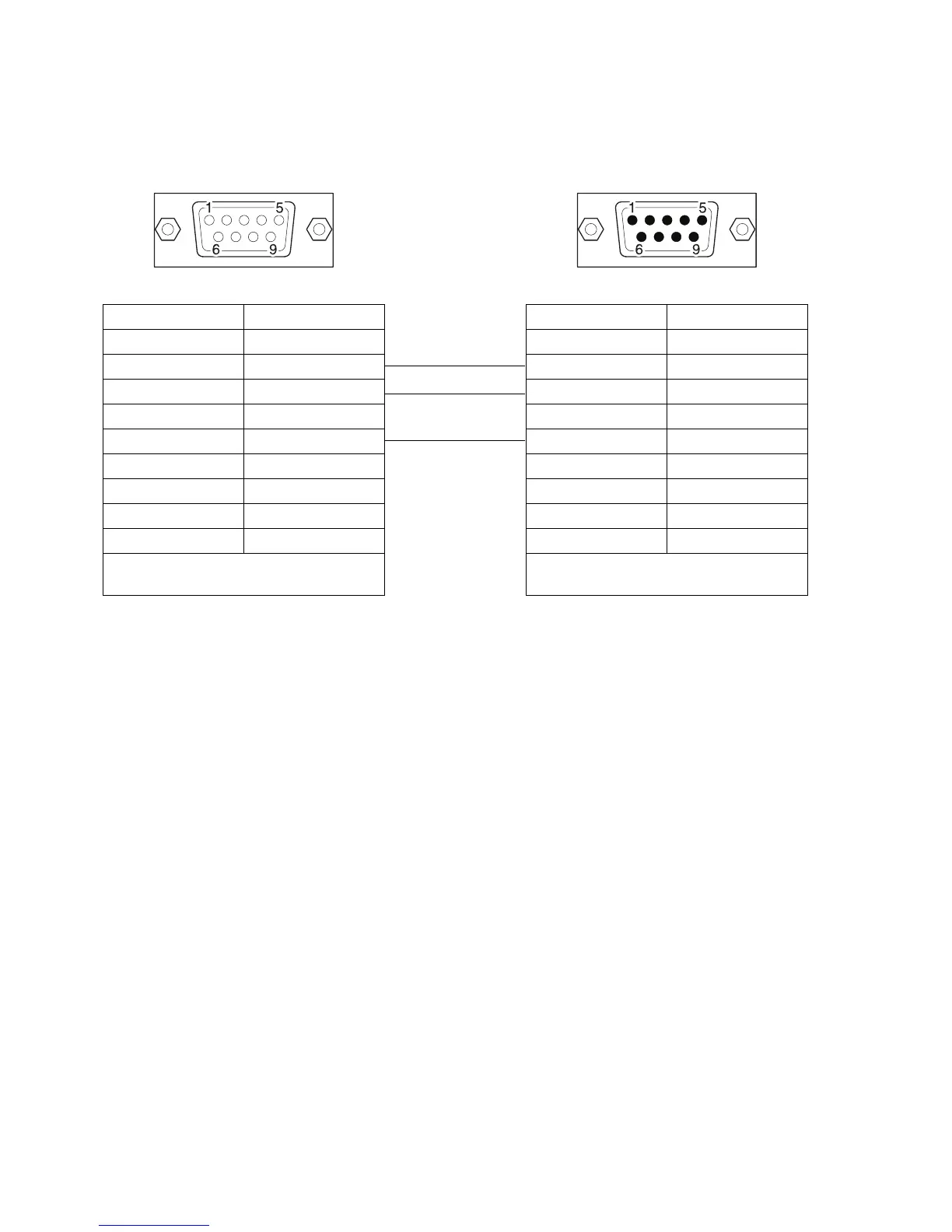

A-4-3 NQ to AB Compact Logix
/i
DB9 FEMALE PINOUTS (PLC) DB9 MALE PINOUTS (NQ)
Signals Pin number Pin number Signals
11
RXD 2 2 TXD
TXD 3 3 RXD
44
Common 5 5 SG
66
RTS 7 7
CTS 8 8
99
shield wire to DB9 body shield wire to DB9 body
