Mounting Section 3-2
11

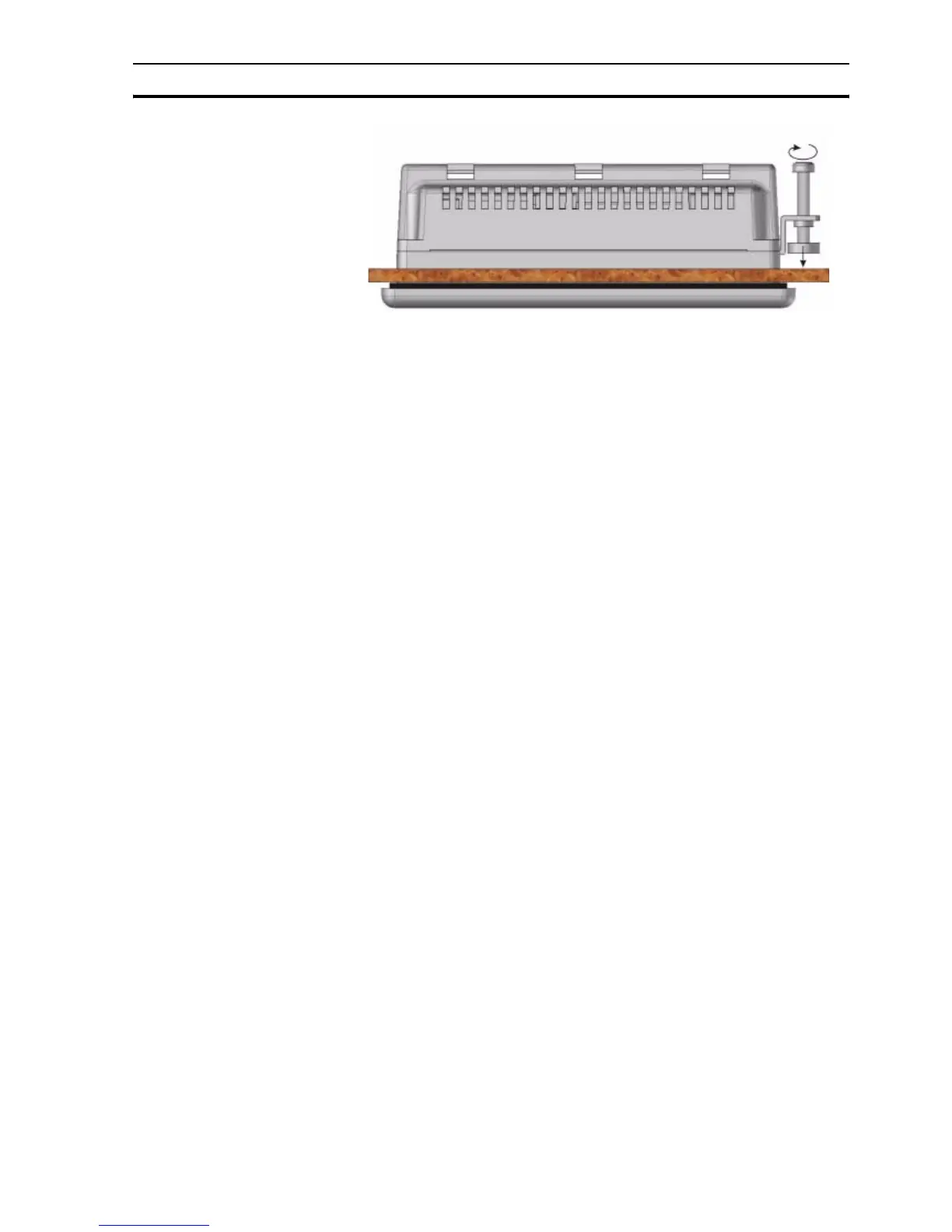

Figure 3.4: Case being fixed in panel
5 Repeat previous step for the other three clamps.
6 Hold the NQ-Series straight and tighten all four screws evenly to a torque
between 0.5 Nm and 0.6 Nm.
