80
Note
• H5-07 = 0 (RS-485 connection): Create the applicable cable. Refer to (V1000 RS-485 connection) A-2-5.
• NQ-Series establishes a connection to the inverter by exchanging a default address HR400001. If this
address is not available in the used inverter, the connection will not be established. To establish the
connection proceed as follows.
1 Click in the Nodes folder and right-click the Node1 inverter.
2Click Edit.

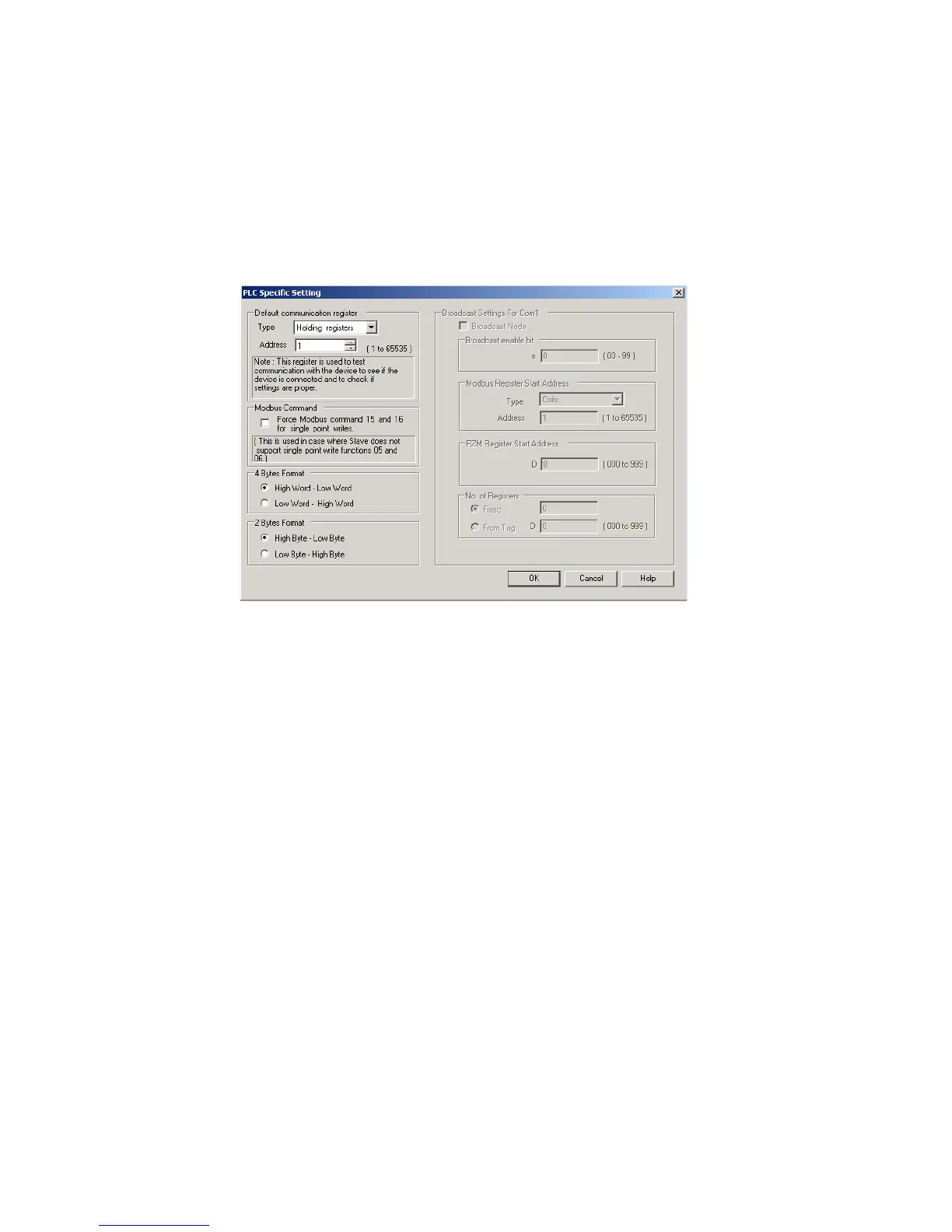

3Click PLC Specific Setting.
4
5 Change Default communication register address to an available address in the inverter.
6Click OK.
7 Download the application to the NQ-Series.
• The following messages are displayed on the NQ-Series’ screen if problems occur:
• !!! no connection
• ??? connection established, address unknown
