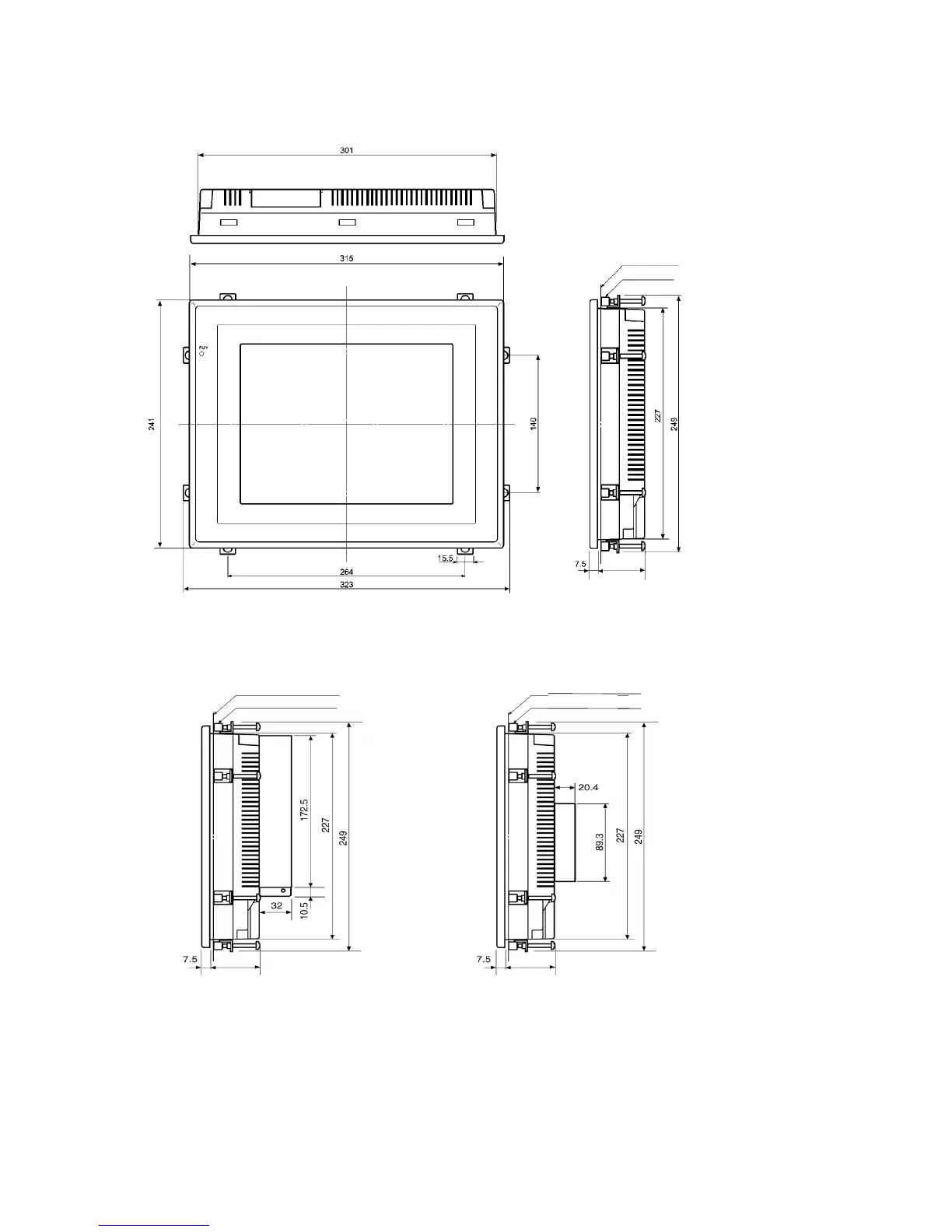

Appendix 2 Dimensions
A-14
● NS12-V1/-V2, NS10-V1/-V2
(Includes Mounting Dimensions)
39 (min.)
42 (max.)
Mounting panel
Mounting bracket
(Unit: mm)
With Controller Link Interface Unit Mounted With Video Input Unit Mounted
Mounting panel
Mounting
bracket
Mounting panel
Mounting
bracket
39 (min.)
42 (max.)
39 (min.)
42 (max.)
