Appendix 2 Dimensions
A-16

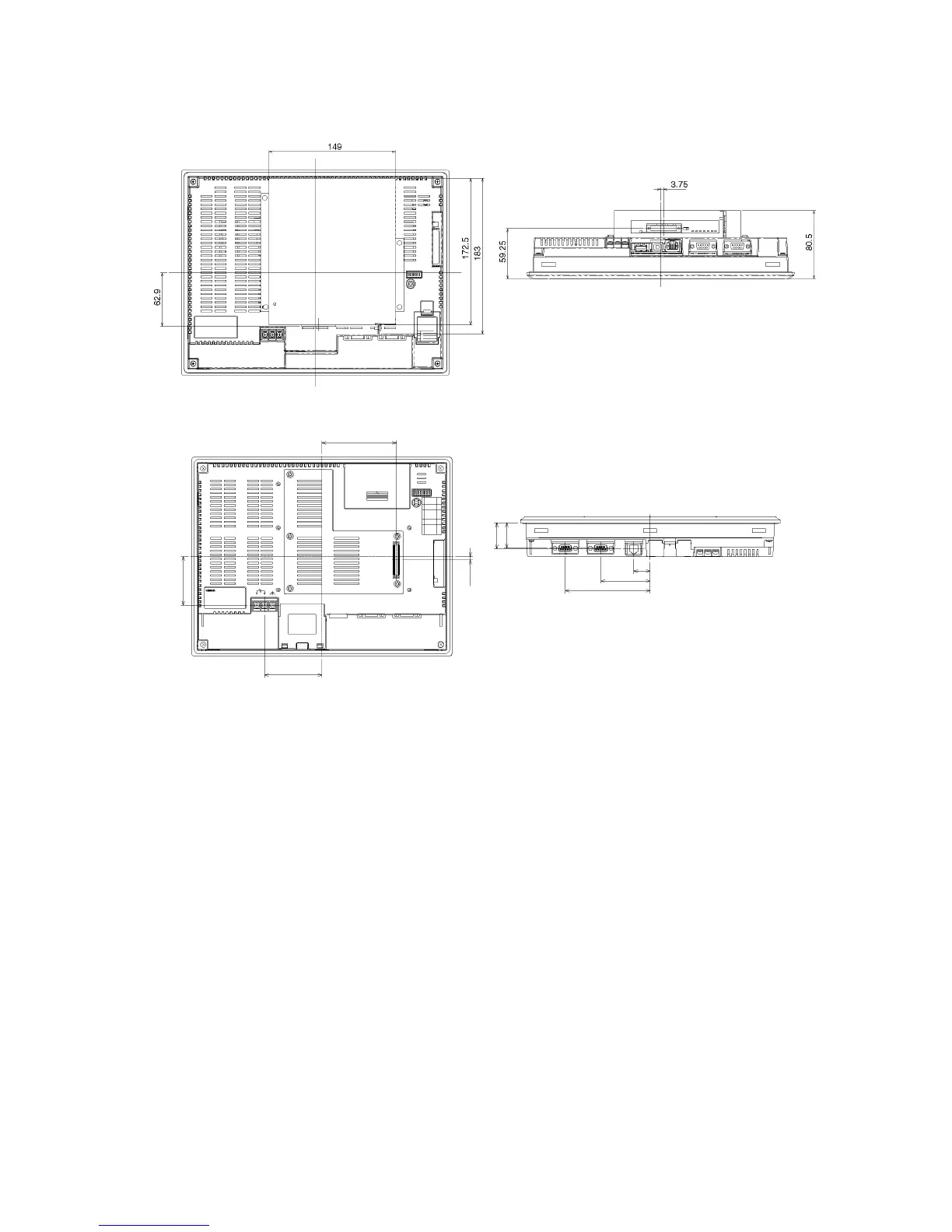

 NS12-V1/-V2 and NS10-V1/-V2 Controller Link Interface Unit Mounted Dimensions
 NS12/NS10 (without "V1") Cable Connection Dimensions
90.2
69.5
103
60
20
4.3
30.8 31.5
59.4
