3-7 Installing the Video Input Unit
3-40
Removing the Video Input Connector

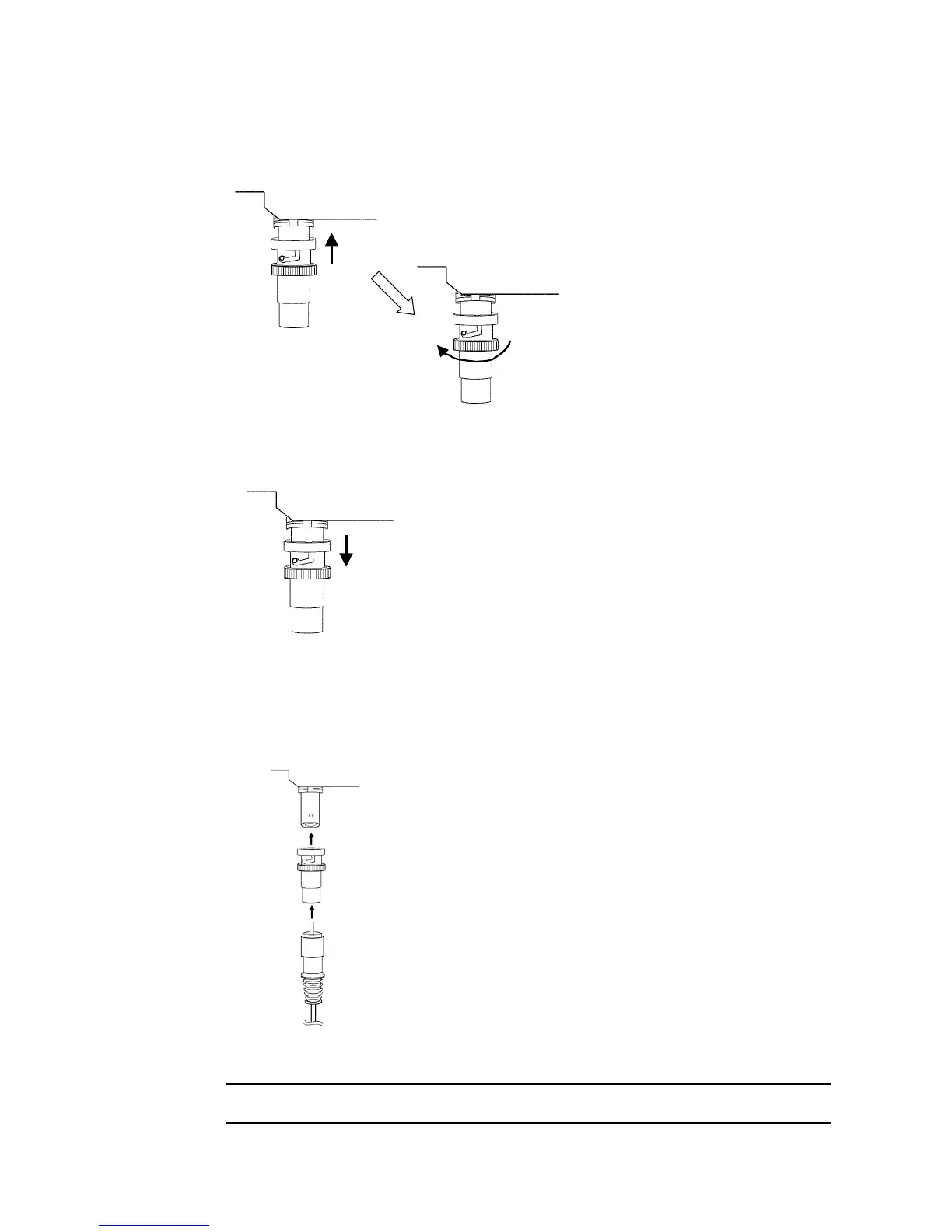

1. Unlock the BNC socket on the camera’s video output cable by twisting it counterclock-
wise while pushing it.
Twist counterclockwise
Push
2. After unlocking the BNC socket, pull it out.
Pull out
If the camera’s video output cable uses an RCA plug, connect it to the video input
connector using a BNC-RCA connector in the way shown below.
Video input connector
(BNC type)
BNC - RCA connector (See note.)
RCA plug
Note A BNC-RCA connector is provided with the Monitor Cable (F150-VM) for OMRON Vision
Sensors. It is not provided with the Video Input Unit (NS-CA001).
