3-7 Installing the Video Input Unit
3-41
Connecting to the Console Port Connector
Use the following method to connect the Video Board’s console port connector to the con-
sole connector of an OMRON Vision Sensor (F150-C10V3, F160-C10, F180-C10, F400-
C10V2, F250-C10, V530-R150V2).

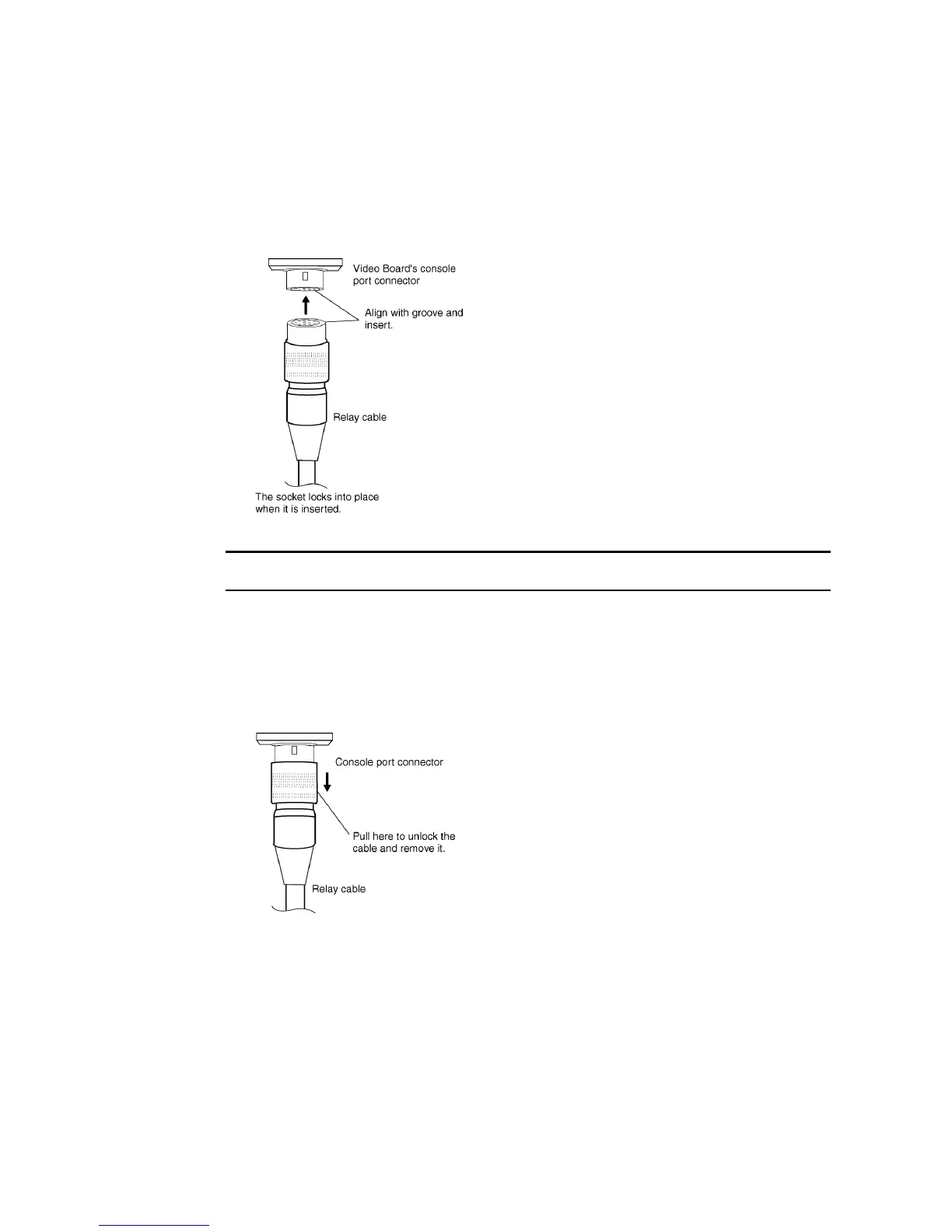

1. Insert the socket of the Relay Cable (F150-VKP; see note) into the Video Board’s con-
sole port connector.
Note The Relay Cable (F150-VKP) is the cable used to connect the Video Board’s console connec-
tor to the console connector of an OMRON Vision Sensor.
Removing the Console Port Connector
Use the following method to remove the Relay Cable from the Video Board’s console port
connector.
1. Remove the Relay Cable by pulling on the connector as shown below.
