1-4 Procedure for Running NS-series PTs
1-9

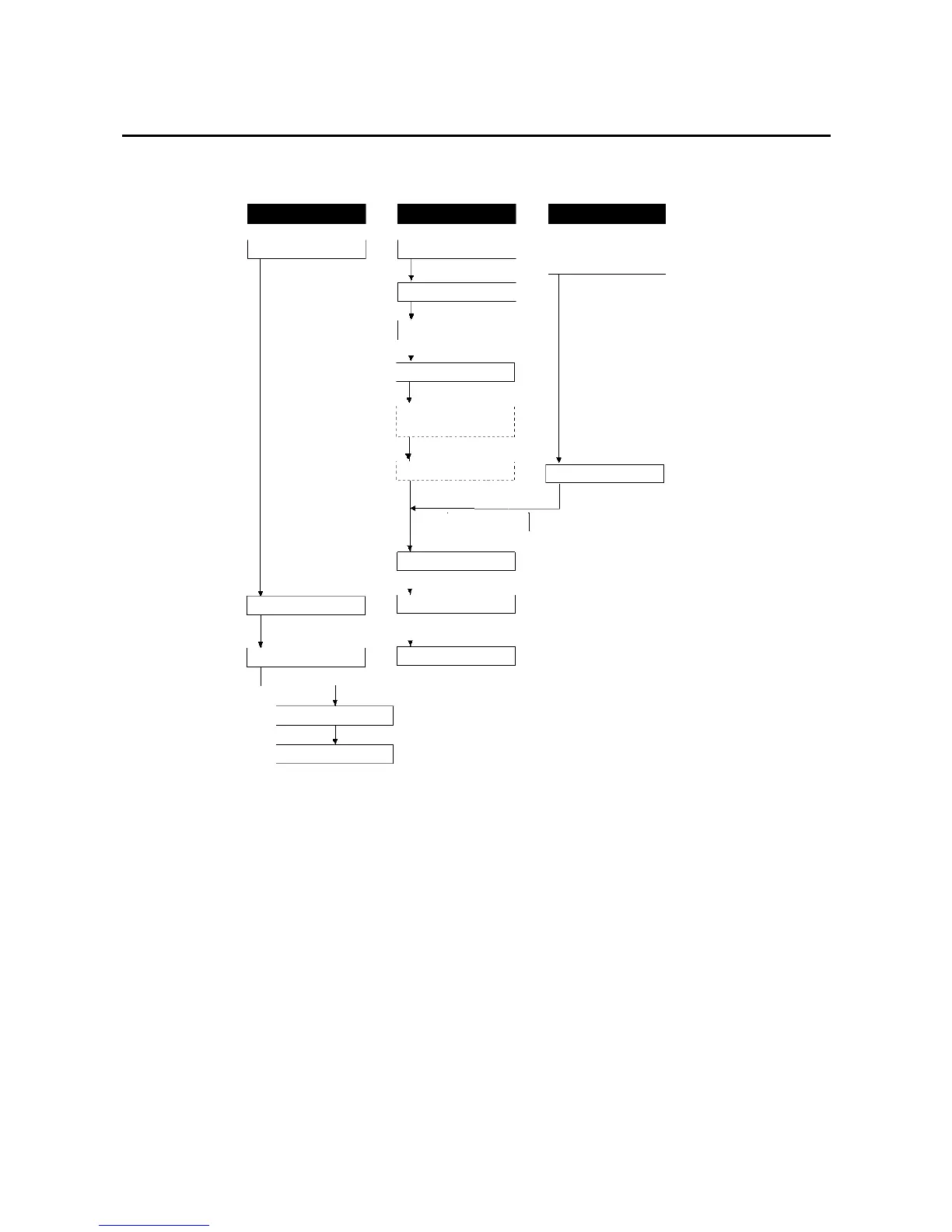

1-4 Procedure for Running NS-series PTs
Use the following procedure to start up the NS-series system.
Note 1. RUN mode is entered automatically if screen data already exists.
An error message is displayed if screen data does not exist. Transfer screen data from either
the NS-Designer or a Memory Card.
2. The system program is installed in special situations only, such as when the system program
is being changed or recovered.
3. The system menu can be operated as required to initialize data saved in the PT.
4. The system menu can be displayed by pressing two of the four corners of the touch panel.
5. When errors occur during operation, check I/O and setting statuses as required.
Host PT NS-Designer
Host settings Panel installation
Installation on the
computer
Refer to following pages.
1:1 NT Link: 4-2 and A-7
1:N NT Link: 4-10 and A-7
High-speed 1:N NT Link:
4-20 and A-7
Ethernet: Section 5
Controller Link: Section 5
Screen transfer
Peripheral connections
Power connections
Power ON
System program
installation
Data initialization
Screen creation
System menu settings
Host connections
Settings/com check
Operation
System maintenance
PT connections
Programming
Refer to NS-Designe
r
Operation Manual.
Refer to NS-series PT
Programming Manual
and NS-Designer
Operation Manual.
Refer to page 3-20.
Refer to NS-Designe
r
Operation Manual.
Refer to page 6-3.
RS-232C: Section 4
Ethernet: Section 5
Controller Link: Section 5
Refer to page 3-20.
Refer to page 3-4.
Refer to page 3-5.
See note 1.
See note 2.
See
note 3.
See note 4.
See note 5.
