Appendix 3 Dimensions
A-10
39 min.
42 max.
(Unit: mm)
Appendix 3 Dimensions

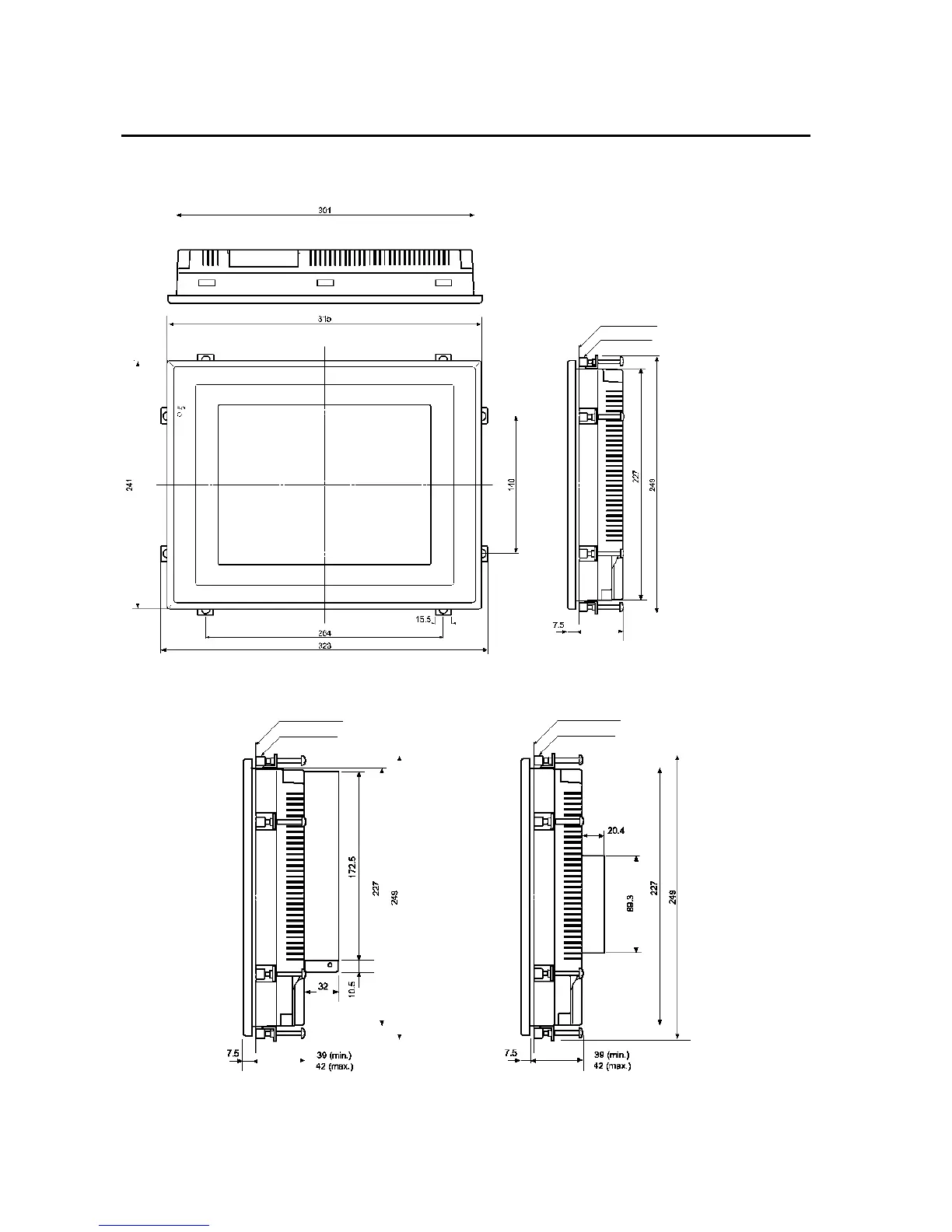

@ NS12/NS10 (Includes Mounting Dimensions)
With Controller Link Interface Unit Mounted With Video Input Unit Mounted
Mounting panel
Mounting bracket
Mounting panel
Mounting Bracket
Mounting panel
Mounting Bracket
