6-7 Screen Data Check
6-30
6-7 Screen Data Check
Registered screens (numbers 0 to 3,999) can be displayed and checked using operations
from the System Menu.
Reference
· The screen displayed when checking screen data is a sample and cannot be used to
communicate with the host. The flicker function is also disabled.
· Only the user screens (0 to 3,999) can be displayed. System screens cannot be dis-
played.

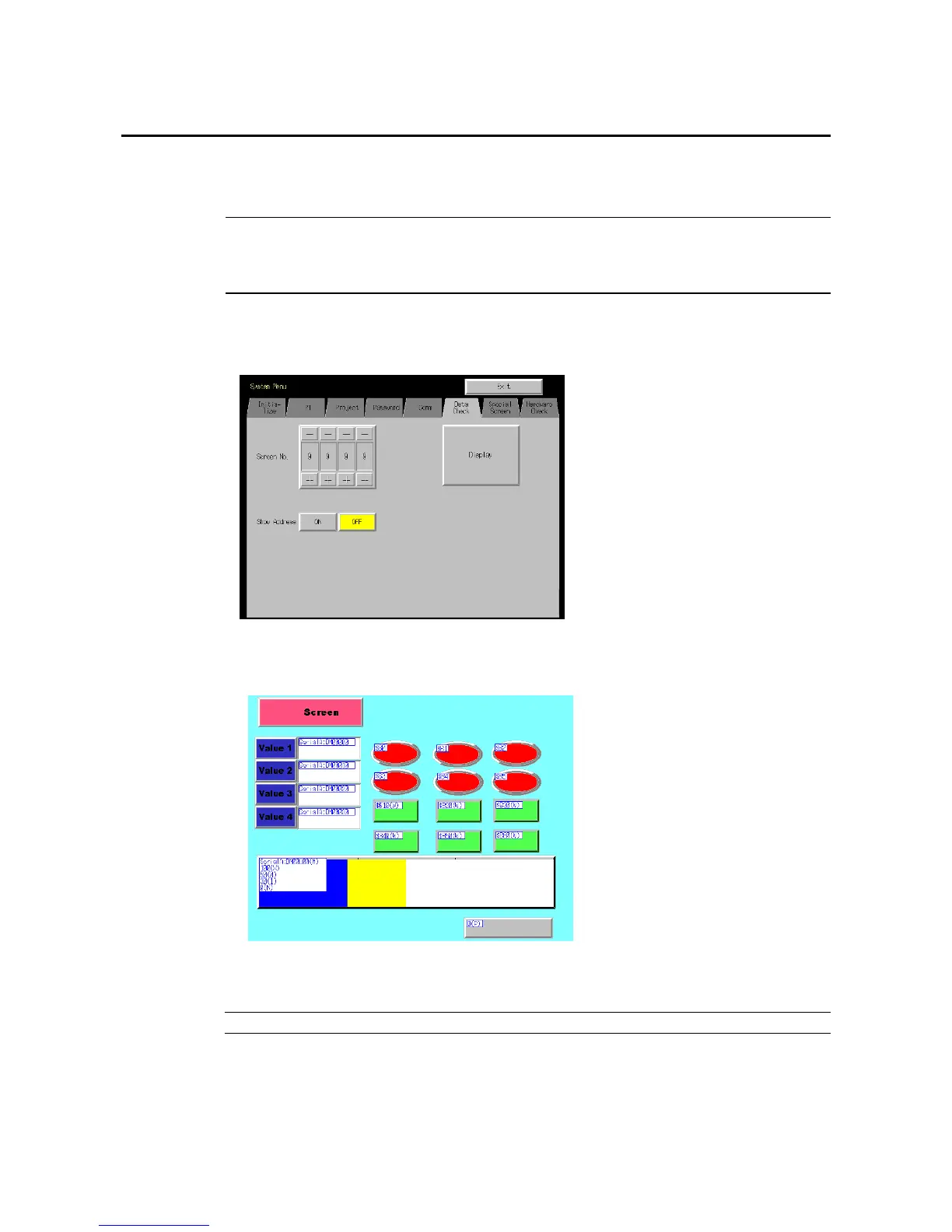

Display check screens by using the following procedure from the System Menu.
1. Select the Data Check Tab.
2. Set the screen number and press the Display Button to display the screen as a sample.
3. Press the ON Button next to the Show Address heading and display the sample screen to dis-
play the set address instead of the functional object label.
4. Press any part of the sample screen that is displayed to return to the Screen Data Check
Screen.
Reference Addresses are not displayed for data block tables.
To Next Page
