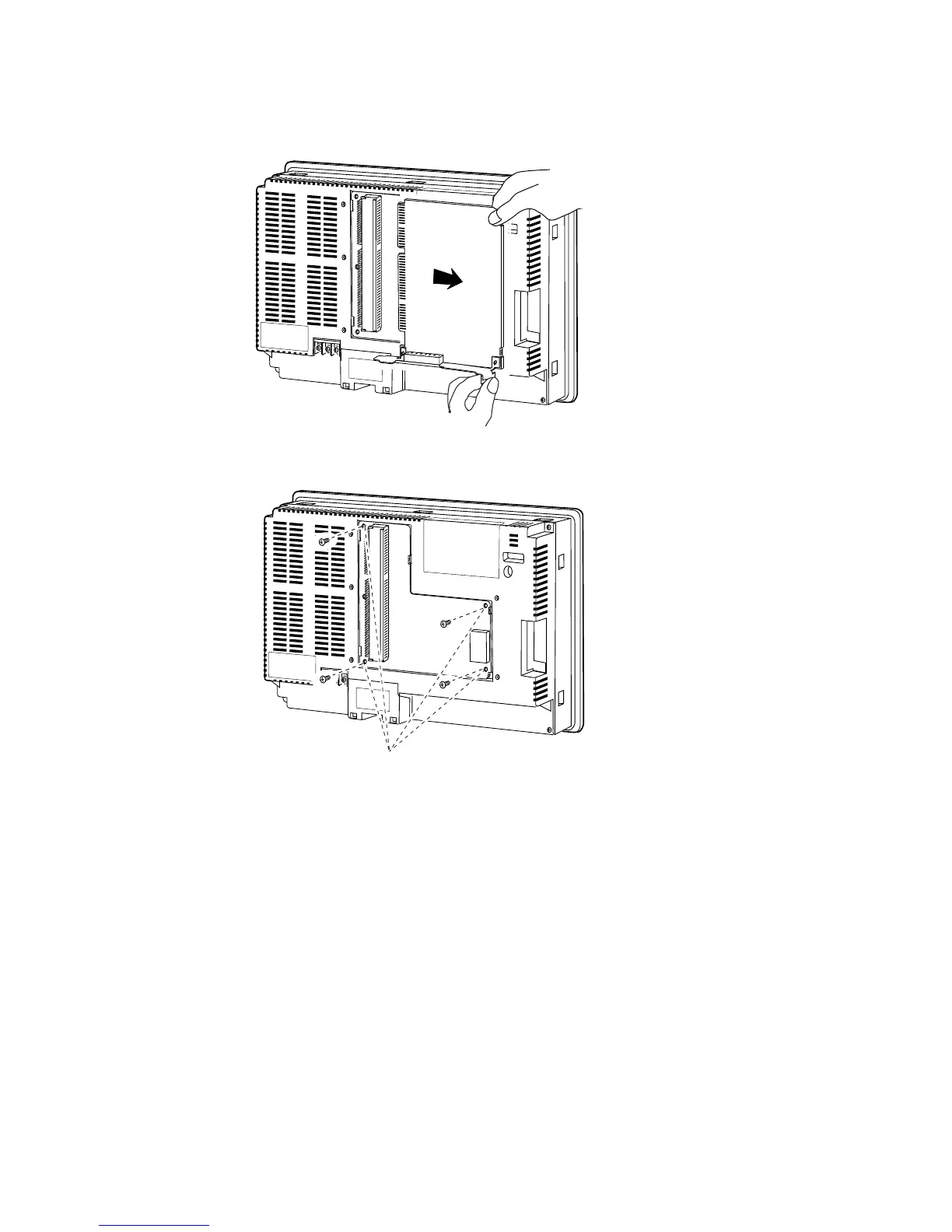

3-8 Installing the Controller Link Interface Unit
3-48
2.
Dis
connect the Controller Link
Suppor
t Board from the c
onnector conversion board.
Hold
both ends of the Controller Link
Suppor
t Board and pull out straight.
3.
Remove the screws from the Connector Conversion Board.
Hold both ends of
the
Controller Link
Suppor
t
Board and pull out s
traight.
Remove the four screws.
79
81
