Using a Memory Unit Section 3-5
3. Press the Japanese or English touch switches to select the display lan-
guage.
The following descriptions are for when English is selected.

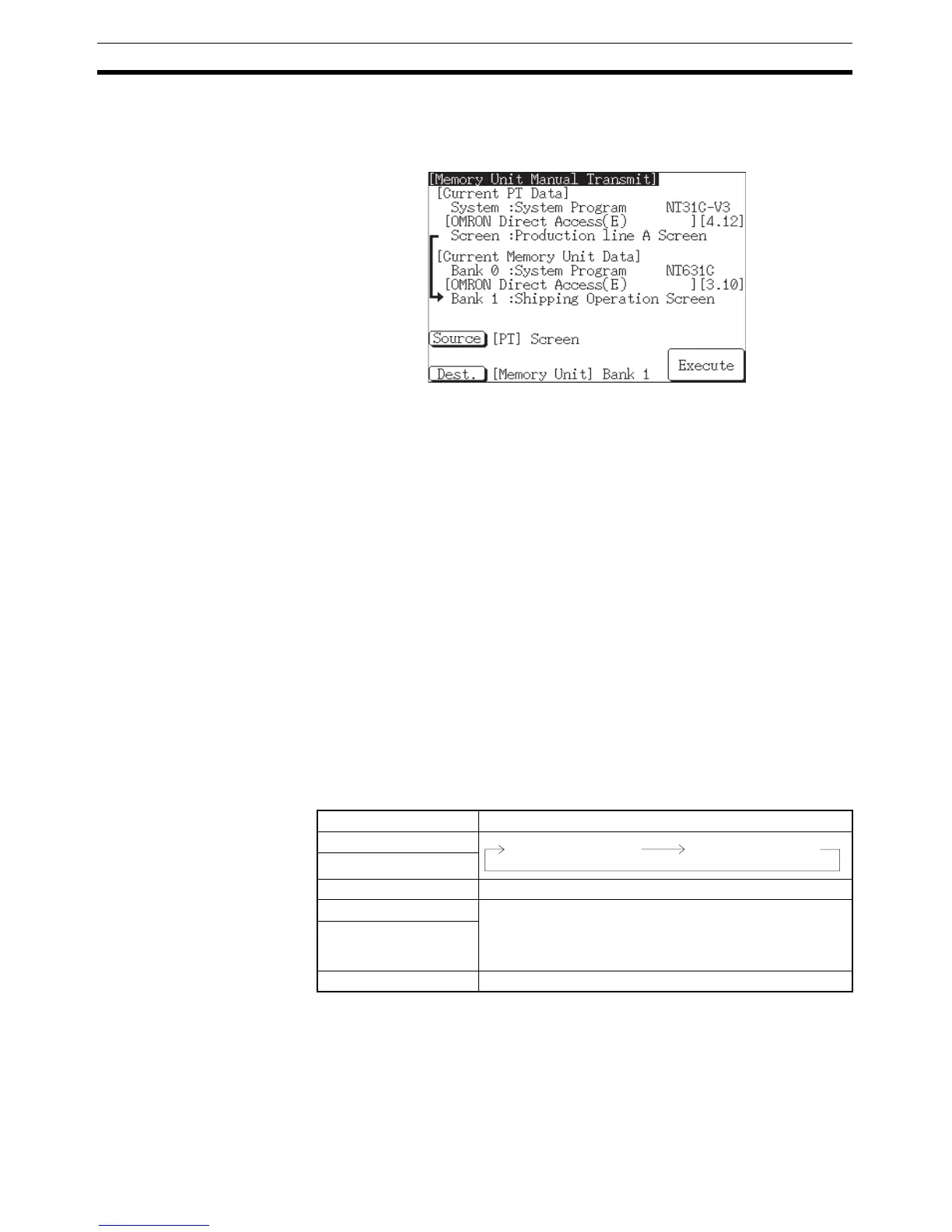

The screen shown below is displayed.
Current PT Screen Data, System
The first line: Compatible PT type for the system program inside PT.
The second line: System program name and Version for the system pro-
gram inside PT.
(The second line may not be displayed in the kind of system program.)
Current PT Screen Data, Screen
The comment for the screen data in the NT31/NT31C is displayed here.
Current Memory Unit Screen Data
• In the case of system program:
The first line: Compatible PT type for the system program inside the
Memory Unit.
The second line: System program name and Version for the system pro-
gram inside the Memory Unit.
(The second line may not be displayed in the system program for some
models.)
• In the case of screen data:
The comment for the screen data in the NT31/NT31C is displayed here.
The available transmitting destinations are altered depending on the settings
of the origin of transmitting as described in the table below.
Reference: • When transmitting the system program and screen data simultaneously
from the PT to the Memory Unit, the setting of banks is Bank 0: system
program, Bank 1: screen data, and when transmitting them from the
Memory Unit to the PT, either of the following combinations must be used.
Bank 0: system program, Bank 1: other than system program
Bank 0: other than system program, Bank 1: system program
Source Destination
[PT]screen
[PT]system
[PT]system/screen [Memory Unit] Bank 0/1 (fixed)
[Memory Unit] Bank 0 • If system program is selected
[PT]system (fixed)
• If screen data is selected
[PT]screen (fixed)
[Memory Unit] Bank 1
[Memory Unit] Bank 0/1 [PT]system/screen (fixed)
[Memory unit] Bank 0
[Memory unit] Bank 1
