Transmitting the Screen Data Section 6-6
• If the screen data is cleared in the System Installer mode, the message
Screen Data Corrupted may be displayed on switching to the RUN mode.
If this happens, initialize the screen data again from the MEMORY INIT.
MENU screen.
Clear the screen data by following the menu operation from the System
Installer mode menu shown below.
• If Return to Menu is selected, the NT31/NT31C returns to the MEMORY
INIT. MENU screen without clearing the screen data.
• If screen data clearance fails, a screen asking if you wish to try again is
displayed.
On completion of screen data clearance, the NT31/NT31C returns to the Sys-
tem Installer mode menu screen.
After the screen data has been cleared, if an attempt is made to set the NT31/
NT31C to the RUN mode before screen data has been transmitted from the
Support Tool or Memory Unit, an error message will be displayed and the
RUN mode will not be established.
6-6 Transmitting the Screen Data
The screen data is created with the Support Tool and then transmitted to the
NT31/NT31C. This section explains how to transmit the screen data.
For details on how to create the screen data and the operation of the Support
Tool, refer to the Reference Manual and the NT-series Support Tool Ver. 4.@
for Windows Operation Manual (V061-E1-@).
Reference: • The screen data can be transmitted also from the Memory Unit installed
in the NT31/NT31C. For details on this method, refer to 3-5 Using a Mem-
ory Unit.
• The screen data can be transmitted at a faster rate by setting High for
Baud Rate on the Comms. Setting... window of the Support Tool.

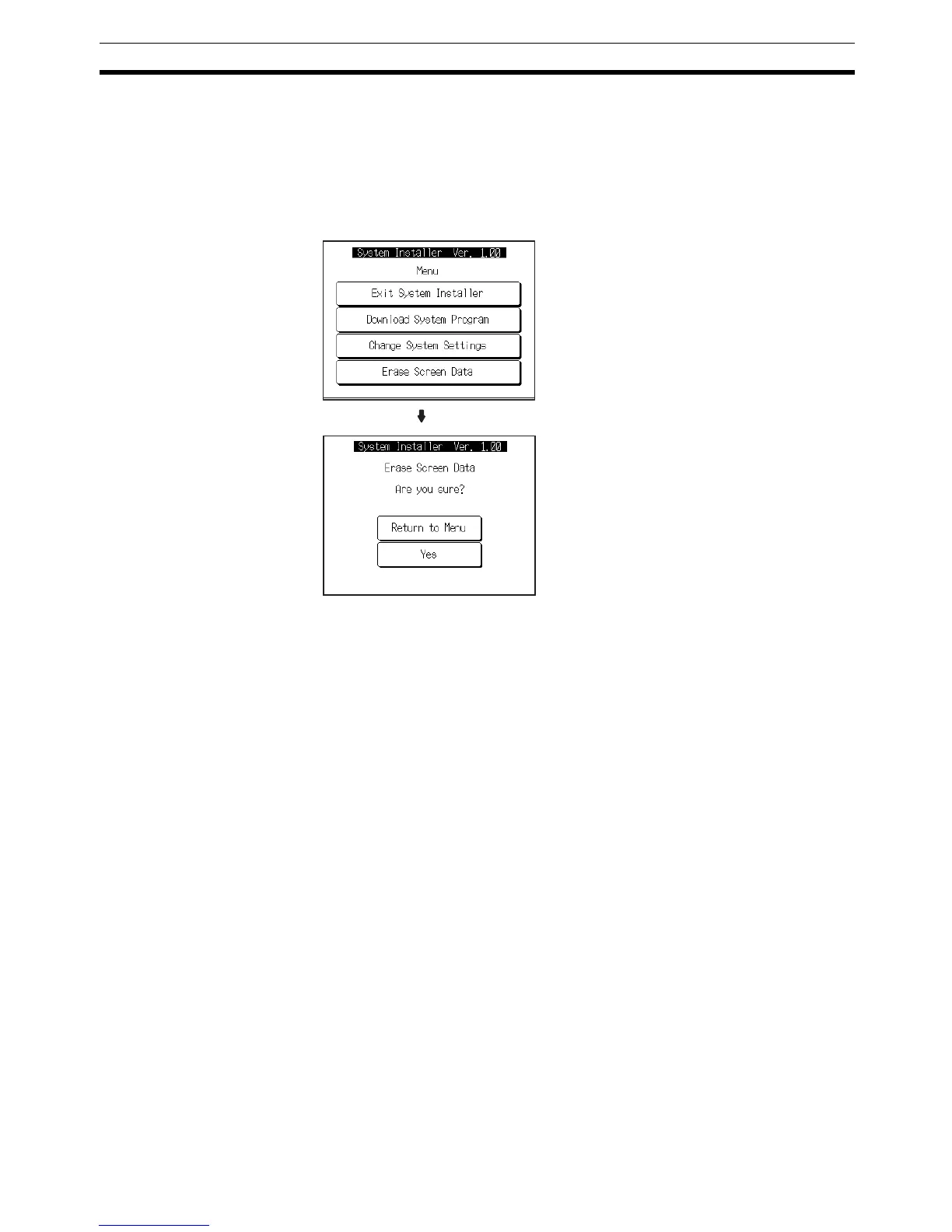

Select Erase Screen Data.
Select Yes.
The screen data is cleared. During
clearance, the message Erasing ... is
displayed.
To Next Page
