Appendix F
Making the Cable for Connecting a PLC
Refer to the following when making a cable for connecting the Support Tool.

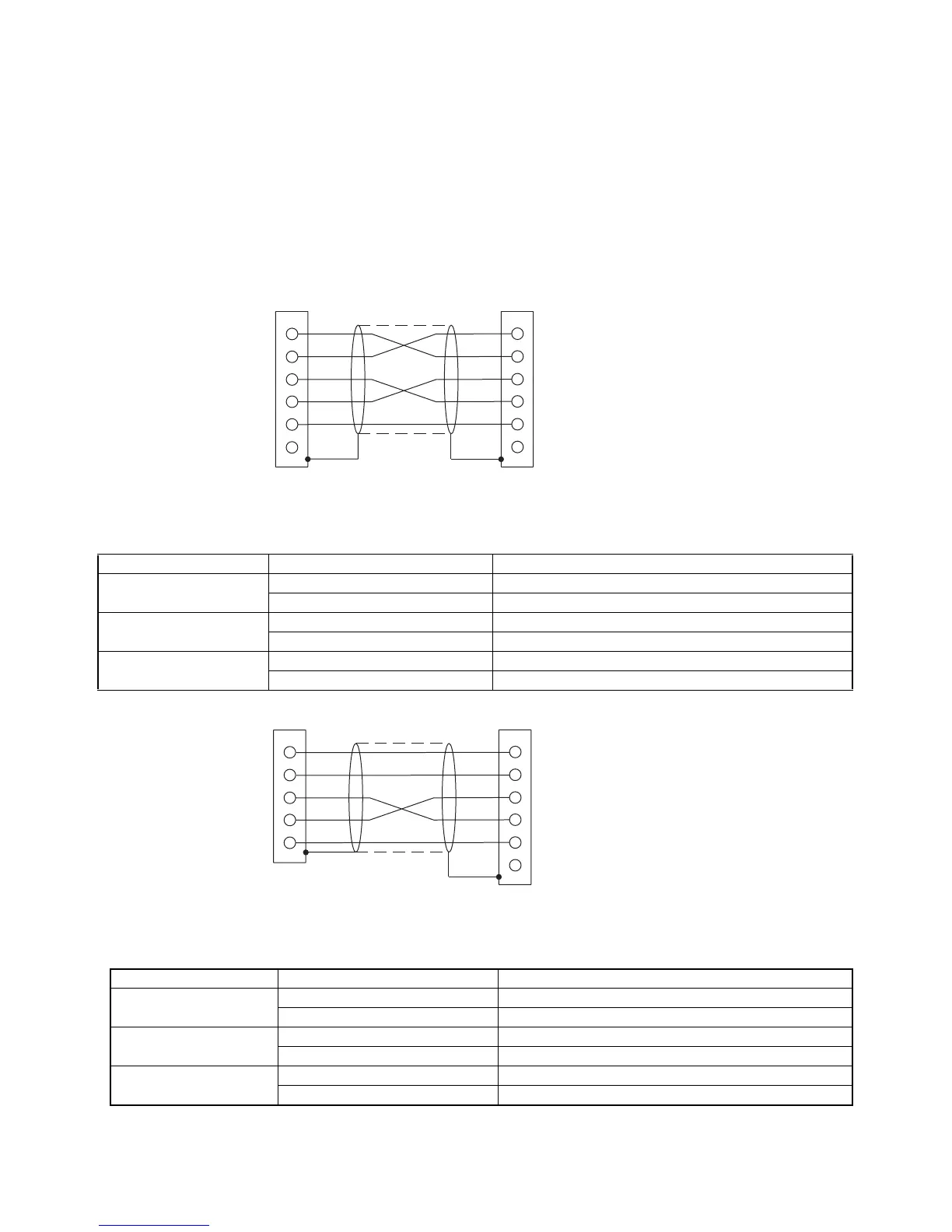

Assembly of Connecting Cables
Wiring should be carried out in one of the following ways, depending on the type of RS-232C connector.
25-pin Connector
Note Please connect the shielding wire to the connector hood at both the personal computer and the periph-
eral device connector on the PT.
Use the following recommended products when making the connecting cable.
9-pin Connector
Note Please connect the shielding wire to the connector hood at both the personal computer and the periph-
eral device connector on the PT.
Use the following recommended products when making the connecting cable.
* One XM2S-0911 (for PT) and either one XM2S-0911 or -0913 (for your personal computer) are needed.
SD
RD
RS
CS
SG
FG
Personal computer Connector for peripheral devices on P
Shielding wire
Connector hood
2
3
4
5
7
1
SD
RD
RS
CS
SG
2
3
4
5
9
Connector hood
Name Model Remarks
Connector XM2D-2501 25-pin, made by OMRON, for personal computer side
XM2A-0901 9-pin, made by OMRON, for PT side
Connector hood XM2S-2511 25-pin, made by OMRON, for personal computer side
XM2S-0911 9-pin, made by OMRON, for PT side
Cable AWG28
×5P IFVV-SB Multi-core shielded cable, made by Fujikura Ltd.
CA-MA-VV-SB 5P
×28AWG Multi-core shielded cable, made by Hitachi Cable, Ltd.
RD
SD
RS
CS
SG
Personal computer Connector for peripheral devices on PT
Shielding wire
Connector hood
2
3
7
8
5
SD
RD
RS
CS
SG
2
3
4
5
9
Connector hood
Name Model Remarks
Connector XM2D-0901 9-pin, made by OMRON, for personal computer
XM2A-0901 9-pin, made by OMRON, for PT
Connector hood* XM2S-0911 9-pin, mm pitch screw, made by OMRON
XM2S-0913 9-pin, inch pitch screw, made by OMRON
Cable AWG28
×5P IFVV-SB Multi-core shielded cable, made by Fujikura Ltd.
CA-MA-VV-SB 5P
×28AWG Multi-core shielded cable, made by Hitachi Cable, Ltd.
To Next Page
