Omron NT31 Setup Manual

268

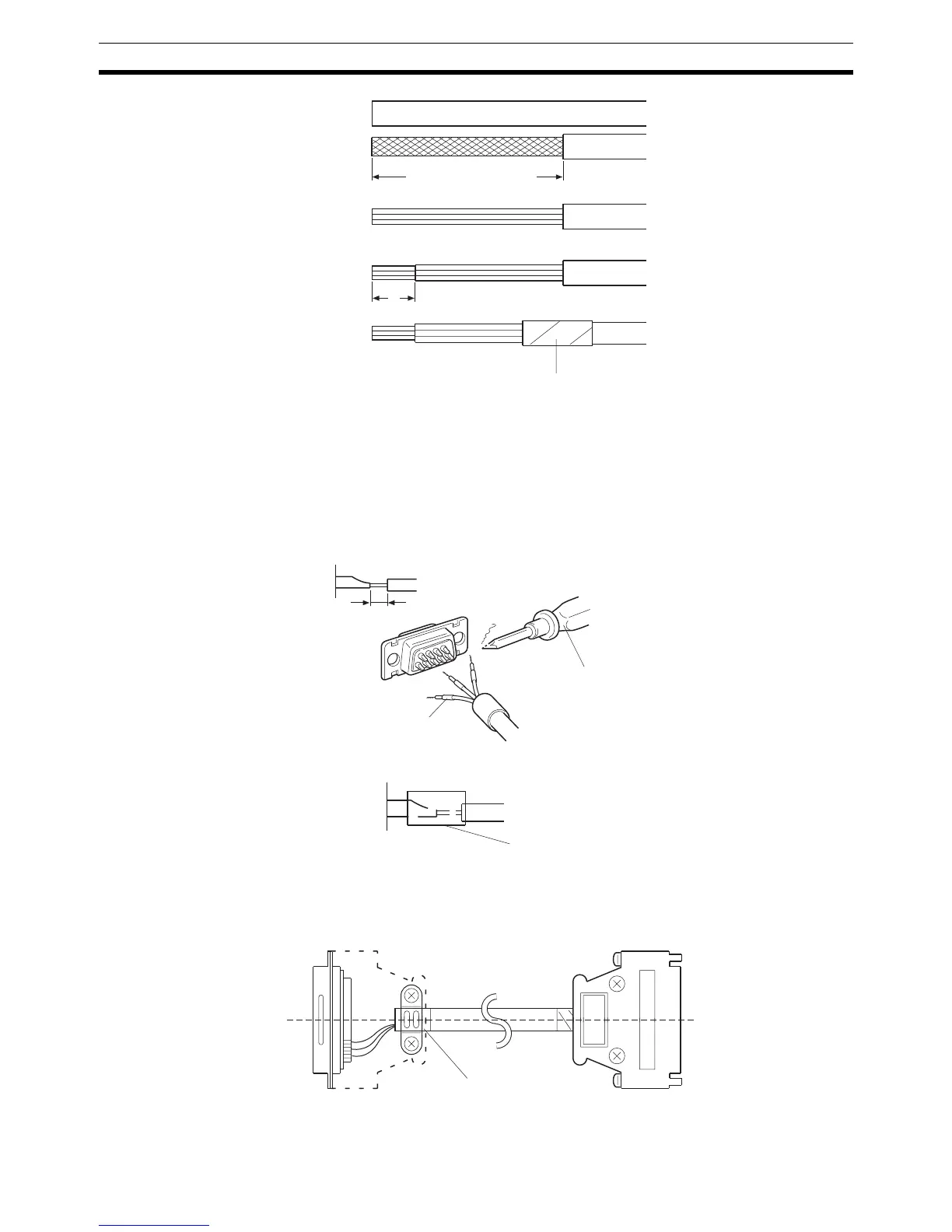

Making the Cable Appendix E
Soldering
1,2,3...
1. Slide heat-shrink tube over each wire.
2. Pre-solder each wire and connector terminal.
3. Solder each wire to each connector terminal.
4. Push the heat shrink tube over the soldered joint and heat the tube to shrink it in place.
Hood Assembly
Assemble the connector hood as shown below.
40 (1.57) (RS-232C)
5
25 (0.98) (RS-422A)
(1)
(2)
(3)
(4)
(5)
Units: mm (inch)
Vin
y
l ta
p
e
(0.19)
Soldering iron
1 mm
Heat-shrink tube
(F, 1.5 mm dia., l = 10 mm)
Heat-shrink tube
Aluminum foil tape
End connected to FG End not connected to FG
