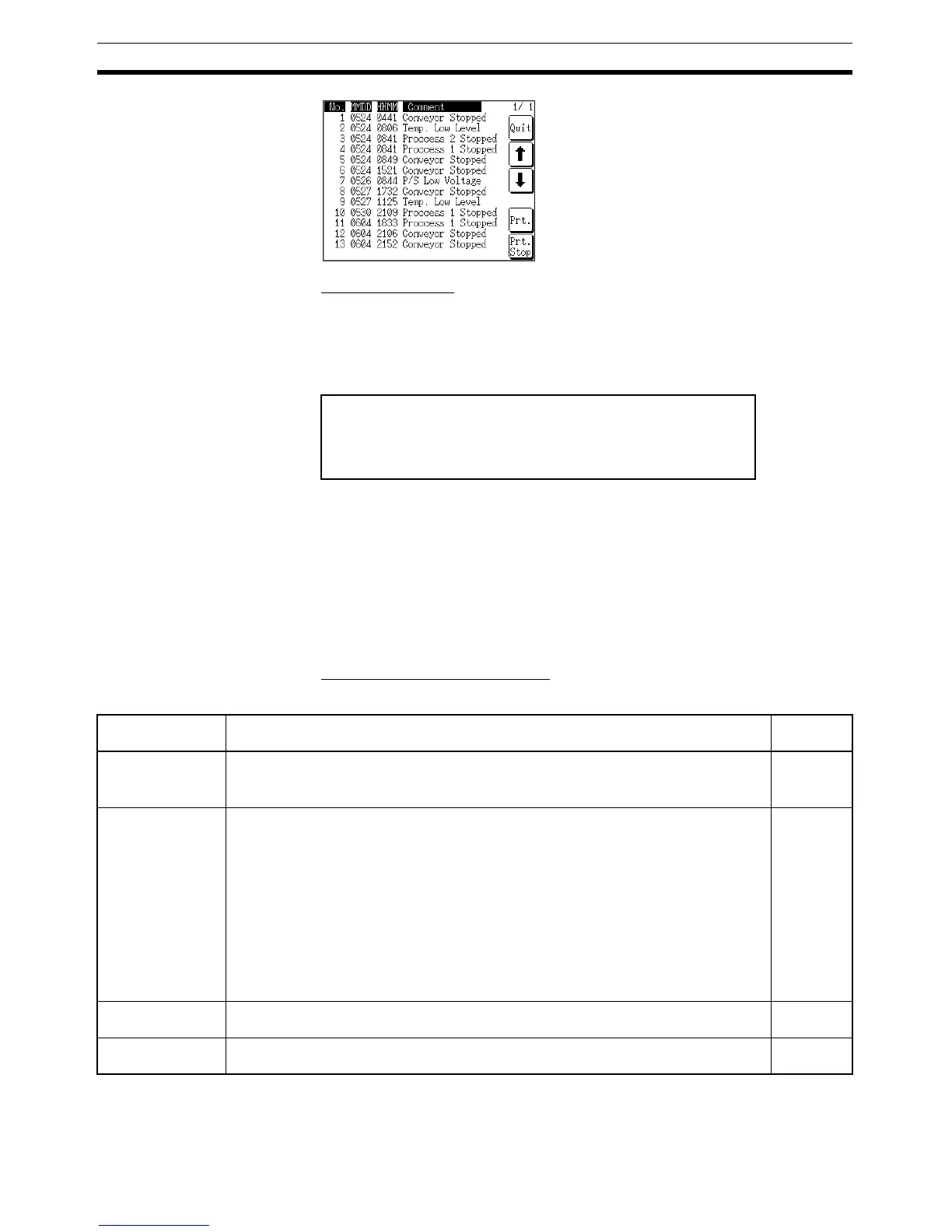

202
System Maintenance Section 6-11
Example Print-out
All of the recorded data is printed out in the same order as on the currently
displayed screen.
Example:
Sort by occurrence method, from oldest record
6-11-6 Checking Screen Data
The NT31/NT31C allows the registered screens (Nos. 1 to 3999) to be dis-
played and checked by operation from the System Menu.
Reference: • Window screens cannot be displayed by operation from the System
Menu.
• Only the user screens (Nos. 1 to 3999) can be displayed. Screens for sys-
tem use cannot be displayed.
Specifying The Display Method
Specify the display method for the screens as indicated in the table below.
* Default (factory) setting
No. Comment YY/MM/DD HH:MM 01/01
1 Remote I/O Error 98/02/06 16:02
2 PIC Unit Error 98/02/07 09:21
3 Cycle Time Over 98/02/17 15:44
Press Quit.
The NT31/NT31C returns to the ALARM
HISTORY MENU screen.
Setting Item Function Setting
Options
Display of Lamp/
Touch SW No.
Allows designation of whether the bit number of the lamp bit set for a lamp or touch
switch is displayed or not.
The display format is as follows L@❍❍❍❍❍❍❍ (@: area type, ❍❍❍❍❍❍❍: bit number).
ON, OFF*
Display of Memory
Tabl e No.
Allows designation of whether the table numbers of numeral and character string mem-
ory tables are displayed or not.
The display format for numeral memory tables is N❍❍❍❍ and the display format for
character string memory tables is S❍❍❍❍.
This function is valid for the following display elements.
- Numeral displays
- Character string displays
- Bar graphs
- Numeral setting input fields (including thumbwheel type)
- Character string input fields
ON, OFF*
Display of image/
Library No.
Allows designation of whether image/library code numbers are displayed or not. ON, OFF*
Display of Broken
Line Frame
Allows designation of whether or not broken line frames are displayed around the dis-
play elements for showing the positions registered.
ON, OFF*
To Next Page
