49
Connecting to the RS-232C Port at the Host Section 4-1

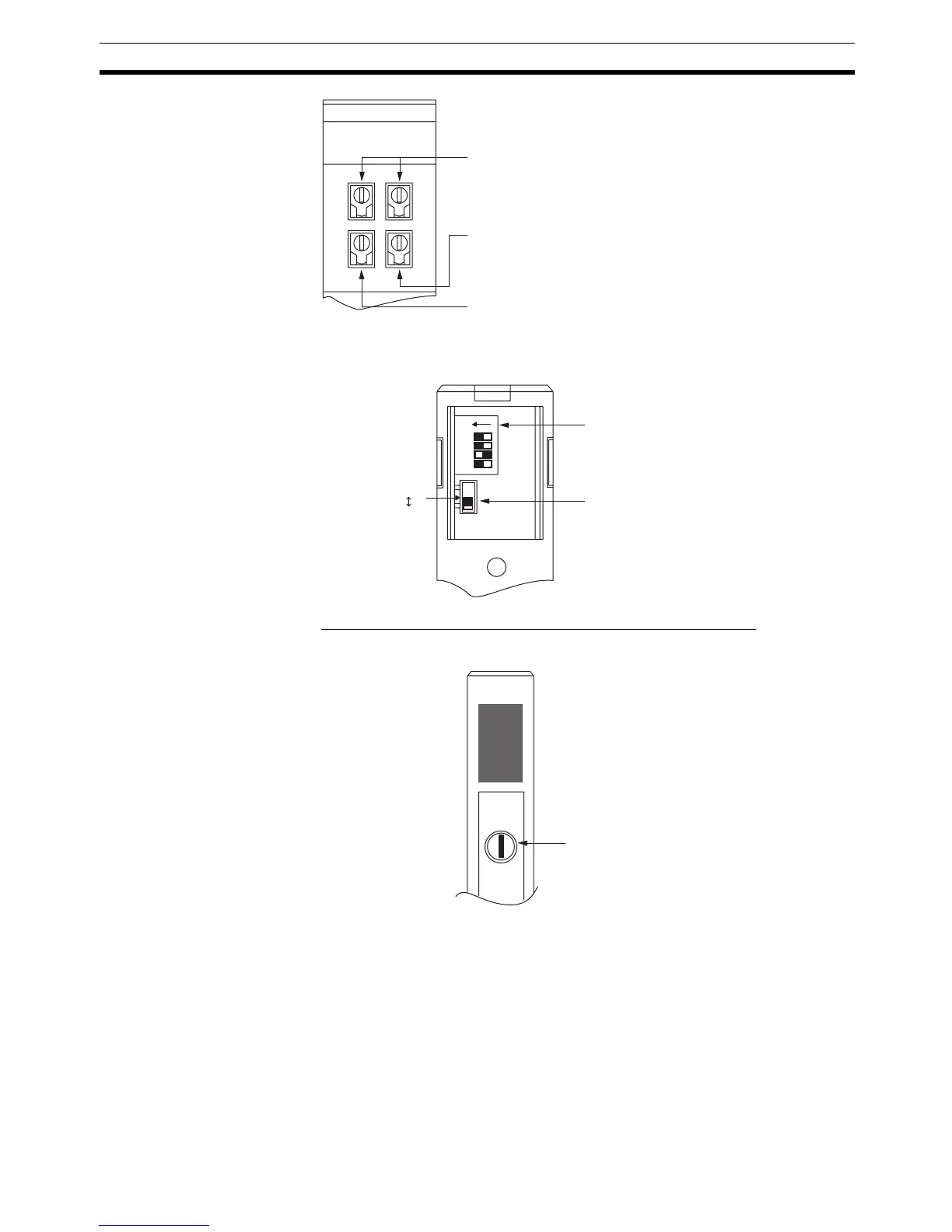

Setting the Rear Switches
C1000H(F)/C2000H Rack-mounting Unit: 3G2A5-LK201-EV1
Setting the Front Switches
LK201
RUN
RCV
XMT
ERROR
SW1
0
0
5
2
• Unit # (SW1, SW2)
Set these switches to 0.
• Instruction level, parity, and transfer code (SW4)
Set this switch to 2.
• Communications speed (SW3)
Set this switch to 5 to select 9600 bps.
Set this switch to 6 to select 19200 bps.
SW3
SW2
SW4
ON
1
CTS selector switch
External
0 V (ON)
• 1-to-1/1-to-N selection (DIP switch)
Set #3 to ON.
• CTS selection (selector switch)
Set this always to 0 V (ON).
2
3
4
Local
Host
Mode control (key switch)
Set this to host link.
