Periodic Inspection and
Maintenance
8
8.5 Replace the Drive
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 341
2. Tighten the M3 screws to a tightening torque of 0.5 N∙m to 0.6 N∙m (4.4 lb.∙in. to 5.3 lb.∙in.).

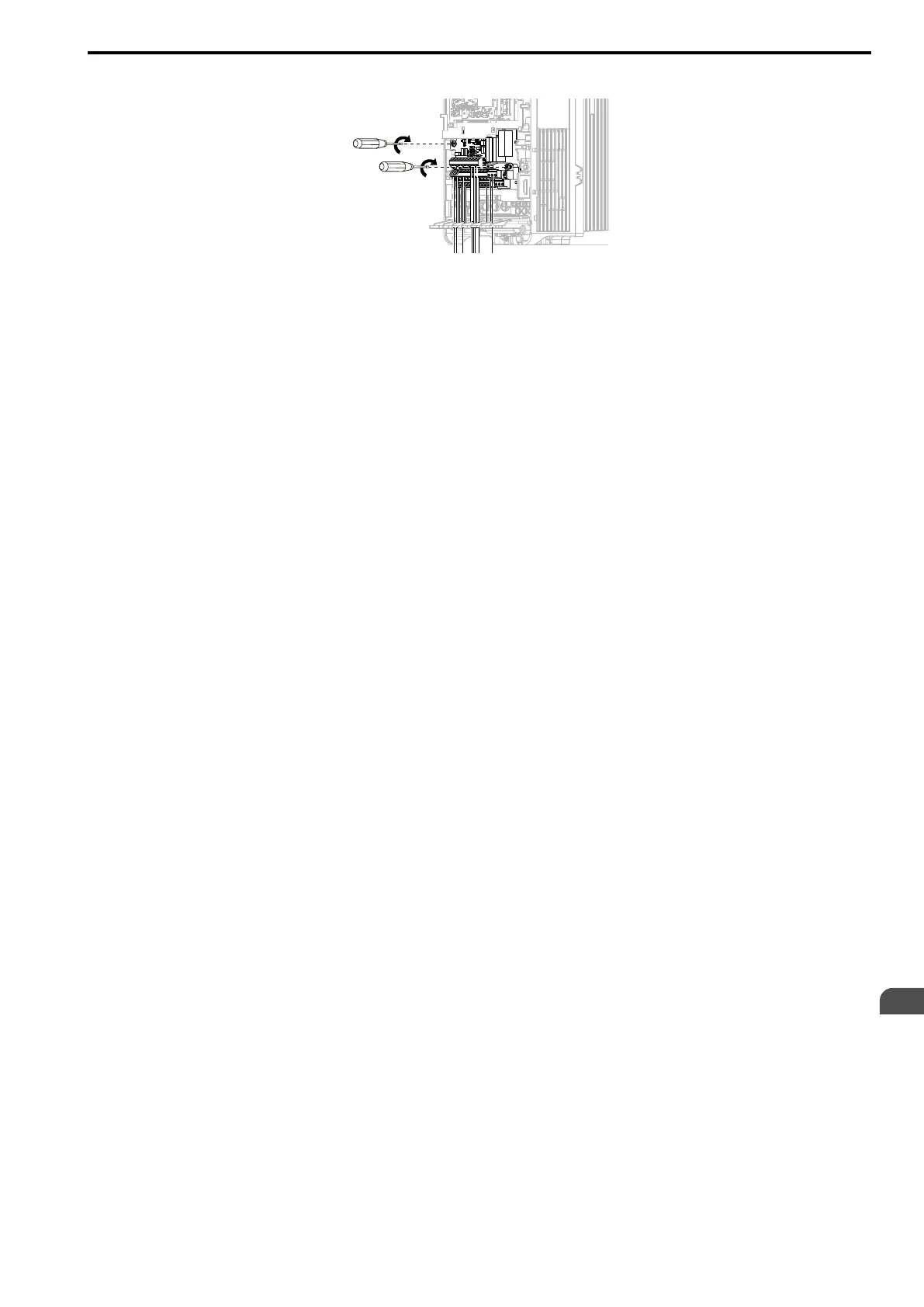

Figure 8.74 Safety the Terminal Block
3. Install the front cover and the keypad to their initial positions.
4. Check o2-04 [Drive KVA Selection].
Note:
• When you save parameter information in a keypad that you installed before you replaced the terminal block, make sure that you use
that keypad to restore the parameter data.
• To reset the performance life monitors for the components, set Maintenance Period o4-01 to o4-13.
