4-5
4-1 Monitor Mode
4
Functions
Motor Temperature Monitor [d019]
•Displays the temperature of the thermistor connected between the control circuit terminals TH and
PLC.
•Set thermistor selection b098 to "02" (NTC enabled).
(Display)
0.0 to 200.0: Displays in increments of 0.1C.
Note: When b098 = "01" (PTC enabled), the motor temperature monitor is disabled.
Life Assessment Monitor [d022]

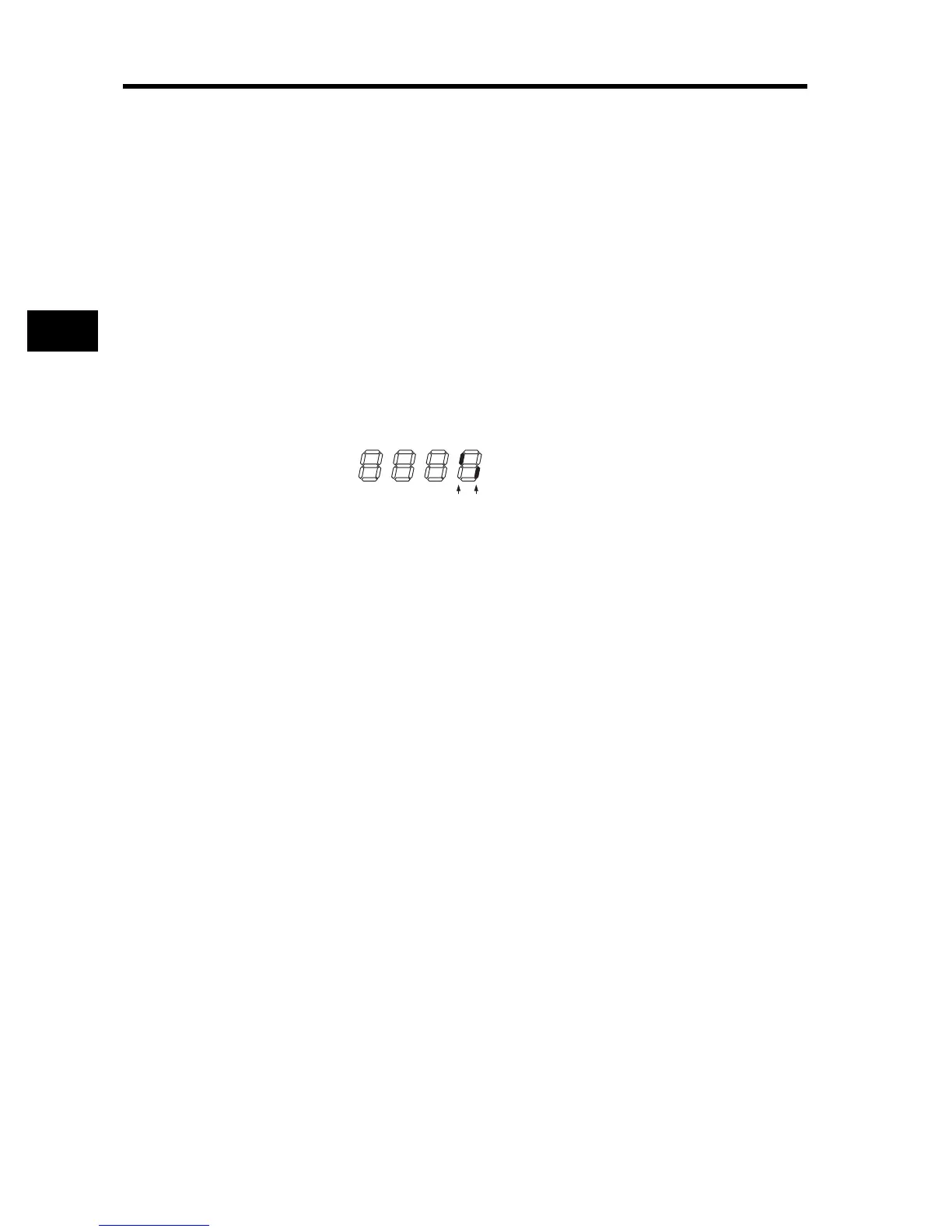

•The LED lighting position indicates a life assessment result.
The following two items can be monitored:
1: Main circuit board capacitor service life
2: Cooling fan rpm reduction
Note 1: The capacitor service life is calculated every 10 minutes. If the Inverter is turned on/off
frequently within this interval, the capacitor service life cannot be correctly diagnosed.
Note 2: While the cooling fan is stopped with b092 set to "01", the cooling fan rpm is judged as being
normal.
Pulse Counter Monitor [d028]
You can monitor a total pulse count of multi-function input function pulse counter 74 (PCNT).
Position Command Monitor (Absolute Position Control Mode) [d029]
You can monitor a position command in absolute position control mode.
Note:
This monitor is enabled only when V2 control mode selection P012 is set to "02" or "03" in
sensor vector control mode.
Current Position Monitor (Absolute Position Control Mode) [d030]
You can monitor the current position in absolute position control mode.
Note:
This monitor is enabled only when V2 control mode selection P012 is set to "02" or "03" in
sensor vector control mode.
Fault Frequency Monitor [d080]
Displays the number of times the Inverter has tripped.
(Display)
0. to 9999. : Displays in increments of 1 time.
1000 to 6553 : Displays in increments of 10 times.
