3 Installation and connection
S8BA-24D24D□□□LF
3
3-2-3 Connecting the input power supply to the input terminal block

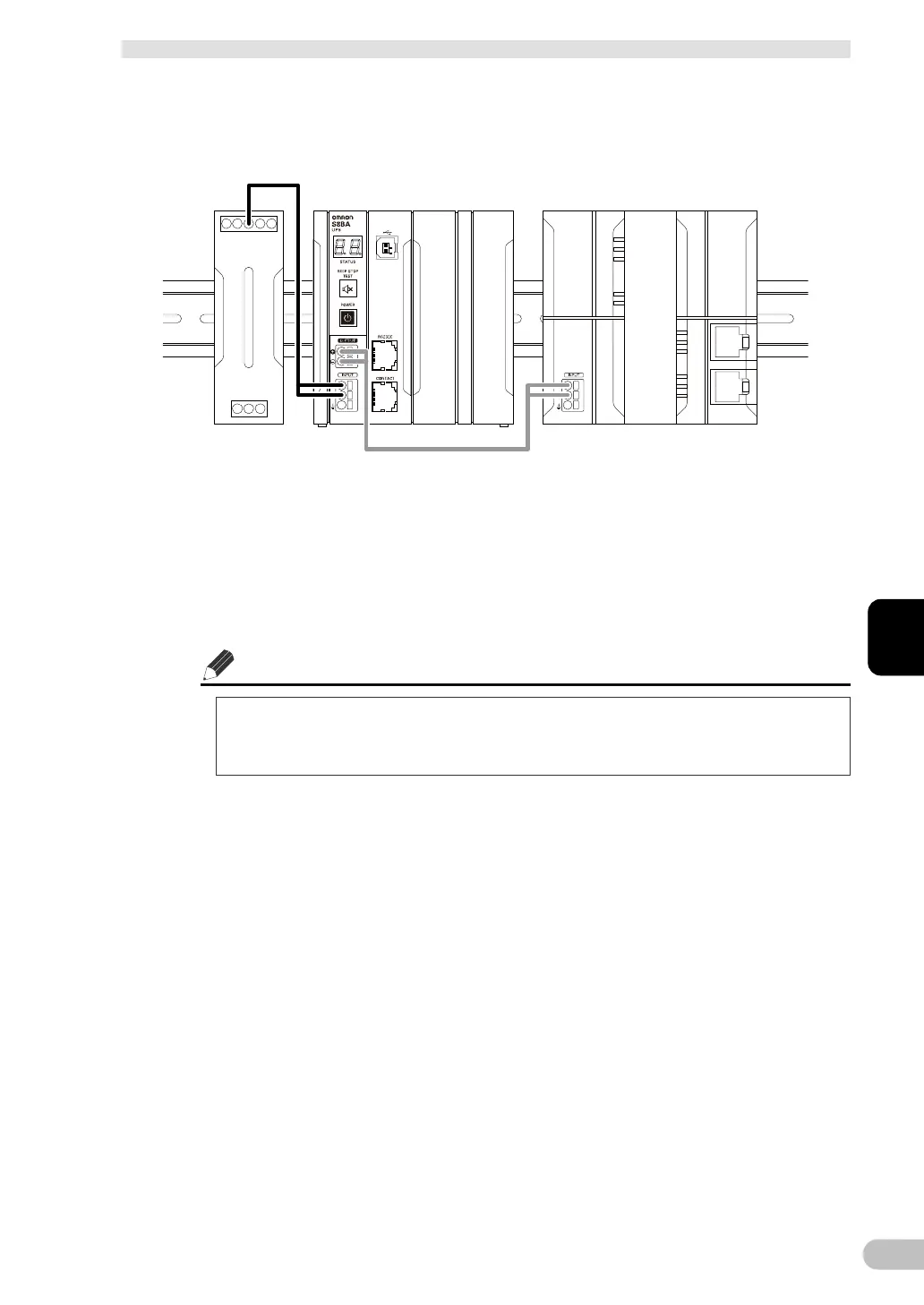

1. Connect an input cable to the input terminal block of the unit.
DC power supply
device (DC24V)
Connected deviceUPS
2. Connect the input cable to the DC power supply device.
Turn the input power supply ON and turn the “Power” switch ON, and power output
operation starts, and at the same time, battery charging operations starts; the battery
will be completely charged in about 4 hours.
Notes
Note that the battery in this unit has not been charged prior to shipment. Charge the
battery when you use the UPS for the first time.
To Next Page
