3 Installation and connection
3-1 Installation
S8BA-24D24D□□□LF
36
3-1-2 Wall or floor mounting procedure

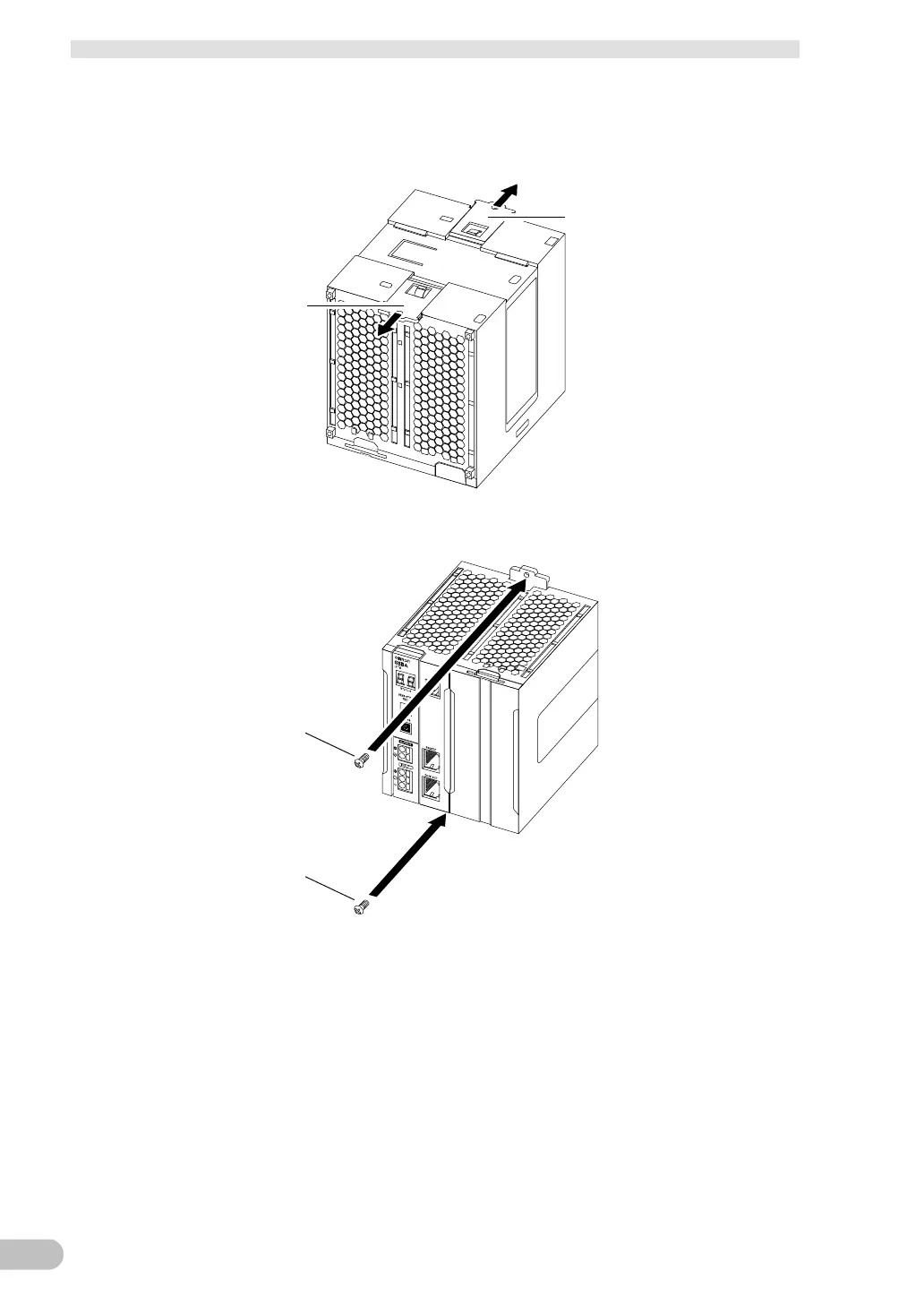

1. Open the “DIN rail mounting hooks” in the back of the UPS.
DIN rail mounting hooks
DIN rail mounting hooks
2. Use the screw holes of the “DIN rail mounting hooks” to fix the UPS to the floor or wall
with screws.
Screw
Screw
