3 Installation and connection
3-1 Installation
S8BA-24D24D□□□LF
34
3-1-1 DIN rail installation
■ How to mount to the DIN rail

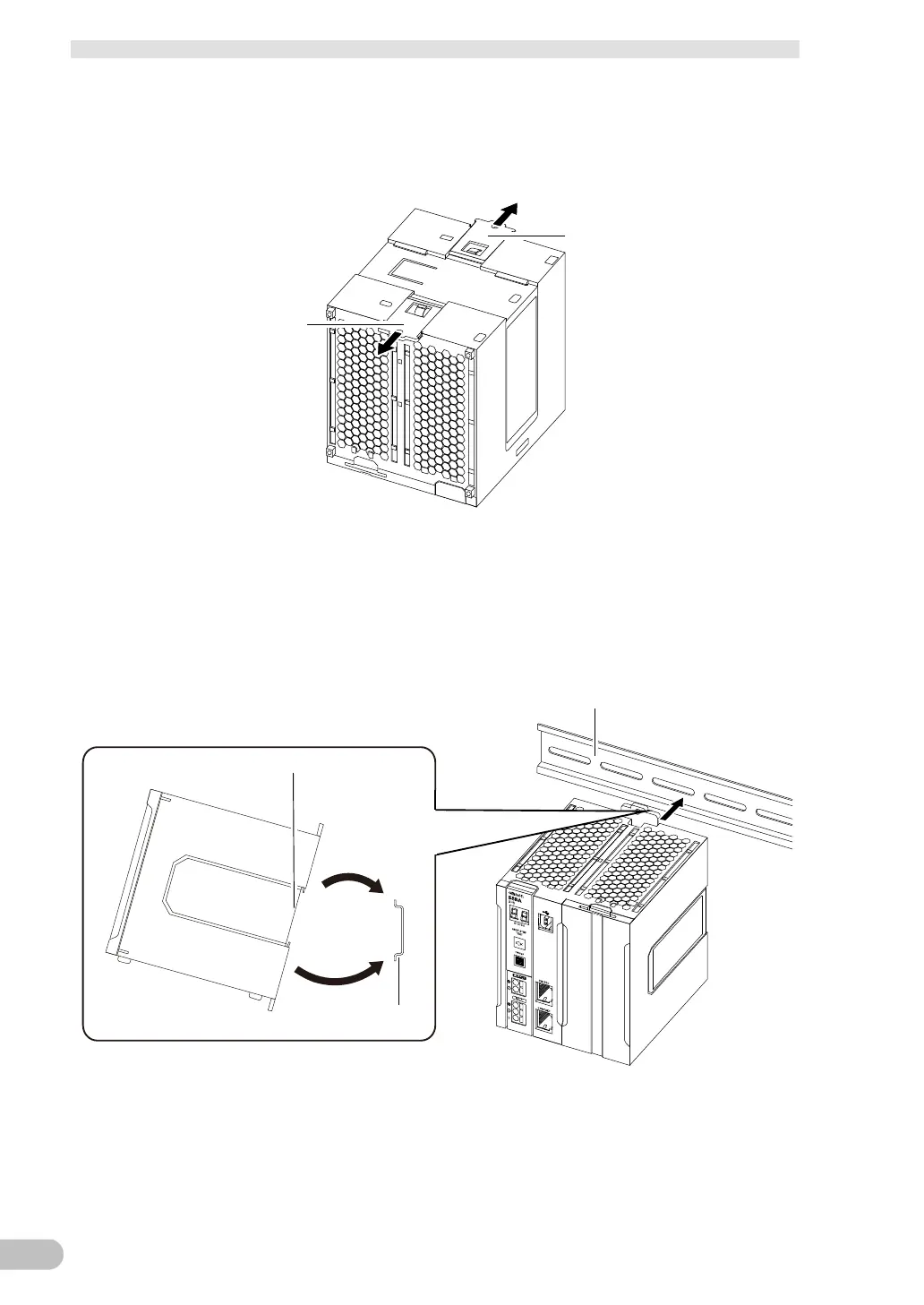

1. Open the “DIN rail mounting hooks” in the back of the UPS.
DIN rail mounting hooks
DIN rail mounting hooks
2. Hook the “DIN rail mounting groove” in the back of the UPS onto the DIN rail. Put a
hook on the groove on one end (①), and put the other hook on the groove on the other
end (②).
①
②
DIN rail mounting groove
DINrail
DIN rail
