5-2 Replacing the battery
5 Maintenance and inspection
S8BA-24D24D□□□LF
81
5

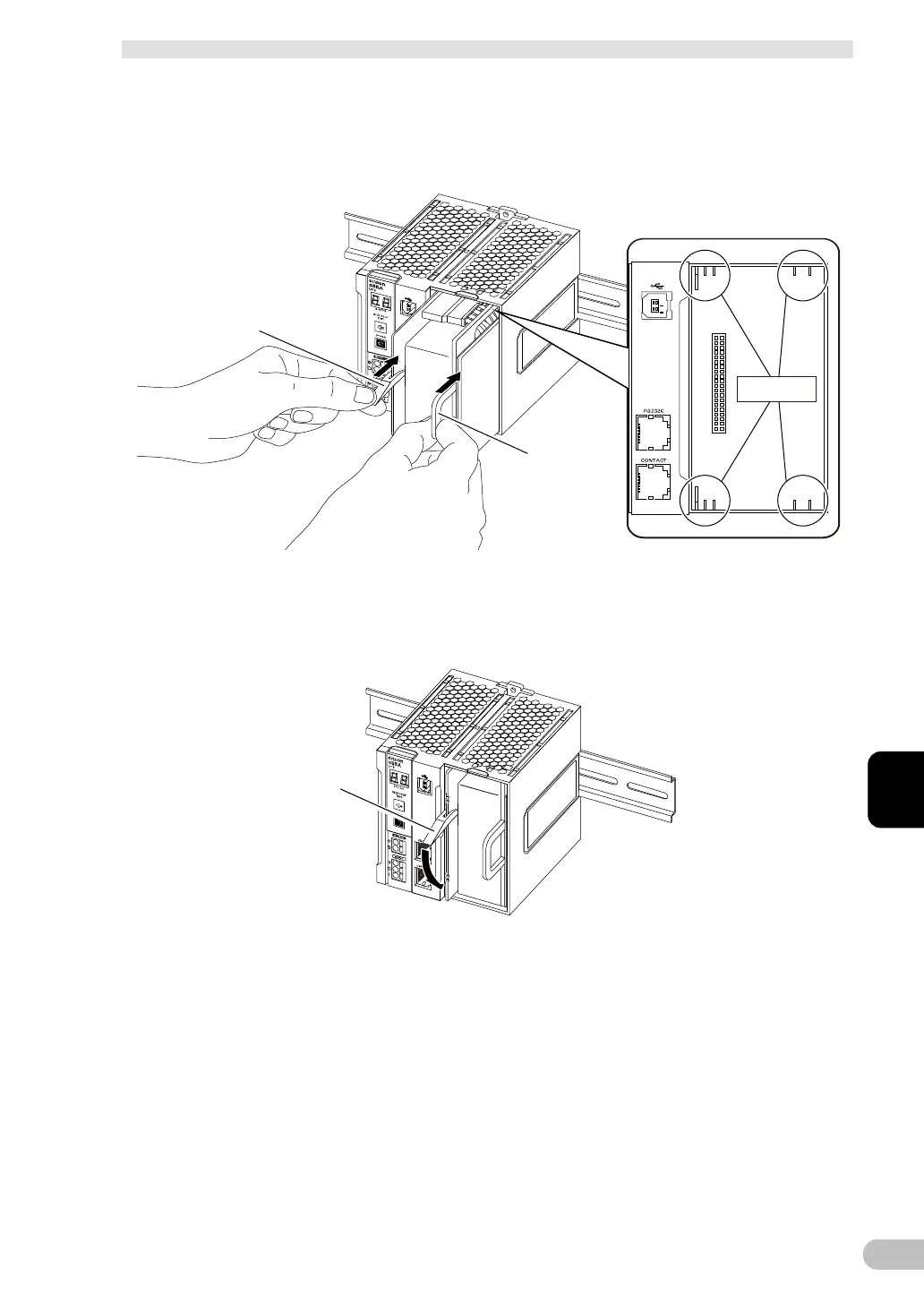

7. Mount the new battery and battery board by inserting them together into the back of the
unit. At that time, align the battery and the PCB with the grooves on the main body.
Pullout handle
Lever
Grooves
8. Push down the lever.
Lever
