Omron SMARTSTEP A Series - 2-2 External and Mounted Dimensions; 2-2-1 Servo Drivers

Chapter 2
2-6
Standard Models and Specifications
2-2 External and Mounted Dimensions
2-2-1 Servo Drivers
■ Single-phase 100 V AC: R7D-APA3L/-APA5L/-AP01L/-AP02L (30 W to 200 W)
Single-phase 200 V AC: R7D-APA3H/-APA5H/-AP01H/-AP02H (30 W to 200 W)
● Wall Mounting
● Front Panel Mounting (Using Mounting Brackets)

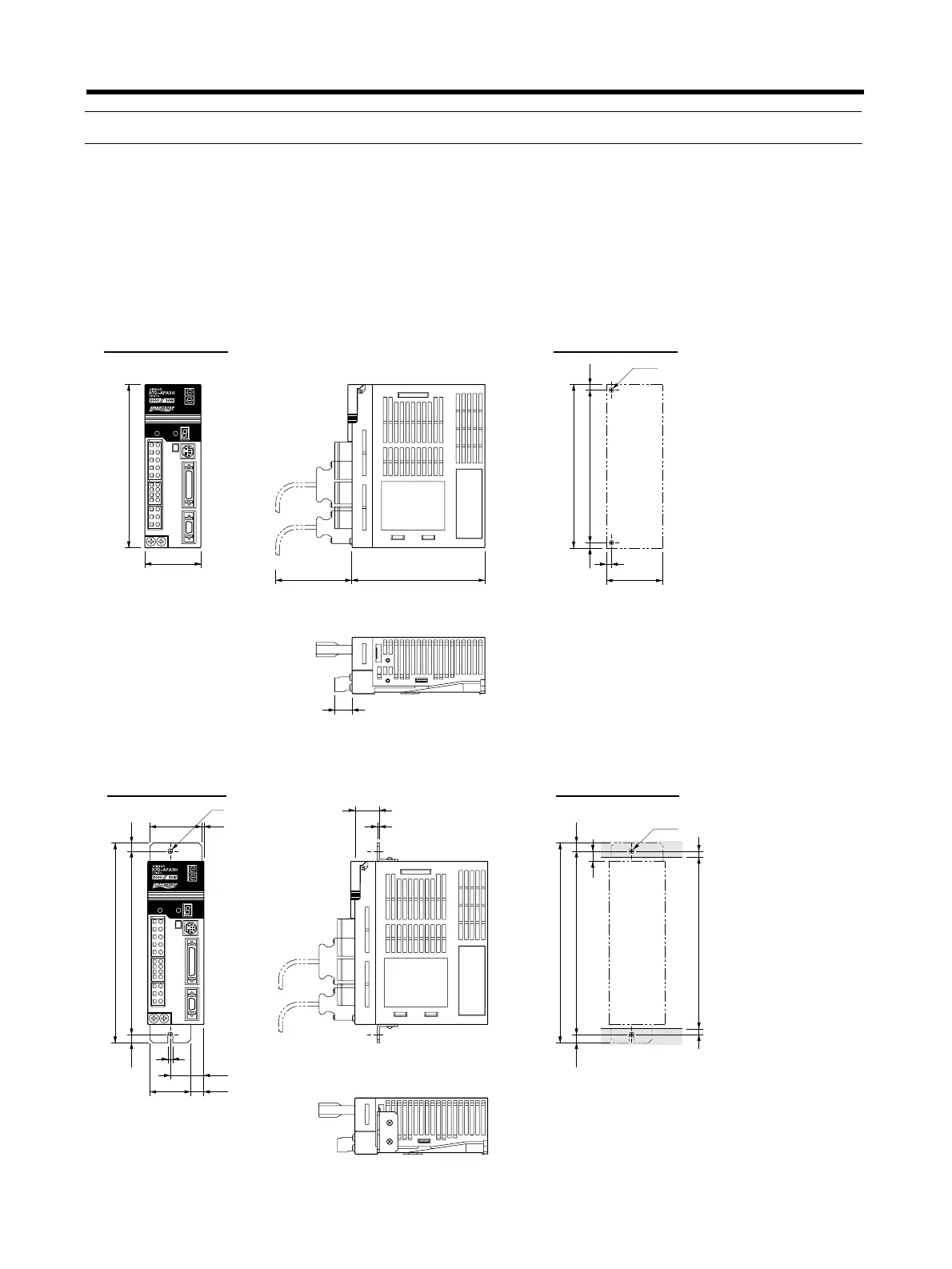

External dimensions
Mounted dimensions
55
160
(75) 130
Two, M4
(5)
5
5.5
160
55
149.5±0.5
17
External dimensions
Mounted dimensions
180 195
7.5(7.5)
180±0.5
195
7.5(7.5)
5 dia. 24.5
2
Two, M4
(168)
10
52
66
1.5
5
11.542
32.5
