Using Protocol Macros Section 5-4

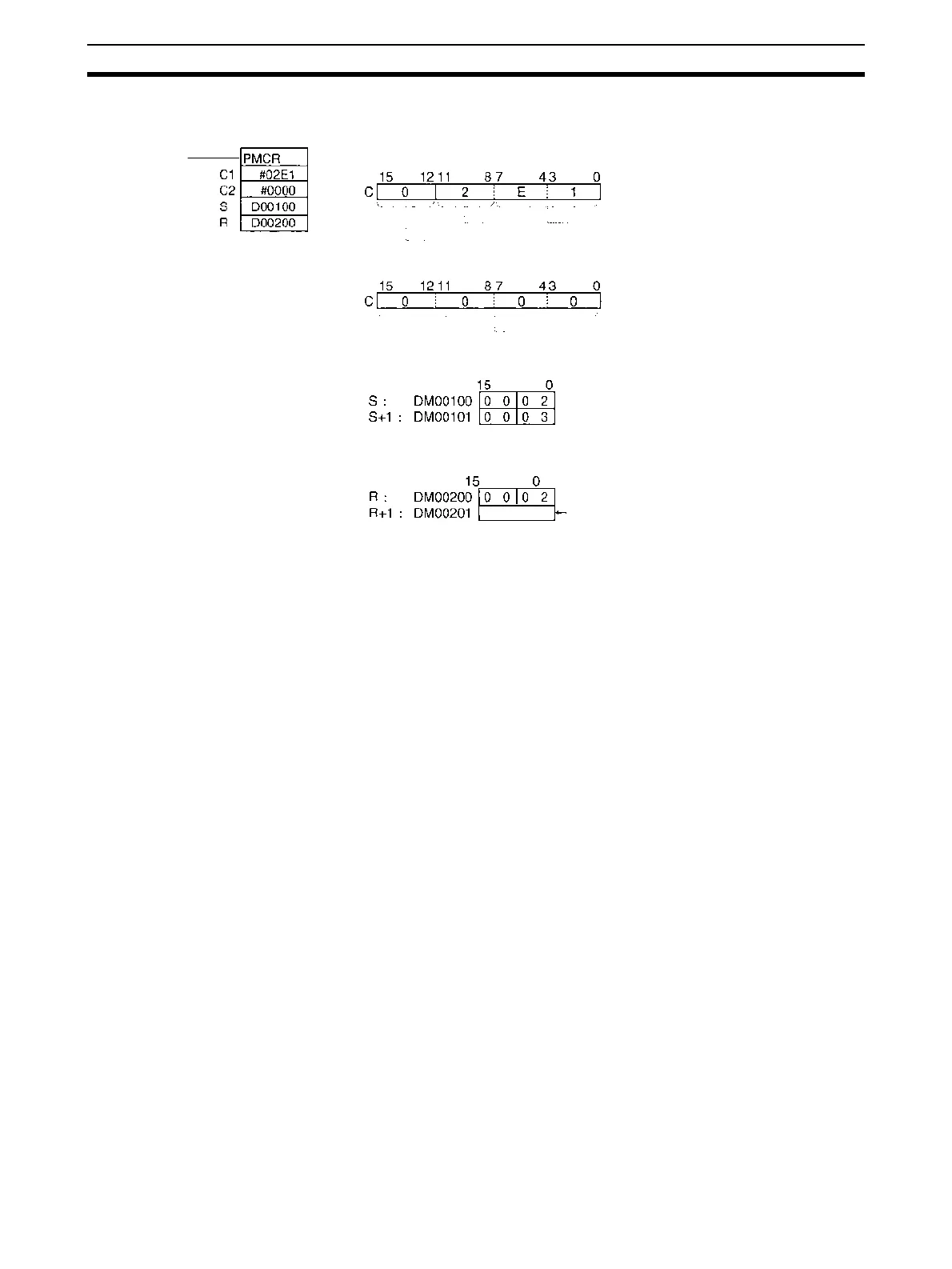

Operand Settings for the
PMCR(260) Instruction
Reading the present value of E5@K Unit No. 03 and storing it in DM00201
C1: Control data
0: Logical port 0
E1: Destination unit address
C2: Control data
0000: Sequence No. 000
S: First send data word
R: First receive data storage word
Number of receive data words = 2
Present value is stored.
(4-digit BCD)
Number of send data words = 2
Unit No. = 03
2: Port 2
Present value
