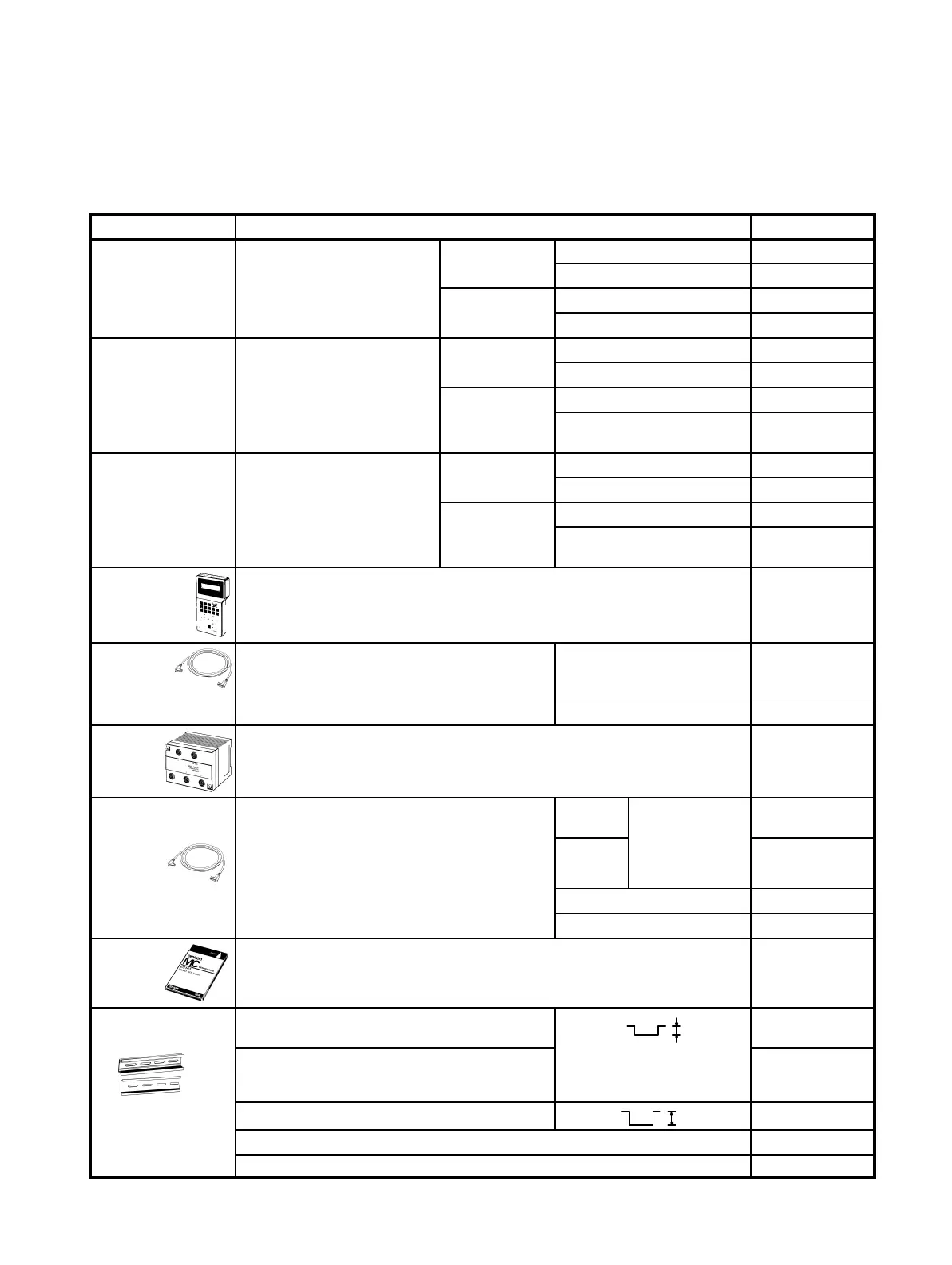

Appendix A
Standard Models
Name Specifications Model number
SP10 PC 6 inputs (DC; one common) 100 to 240 VAC Relay outputs SP10-DR-A
4 outputs Transistor outputs SP10-DT-A
(2 commons, 2 pts each) 24 VDC Relay outputs SP10-DR-D
Transistor outputs SP10-DT-D
SP16 PC 10 inputs 100 to 240 VAC Relay outputs SP16-DR-A
(DC; one common, 2 pts; Transistor outputs SP16-DT-A
one common, 8 pts) 24 VDC Relay outputs SP16-DR-D
6 outputs
(3 commons, 2 pts each)
Transistor outputs SP16-DT-D
SP20 PC 12 inputs 100 to 240 VAC Relay outputs SP20-DR-A
(DC; 2 commons, 2 pts each; Transistor outputs SP20-DT-A
one common, 8 pts) 24 VDC Relay outputs SP20-DR-D
8 outputs
(4 commons, 2 pts each)
Transistor outputs SP20-DT-D
Programming
Console
Vertical, hand-held with backlit LCD display. Compatible with Memory Cards.
Memory Card and Connecting Cable sold separately (see below). Usable only
with SP-series PCs.
SP10-PRO01-V1
Programming
Console
Connecting Cable
Connect Programming Console to CPU or to
Link Adapter. Same as 2-m and 4-m Link
Adapter Connecting Cables.*
2-m cable SP10-CN221
4-m cable SP10-CN421
Link
Adapter
Used to link up to 4 SP-series CPUs. Cables sold separately (see below). SP10-AL001
Link Adapter
Connecting Cable
Connect the CPUs and Link Adapter.* 20-cm
cable
Do not connect
to Programming
SP10-CN211
1-m
cable
Console. SP10-CN121
2-m cable SP10-CN221
4-m cable SP10-CN421
Memory Card 16-Kbyte SRAM cards (battery built in). Battery will last 5 years from when it is
mounted to the Memory Card.
HMC-ES141
Mounting
Accessories
50-cm DIN Track
7.3 mmDepth
PFP-50N
1-m DIN Track PFP-100N
1-m DIN Track
16.0 mmDepth
PFP-100N2
End Plate PFP-M
Spacer PFP-S
