12

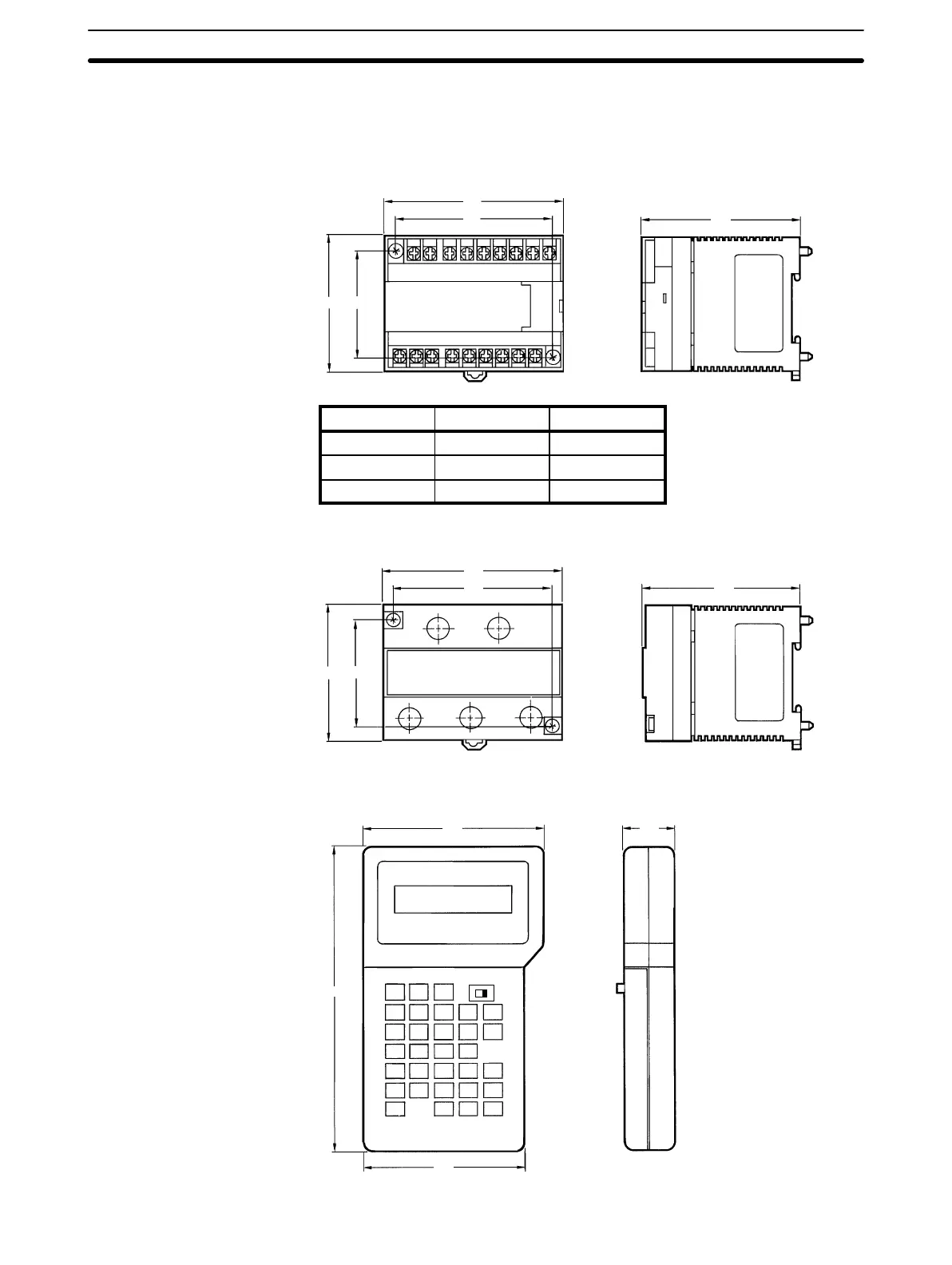

2-1 Dimensions
This section gives mounting dimensions. All dimensions are in millimeters.
SP10-D_-_, SP16-D_-_, SP20-D_-_
A
B
68 53
81
PC model Dimension A Dimension B
SP10-D_-_
92 81
SP16-D_-_
135 124
SP20-D_-_
160 149
SP10-AL001
92
81
68 53
81
SP10-PRO01-V1
91
155
81
25
CPUs
Link Adapter
Programming Console
Dimensions Section 2-1
